Plan rear-side access
Confirm the bracket, locknut, connector and future removal path from the cable side.
Item NO.:
330705-02-18-10-02-00Order(MOQ):
1Goods Stock:
27Payment:
T/TLead Time：
In stockWeight:
0.1KGDimension:
20.4x22.2x3.7cmDescription:
PROXIMITY PROBESPrice:
AskSend the complete nameplate, installed system context, quantity and destination. We support new original, discontinued and difficult-to-source industrial parts.
Manager: JimPei
Exact-model engineering context

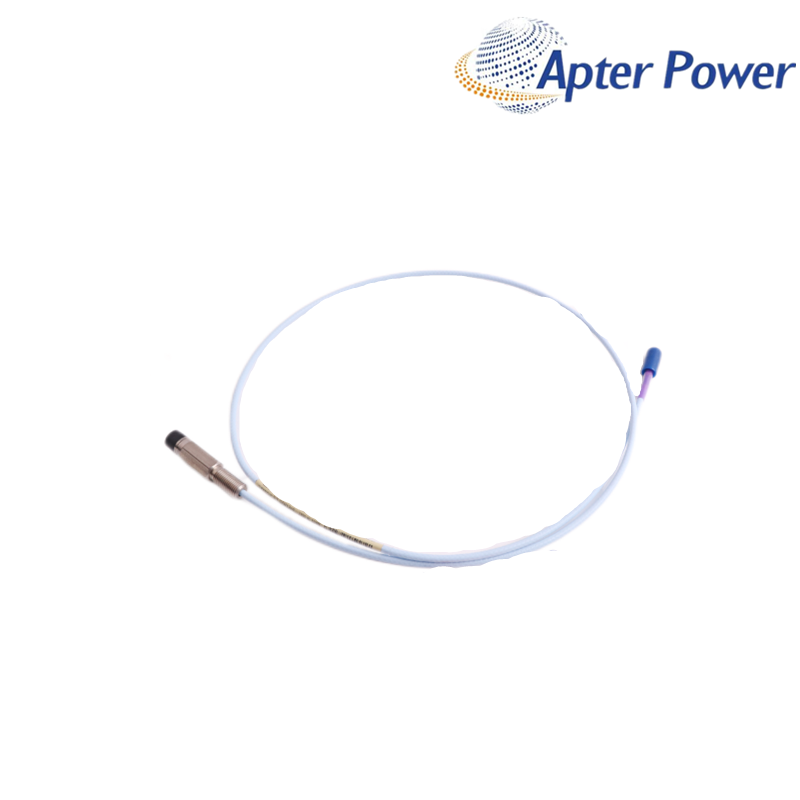

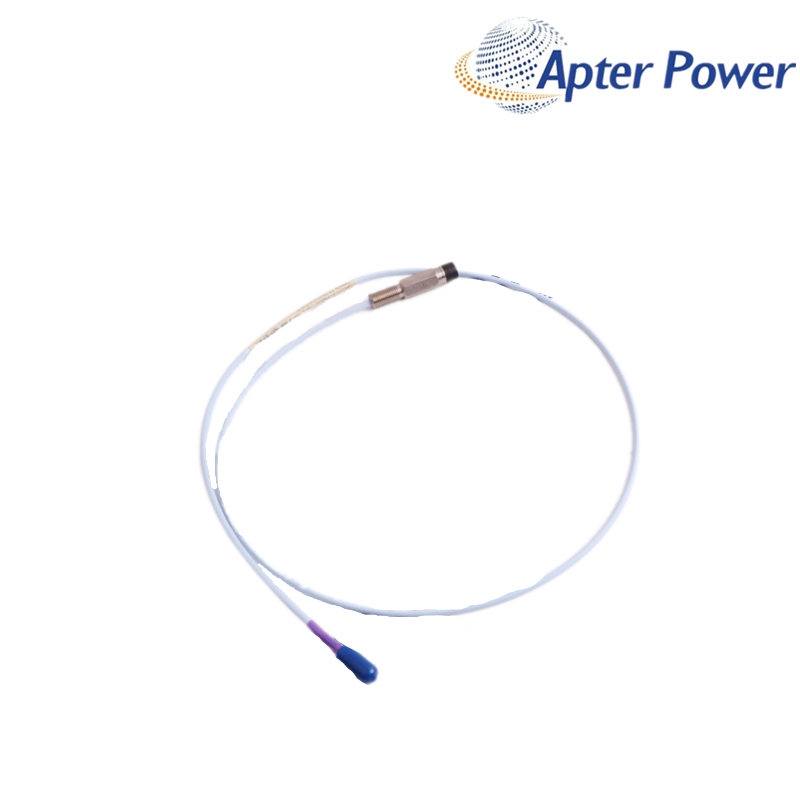

Reverse mounting changes how the probe is installed and removed, so access from the cable side must be planned before the outage. The stocked 330705-02-18-10-02-00 configuration uses a 3/8-24 thread and a one-metre standard cable.
The 02 and 18 geometry selections define a 0.2-inch unthreaded length and a 1.8-inch case. Confirm the bracket, case reach, locknut access, target clearance and removal path rather than treating it as a front-mount probe with the same tip size.
Reverse-mount probes are not available with armor, FluidLoc cable or a connector protector in the official ordering structure. Route and protect the standard lead accordingly, then complete the five- or nine-metre transducer chain with supported components.
Selection and installation decisions
Confirm the bracket, locknut, connector and future removal path from the cable side.
Check 0.2-inch unthreaded length and 1.8-inch case against the installed drawing.
Reverse-mount construction has no armor, FluidLoc or connector-protector option; the route must provide protection.
Official configuration and supply terms
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 11 mm proximity transducer system |
| Mounting style | Reverse mount |
| Probe thread | 3/8-24 UNF |
| Unthreaded length | 02 - 0.2 in |
| Overall case length | 18 - 1.8 in |
| Total probe length | 10 - 1.0 m (3.3 ft) |
| Connector and cable | 02 - miniature coaxial ClickLoc connector, standard cable |
| Agency approval selection | 00 - not required |
| System scale factor / range | 3.94 V/mm (100 mV/mil); 4.0 mm (160 mils) under documented conditions |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Model-relevant engineering themes
Reverse mounting needs cable-side access for locknut adjustment, connector work and later removal. Confirm the bracket and service envelope before installation.
Because the official reverse-mount option excludes armor, FluidLoc and connector protectors, route the standard lead away from abrasion, crushing, fluid paths and excessive heat.
Stop and release boundary
Do not substitute a front-mount probe or improvise an armored reverse-mount assembly. Stop if the bracket, rear access, cable route or complete system length cannot be matched to the official configuration.
Supported user task
Used within supported 3300 XL 11 mm systems where rear-side access and bracket geometry call for a reverse-mount probe in a longer-range vibration or displacement measurement chain.
Buyer, installer and engineer situations
Provide cable-side access for the locknut, ClickLoc connector and future probe removal. Verify that the bracket and nearby hardware do not block adjustment or service.
No. The official reverse-mount probe structure does not offer armor. If the route cannot protect the standard lead, stop and revise the installation rather than adding an unverified assembly.
Compare the unthreaded length and overall case with the bracket thickness, locknut position and target reach. They are mechanical acceptance dimensions, not only catalog identifiers.
Select the supported cable that makes the probe lead and extension equal the chosen five- or nine-metre Proximitor Sensor. Record all three labels before startup.
Bracket movement, changed probe gap, target misalignment, cable damage or an incompletely seated ClickLoc connector can shift the signal. Correct the mechanical path before changing monitor settings.
Provide the full model, bracket and target drawings, rear-access photographs, required total system length, route-protection plan, quantity and destination.
