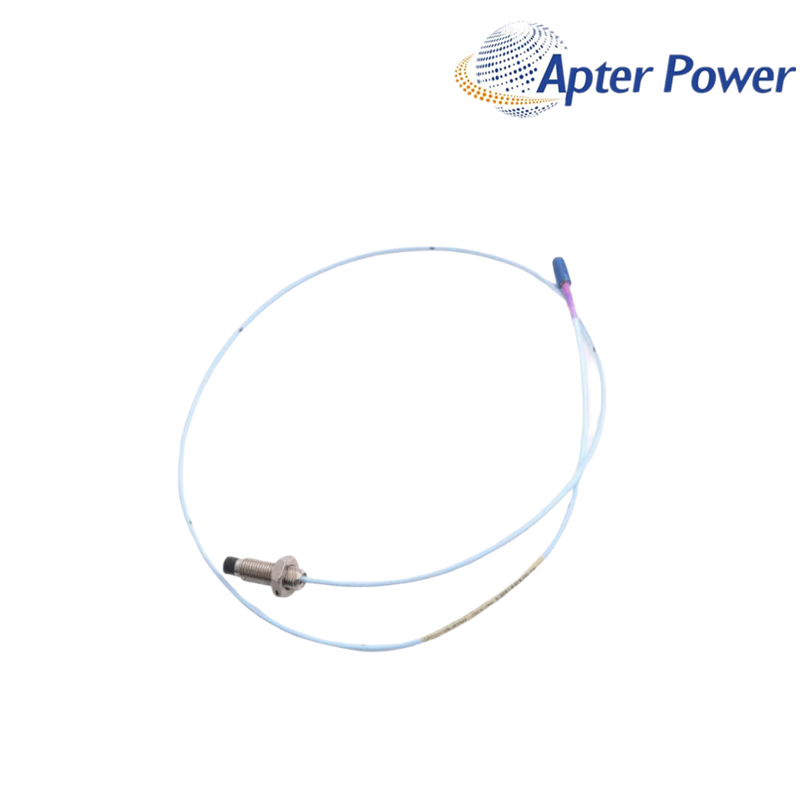

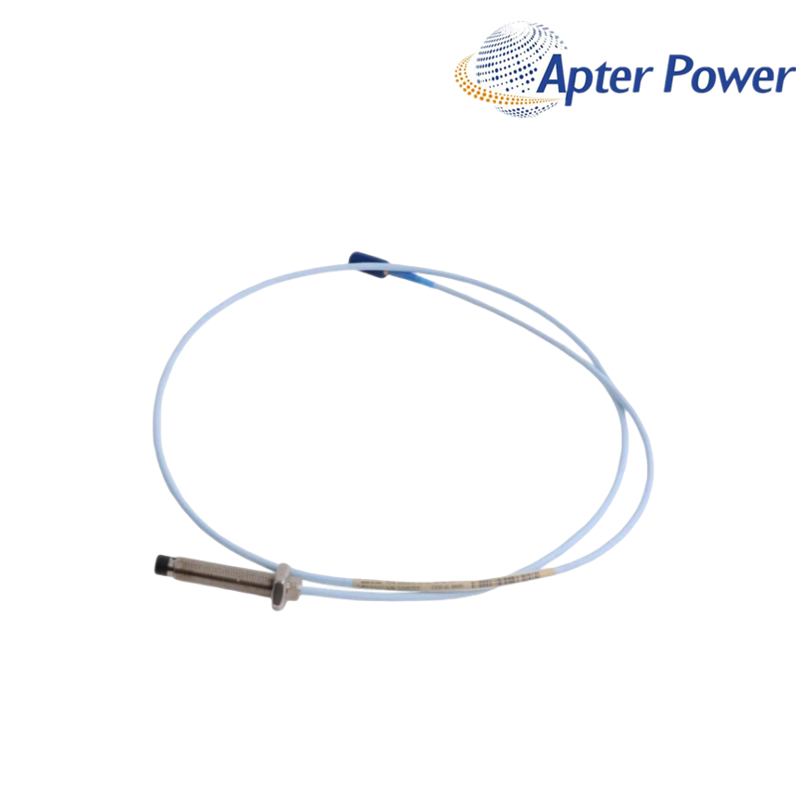

M14 × 1.5 unarmored probe
Item NO.:
330703-000-100-10-02Order(MOQ):
1Goods Stock:
22Payment:
T/TLead Time：
In stockWeight:
1.3KGDimension:
7.6x5.1x35.6cmDescription:
CABLEPrice:
Ask
A fully threaded 100 mm case with a 1.0 m standard ClickLoc cable for a matched 3300 XL 11 mm measurement system.
0 mm unthreaded · 100 mm case · 1.0 m lead · standard cable · approval option 00
330703-000-100-10-02-00 is a 3300 XL 11 mm Proximity Probe in the 3300 XL 11 mm Proximity Transducer System. A fully threaded 100 mm case with a 1.0 m standard ClickLoc cable for a matched 3300 XL 11 mm measurement system.
Its documented configuration is 0 mm unthreaded · 100 mm case · 1.0 m lead · standard cable · approval option 00. These order-code choices define how the component fits the signal path and should be reviewed together rather than by appearance alone.
For maintenance or procurement, 330703-000-100-10-02-00 should be matched to the installed system role, connection architecture and complete manufacturer label. ApterPLC can review those details before quotation.
The selection identity for 330703-000-100-10-02-00 is built from the full code and its verified system role.
M14 × 1.5 unarmored probe
0 mm unthreaded
100 mm case
1.0 m lead
Standard cable
Approval not required
Set the documented 11 mm probe gap at the monitored surface.
Carry the proximity signal through the 1.0 m probe lead.
Complete the required 5.0 m or 9.0 m electrical length with the correct cable and Proximitor Sensor.
| Probe thread | M14 × 1.5 |
|---|---|
| Cable armor | Without armor |
| Unthreaded length | 0 mm |
| Overall case length | 100 mm |
| Total lead length | 1.0 m |
| Connector / cable | Miniature coaxial ClickLoc; standard cable |
| Family linear range | 4.0 mm (160 mil) |
| Family sensitivity | 3.94 V/mm (100 mV/mil) nominal |
| Minimum bend radius | 25.4 mm |
| Approval option | 00 — not required |
| Payment | T/T |
| Goods Stock | 22 |
| Weight | 1.3KG |
| Dimension | 7.6x5.1x35.6cm |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
The official 330703 syntax ends with an approval field, and 00 identifies the no-approval-required execution. Keeping that suffix prevents a shortened code from being mistaken for a complete order number.
The probe has 0 mm of unthreaded length and a 100 mm case. Confirm that the machine mount can accept that fully threaded reach without changing the intended probe position.
The complete 11 mm chain must match either its documented 5.0 m or 9.0 m total system length. Select the extension cable and sensor together rather than choosing by connector appearance.
No approval package is encoded by the final 00 option. If the installation requires multiple approvals, use the corresponding approved order-code option and supporting certificates.
Start with the 11 mm family, total electrical length and matched Proximitor Sensor. A mixed family or length changes the measurement chain even when the probe mounts correctly.
Include the complete six-segment code, installed extension-cable length and Proximitor Sensor label. That information ties the 100 mm probe geometry to the correct electrical system.
Complete labels are compared with the official order-code structure.
Connected probes, cables, I/O and monitoring roles are reviewed together.
Logistics and project timing are confirmed with the commercial offer.
Coverage begins on the shipment date unless the confirmed quotation states otherwise. Scope and available remedy follow the confirmed quotation and sales agreement.
Keep the full 330703-000-100-10-02-00 label and order reference.
Add connector, mounting and associated signal-path photos.
Describe the observed symptom and operating context clearly.
Baker Hughes 3300 XL 11 mm Proximity Transducer System Datasheet 146256 is the official family document used to verify this product identity, order-code fields and applicable technical context.
Document access: Request the verified manufacturer datasheet for the exact model offered.
