Use a direct five-metre chain
Pair the supported five-metre probe directly with the five-metre Proximitor Sensor when the official architecture calls for it.
Item NO.:
330703-000-060-50-12-00Order(MOQ):
1Goods Stock:
33Payment:
T/TLead Time：
In stockWeight:
0.24KGDimension:
20x20x2cmDescription:
PROXIMITY TRANSDUCER SYSTEMPrice:
AskSend the complete nameplate, installed system context, quantity and destination. We support new original, discontinued and difficult-to-source industrial parts.
Manager: JimPei
Exact-model engineering context

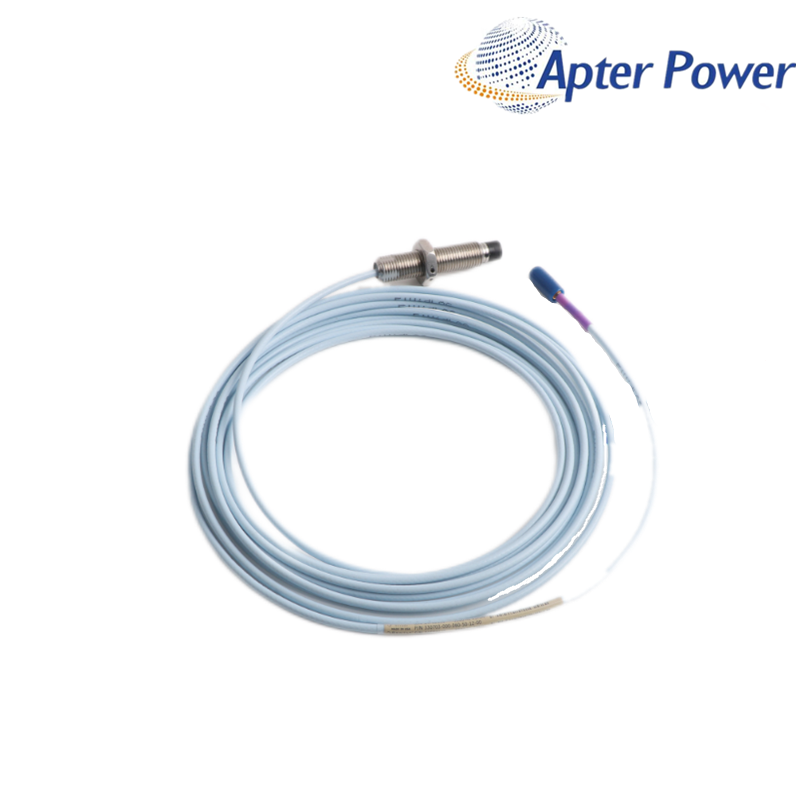

A five-metre probe lead can remove the extension-cable joint from a documented five-metre measurement chain. 330703-000-060-50-12-00 combines that lead length with FluidLoc cable for routes where internal fluid migration is a recognized concern.
The probe body remains an M14 x 1.5 selection with zero unthreaded length and a 60 mm overall case. Option 12 uses a miniature ClickLoc connector without a factory-installed protector, so mechanical fit and connector-environment protection remain independent design tasks.
Use the complete chain architecture shown in the official instructions. A five-metre lead is not permission to add another extension cable to gain reach; re-plan the route or choose the official component lengths that match the selected Proximitor Sensor.
Selection and installation decisions
Pair the supported five-metre probe directly with the five-metre Proximitor Sensor when the official architecture calls for it.
FluidLoc addresses migration through the cable interior; every component still keeps its own temperature and routing limits.
Option 12 does not include a factory-installed protector, so keep the joint clean, unloaded and appropriately protected.
Official configuration and supply terms
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 11 mm proximity transducer system |
| Probe thread | M14 x 1.5 |
| Unthreaded length | 000 - 0 mm |
| Overall case length | 060 - 60 mm |
| Total probe length | 50 - 5.0 m (16.4 ft) |
| Connector and cable | 12 - miniature coaxial ClickLoc connector, FluidLoc cable |
| Agency approval selection | 00 - not required |
| System scale factor | 3.94 V/mm (100 mV/mil) under documented system conditions |
| Linear range | 4.0 mm (160 mils) under documented system conditions |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Model-relevant engineering themes
FluidLoc helps limit oil or liquid migration through the cable interior, but the probe, cable, connector and Proximitor Sensor each retain separate temperature limits.
Plan the five-metre route without splicing, tight bends or connector loading, and prove the 60 mm case geometry from the machine drawing.
Stop and release boundary
Do not add an extension cable simply because the route is longer than five metres. Select an official complete system length and protect the unprotected FluidLoc ClickLoc joint at its actual location.
Supported user task
This configuration supports documented 3300 XL 11 mm position and vibration measurement tasks where the M14 geometry, a direct five-metre cable route and FluidLoc construction suit the machine environment.
Buyer, installer and engineer situations
Yes, when the official system architecture supports the five-metre probe lead as the complete transducer-chain length. Confirm the exact sensor label and do not insert another extension cable.
It helps prevent oil or other liquids from migrating through the cable interior. It does not make the connector waterproof or remove temperature, bend-radius and mechanical-protection requirements.
Option 12 has no factory-installed connector protector. Keep the surfaces clean and fully seated, avoid cable load at the joint and apply the manufacturer-supported environmental protection method.
Do not splice the lead or add an unplanned extension. Re-route the cable or select the official probe, cable and Proximitor combination for the required total length.
The M14 port, zero unthreaded length, 60 mm case reach, target clearance, local temperature and connector protection may still differ. Check each against the drawing and site conditions.
Send the full label, sensor label, mounting drawing, target material, route length, fluid and temperature exposure, connector-protection requirement, quantity and destination.
