Carry the complete identity
Keep the -CN suffix on every commercial and receiving document and photograph the delivered nameplate.
Item NO.:
330703-000-060-10-02-CNOrder(MOQ):
1Goods Stock:
33Payment:
T/TLead Time：
In stockWeight:
0.1KGDimension:
117x2.5x2cmDescription:

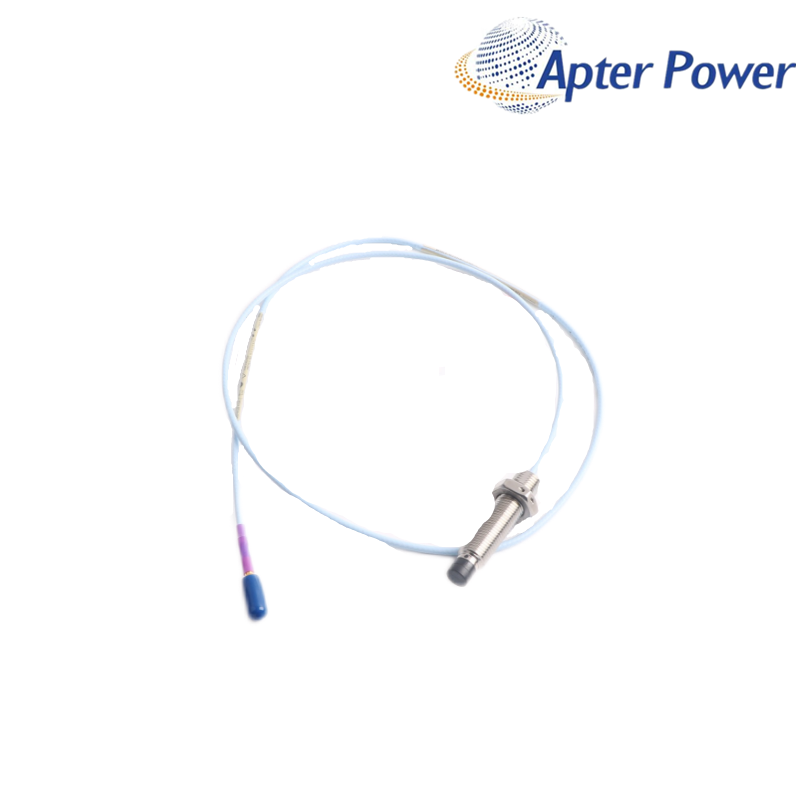

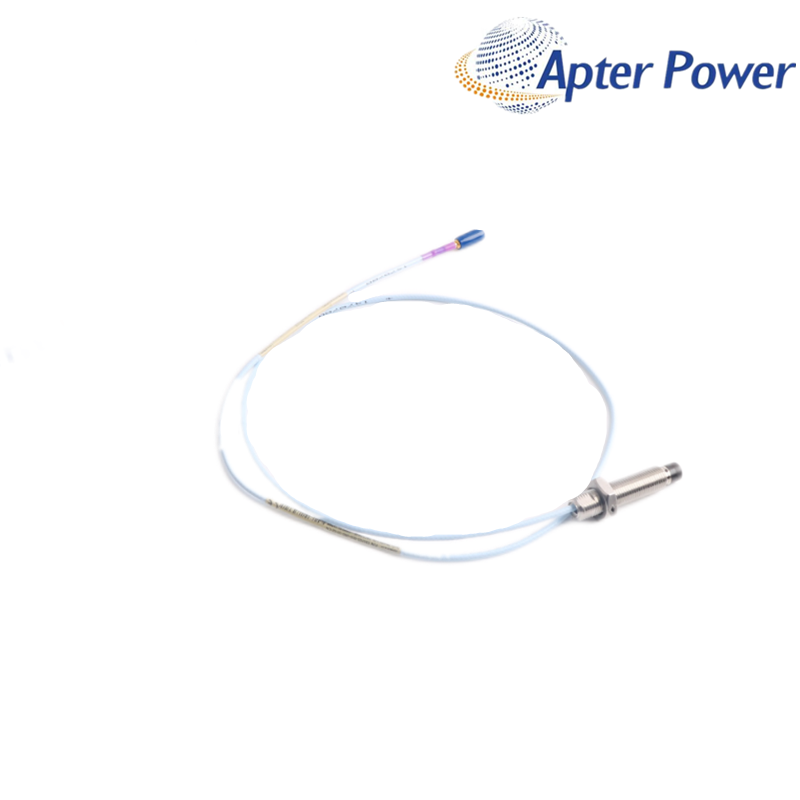

PROXIMITY PROBESPrice:
AskSend the complete nameplate, installed system context, quantity and destination. We support new original, discontinued and difficult-to-source industrial parts.
Manager: JimPei
Exact-model engineering context
Country-specific marking changes the receiving check, not the shared 11 mm measurement principle. The complete identity 330703-000-060-10-02-CN must stay on the RFQ, purchase order, packing list and acceptance record.
Mechanically, the configuration uses an M14 x 1.5 body with zero unthreaded length and a 60 mm overall case. Electrically, its one-metre standard-cable lead must be paired with the supported extension cable and Proximitor Sensor for the required system total.
Treat the -CN suffix as an identity and marking control only; do not describe it as a different electrical version or add unverified parameters. Acceptance still requires the machine drawing, target, connector condition, complete chain labels and applicable official marking record.
Selection and installation decisions
Keep the -CN suffix on every commercial and receiving document and photograph the delivered nameplate.
Confirm the M14 x 1.5 port, zero unthreaded length, 60 mm case and required target clearance.
Use the probe and extension-cable labels to build the supported five- or nine-metre transducer system.
Official configuration and supply terms
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 11 mm proximity transducer system |
| Probe thread | M14 x 1.5 |
| Unthreaded length | 000 - 0 mm |
| Overall case length | 060 - 60 mm |
| Total probe length | 10 - 1.0 m (3.3 ft) |
| Connector and cable | 02 - miniature coaxial ClickLoc connector, standard cable |
| Country-specific selection | CN - verify the delivered marking and applicable official record |
| System scale factor | 3.94 V/mm (100 mV/mil) under the documented system conditions |
| Linear range | 4.0 mm (160 mils) under the documented system conditions |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Model-relevant engineering themes
The suffix adds a delivered-label and official-record check. Site classification, enclosure, wiring and installation conditions still control acceptance.
Confirm supported probe, extension cable and Proximitor Sensor from complete labels; connector shape and nominal length alone do not prove a matched system.
Stop and release boundary
Release the item only when the full -CN identity, official marking record, 60 mm mechanical fit and required transducer-chain length agree. No unsupported electrical difference is assigned to the suffix.
Supported user task
The shared 3300 XL 11 mm system can support longer-range position, vibration, differential-expansion, rod-position, tachometer, zero-speed and Keyphasor tasks when the exact installation and complete chain are suitable.
Buyer, installer and engineer situations
Use the complete official code and state that CN is the country-specific marking selection. Request the delivered nameplate and applicable official record while keeping the shared 11 mm performance data unchanged.
No. Check zero unthreaded length, the 60 mm case, permitted engagement, target clearance, lead length and cable option against the machine drawing and existing labels.
Choose the supported extension cable that makes the one-metre probe lead equal the selected five- or nine-metre Proximitor Sensor total. Do not splice the lead or add an arbitrary cable.
Quarantine it if the full suffix, marking, cable option or physical condition differs from the order, or if the required official marking record cannot be matched. Dimensional fit alone is not complete acceptance.
Inspect the target, gap, total system length, ClickLoc seating, cable damage, supply and field wiring. Resolve those causes before changing monitor configuration.
Provide all three component labels, the mounting drawing, target material, system length, required marking, route conditions, quantity, destination and clear installation photographs.
ApterPLC supply capability
New original supply: Quality-focused sourcing and exact-model checks help protect the purchase decision.
Current, discontinued and scarce products: Our supply network supports routine and difficult-to-source automation parts.
Responsive after-sales service: We assist with delivery coordination, receipt questions and post-purchase technical communication.
Buyer search terminology
Search note: Common spelling, spacing and separator variants are listed for discovery only. Use the exact Product Model above for quotation and ordering.
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names/product images, trademarks, brands and logos used on this website are the property of their respective owners. Product descriptions, depictions or sales with these names, images, trademarks, brands and logos are for identification purposes only and do not imply any affiliation or authorization to any rights holder.
The official manufacturer publication was reduced only by removing pages unrelated to this exact model. The cover, identity, scope, required preceding context and useful model pages remain in their original order as complete pages.
Source: Bently Nevada 146256 Rev. T
Retained official pages: 1, 2, 3, 4, 5, 6, 7, 10, 11, 23, 26
