Prove the 60 mm reach
Check zero unthreaded length, overall case length, available thread engagement and target clearance on the machine drawing.
Item NO.:
330703-000-060-10-02-00Order(MOQ):
1Goods Stock:
32Payment:
T/TLead Time：
In stockWeight:
0.1KGDimension:
2.5x2x124cmDescription:
TRANSDUCER SYSTEMPrice:
AskSend the complete nameplate, installed system context, quantity and destination. We support new original, discontinued and difficult-to-source industrial parts.
Manager: JimPei
Exact-model engineering context

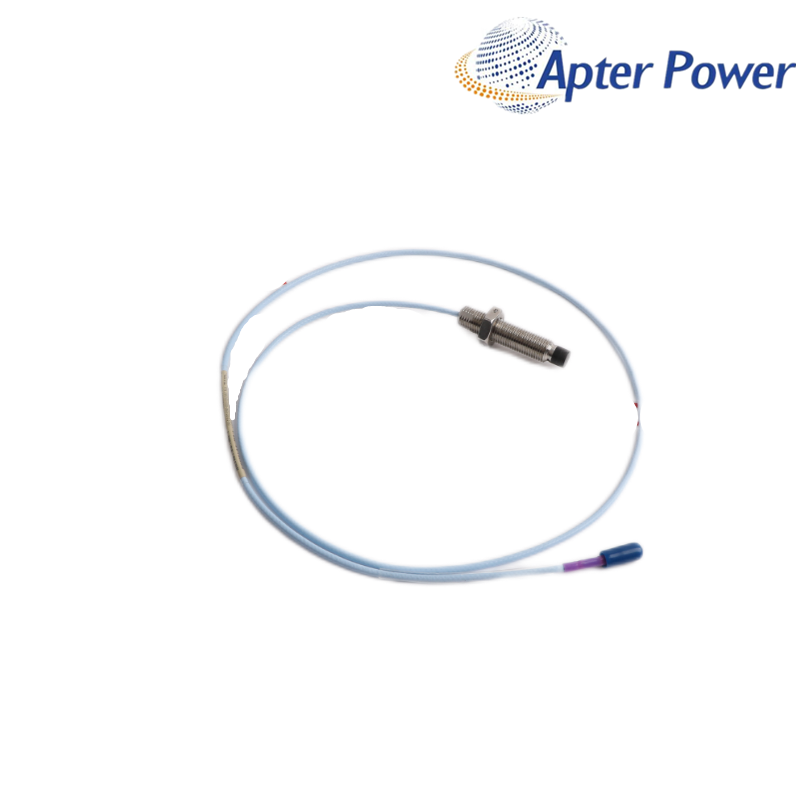

A compact metric installation still needs enough probe-case reach to place the tip correctly over the target. 330703-000-060-10-02-00 combines an M14 x 1.5 thread, zero unthreaded length and a 60 mm overall case for that mechanical decision.
Its one-metre lead uses standard cable and a miniature coaxial ClickLoc connector without a factory-installed connector protector. The probe is therefore only one part of the measurement chain; the selected extension cable must complete the five- or nine-metre total required by the Proximitor Sensor.
Before release, compare the turbine or compressor drawing with the case reach, thread engagement and target clearance. Then verify the target material, route protection, connector seating and all three transducer labels before the channel is returned to service.
Selection and installation decisions
Check zero unthreaded length, overall case length, available thread engagement and target clearance on the machine drawing.
Use a supported extension cable so the one-metre probe lead matches the selected five- or nine-metre Proximitor Sensor.
Option 02 has standard cable and no factory-installed protector; plan clean assembly and suitable environmental protection.
Official configuration and supply terms
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 11 mm proximity transducer system |
| Probe thread | M14 x 1.5 |
| Unthreaded length | 000 - 0 mm |
| Overall case length | 060 - 60 mm |
| Total probe length | 10 - 1.0 m (3.3 ft) |
| Connector and cable | 02 - miniature coaxial ClickLoc connector, standard cable |
| Agency approval selection | 00 - not required |
| System scale factor | 3.94 V/mm (100 mV/mil) under the documented system conditions |
| Linear range | 4.0 mm (160 mils) under the documented system conditions |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Model-relevant engineering themes
Confirm the M14 port, permitted thread engagement, 60 mm case reach, target clearance and extension-cable length before the outage.
If the gap voltage shifts after work, inspect target condition, probe gap, total chain length, ClickLoc seating, cable damage, supply and field wiring before changing monitor settings.
Stop and release boundary
Stop installation if the drawing cannot confirm tip position or if the probe lead and extension cable do not equal the Proximitor Sensor system length. Do not use monitor scaling to compensate for a mechanical or cable-length mismatch.
Supported user task
Within a correctly matched 3300 XL 11 mm system, this probe family supports longer-range vibration and displacement tasks such as axial position, differential expansion, rod position or drop, tachometer, zero-speed and Keyphasor measurements.
Buyer, installer and engineer situations
Compare the M14 x 1.5 port, zero unthreaded length, 60 mm case reach, permitted thread engagement and target clearance. Stop the order if the machine drawing does not establish the final tip position.
Only when the complete documented chain requires no additional length, which is not the normal five- or nine-metre arrangement. Select the supported extension cable that makes the probe lead and cable total match the sensor.
Option 02 does not include a factory-installed connector protector. Keep the ClickLoc surfaces clean and fully seated, then use the manufacturer-supported protection method required by the route and environment.
A changed probe gap, wrong target material, incorrect total cable length, incompletely seated connector, damaged cable or wiring fault can shift the output. Correct those causes before changing calibration or alarm settings.
Stop when the mechanical reach, target, total chain length, connector condition or component labels cannot be reconciled with the official system instructions. Record the mismatch instead of forcing the installation.
Send the full probe, extension-cable and Proximitor labels, mounting drawing, target material, required system length, connector-protection need, quantity and destination.
