Mounting interface
The integral M8 × 1 stud must match the prepared machine surface.
Item NO.:
330400-02-CNOrder(MOQ):
1Goods Stock:
14Payment:
T/TLead Time：
In stockWeight:
0.32KGDimension:
113x1.8x1.5cmDescription:
TRANSDUCERSPrice:
AskA 100 mV/g, three-wire piezoelectric accelerometer for machinery-casing acceleration measurements.

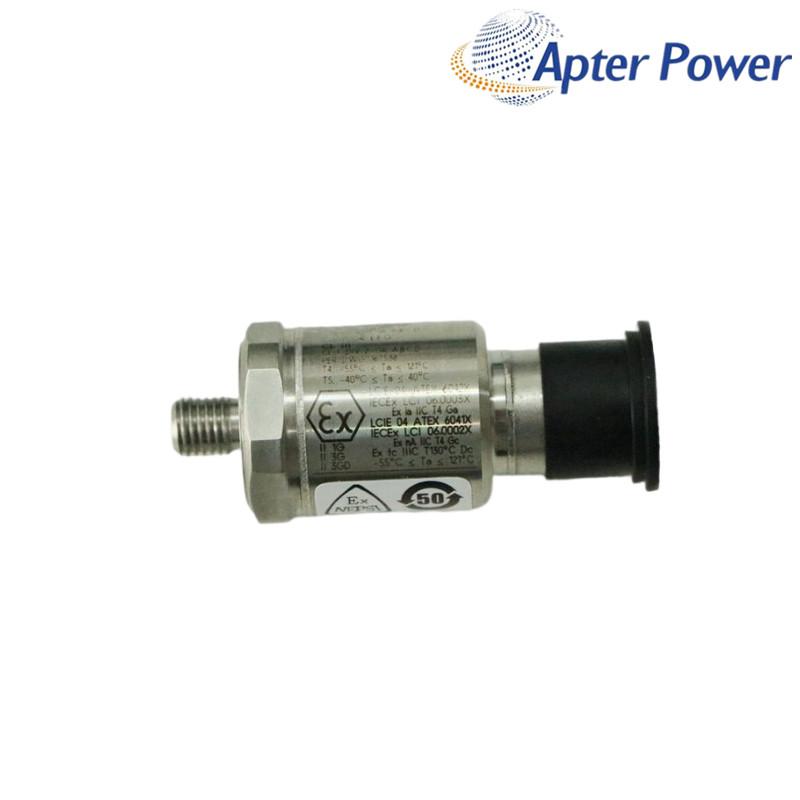

330400-02-CN belongs to the 330400 accelerometer family used for machinery-casing acceleration measurements. The 02 mounting option specifies an integral M8 × 1 stud.
The transducer uses a three-wire, -24 Vdc configuration and provides a nominal 100 mV/g sensitivity with a 10 Hz to 15 kHz amplitude response.
Installation quality depends on a flat, rigid mounting surface, correct stud engagement and a documented cable and monitor-input path.
The integral M8 × 1 stud must match the prepared machine surface.
Confirm the three-wire -24 Vdc monitor input and field wiring.
Review mounting resonance and the application band before comparing measurements.
| Manufacturer | Bently Nevada |
|---|---|
| Product family | 330400 accelerometer acceleration transducers |
| Measurement | Casing acceleration |
| Transducer type | Three-wire piezoelectric accelerometer |
| Mounting option | Integral M8 × 1 stud |
| Nominal sensitivity | 100 mV/g ±5% |
| Acceleration range | 50 g peak within 10 Hz to 15 kHz |
| Amplitude linearity | ±1% to 50 g peak |
| Broadband noise floor | 0.004 g rms, 10 Hz to 15 kHz |
| Frequency response | 10 Hz to 15 kHz ±3 dB; 30 Hz to 10 kHz ±10% |
| Transverse sensitivity | Less than 5% of axial |
| Mounted resonant frequency | Greater than 30 kHz |
| Input voltage | -24 ±0.5 Vdc |
| Bias current | 2 mA nominal |
| Output bias voltage | -8.5 ±0.5 Vdc |
| Grounding | Case isolated |
| Maximum field-cable length | 305 m (1000 ft) without signal degradation |
| Operating and storage temperature | -55°C to +121°C (-67°F to +250°F) |
| Shock survivability | 5000 g peak maximum |
| Relative humidity | 100% condensing, non-submerged; hermetically sealed case |
| Sensor ingress protection | Equivalent to IP68; cable excluded |
| Maximum use altitude | 2000 m above sea level |
| Case material | 316L stainless steel |
| Sensor dimensions | 23 mm diameter × 59 mm height including mounting stud |
| Mounting torque | 4.1 N·m (3.0 ft·lb) |
| Compliance context | Designed for API 670 accelerometer requirements |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Yes. The 330400 is intended for critical casing-acceleration measurements, including gear-mesh monitoring, when vibration is transmitted effectively to the mounting point.
Its integral stud is M8 × 1, so a 1/4-28 mounting point is not the same mechanical interface and needs the correct mounting solution.
Use a compatible three-wire input that provides -24 ±0.5 Vdc and supports the sensor’s 100 mV/g signal.
A compliant sensor can still under-report casing vibration when the mounting surface, stud torque or machine location does not transmit vibration effectively.
The sensor body is equivalent to IP68, but the cable is excluded; the connector and wiring need installation-specific protection.
Include the M8 × 1 mounting point, cable length and termination, monitor input, temperature range and a clear nameplate image.
Share the exact nameplate, mounting or route dimensions, connected component labels and approval documents. ApterPLC can then prepare a model-focused quotation without treating a similar connector or family name as proof of interchangeability.
ApterPLC provides a one-year warranty on this item, giving buyers a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names, images and trademarks are used for identification only.
This model-specific PDF brings together the relevant Baker Hughes ordering-code, technical and approval pages for 330400-02-CN. Use it to verify the 330400 accelerometer family, M8 × 1 integral mounting stud and CN country-specific approval option before ordering or replacement.
