Item NO.:
330196-05-30-10-CNOrder(MOQ):
1Goods Stock:
16Payment:
T/TLead Time：
In stockWeight:
0.14KGDimension:
2x18.7x12.8cmDescription:
SENSORPrice:

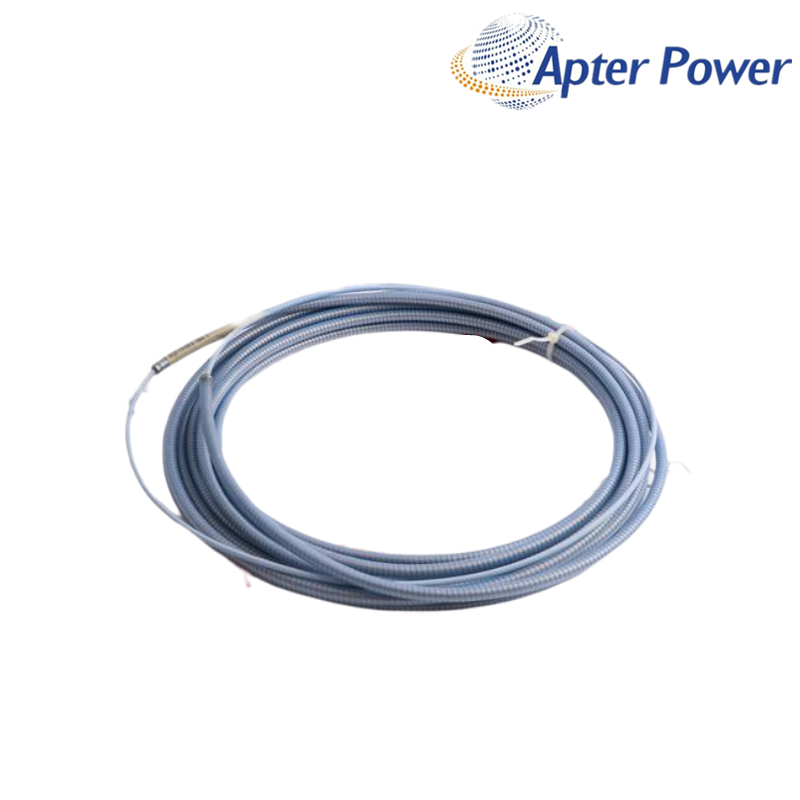

AskAn M10 x 1 extended-temperature reverse-mount probe with fixed 5 mm / 30 mm geometry and a 1.0 m lead.
330196-05-30-10-CN is the metric reverse-mount member of the 3300 XL 8 mm Extended Temperature Range probe family. The published 330196 format uses M10 x 1 threads with fixed 5 mm unthreaded and 30 mm case geometry, making it distinct from adjustable standard-mount probes.
The 1.0 m integral lead on 330196-05-30-10-CN is part of the calibrated transducer length. Its PFA-insulated ETR cable supports higher-temperature routing, while the extension cable must complete the length expected by the connected Proximitor Sensor.
The 330196-05-30-10-CN probe combines a PPS sensing tip, an AISI 303 or 304 stainless-steel case and a 75-ohm PFA-insulated triaxial lead for the ETR signal path.
| MODEL-RELEVANT TECHNICAL DATA | |
|---|---|
| Manufacturer | Bently Nevada |
| Product family | 3300 XL 8 mm ETR proximity transducer system |
| Probe style | Reverse mount |
| Thread | M10 x 1 |
| Unthreaded length | 5 mm |
| Overall case length | 30 mm |
| Total lead length | 1.0 m |
| Maximum M10 x 1 thread engagement | 15 mm |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 303 or 304 stainless steel |
| ETR probe cable | 75 Ω triaxial; PFA insulated |
| ETR probe-tip temperature | -52°C to +218°C operating and storage |
| ETR lead and connector temperature | -51°C to +260°C operating and storage |
| Reverse-mount cable hardware | Armor and connector-protector options are not available |
| Recommended probe case torque | 7.5 N·m for reverse-mount installation |
| ETR matched-system scale factor | 7.87 V/mm (200 mV/mil) ±6.5% |
| Matched-system linear range | 2 mm (0.25 to 2.3 mm from target) |
| Matched-system frequency response | 0 to 10 kHz, +0/-3 dB |
| SUPPLY & LOGISTICS | |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Yes, when the installed arrangement is designed for a reverse-mount probe and provides enough withdrawal space. Its fixed 5 mm unthreaded and 30 mm case geometry should be compared with the existing bracket before selection.
This ETR design extends the probe-tip rating to +218°C and the lead-and-connector rating to +260°C. The connected extension cable and the complete temperature path must still remain within their own ratings.
Its 1.0 m integral lead is part of the calibrated chain. Select an extension cable only after confirming the total system length required by the connected Proximitor Sensor.
Bently Nevada lists 15 mm as the maximum M10 x 1 thread engagement and 7.5 N·m as the recommended reverse-mount case torque. A deeper engagement can bind even when the thread pitch is correct.
No. The official reverse-mount ordering notes state that armor and connector-protector options are not available for this probe format.
In a matched 3300 XL 8 mm ETR system, the published average scale factor is 7.87 V/mm, the linear range is 2 mm and the frequency response is 0 to 10 kHz.
Share the exact nameplate, connected component labels and installation context. ApterPLC can then prepare a clearer model-focused quotation.
ApterPLC provides a one-year warranty on every item we sell, giving buyers a clear support path after delivery.
ApterPLC can match the available Bently Nevada technical reference to your complete order code and installed signal-chain details. Please send a readable nameplate, the document type you need and the connected system context.
