Item NO.:
330195-02-12-05-CNOrder(MOQ):
1Goods Stock:
10Payment:
T/TLead Time：
In stockWeight:
0.14KGDimension:
2x18.7x12.8cmDescription:
PROBEPrice:

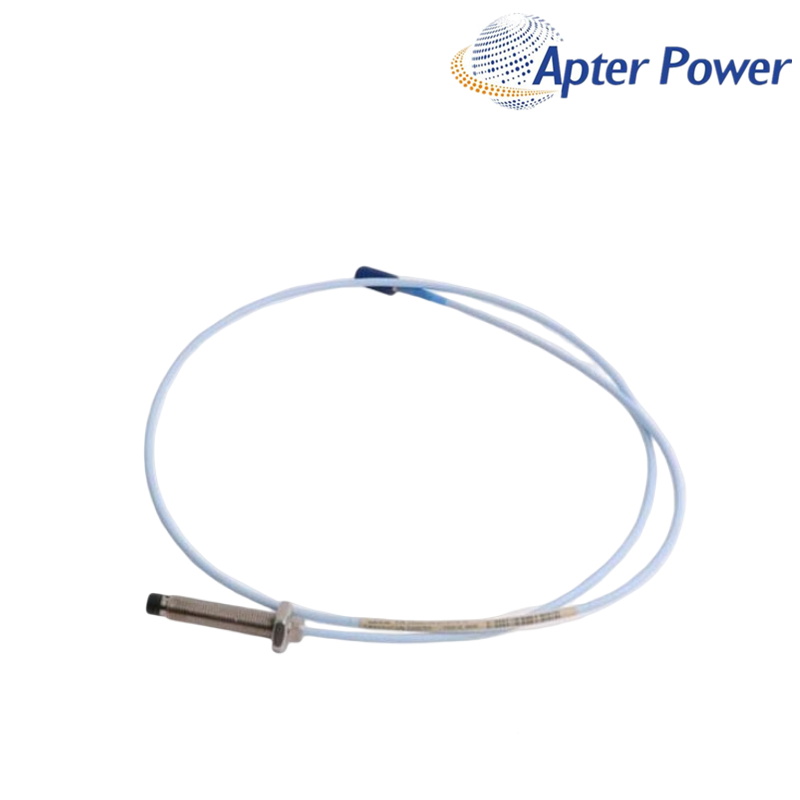

AskA 3/8-24 UNF extended-temperature reverse-mount probe with fixed 5 mm / 30 mm geometry and a 0.5 m lead.
330195-02-12-05-CN is the imperial-thread reverse-mount probe in the 3300 XL 8 mm Extended Temperature Range family. The published 330195 format uses 3/8-24 UNF threads and fixed 5 mm unthreaded / 30 mm case geometry rather than the variable body lengths of standard-mount probes.
The 0.5 m integral lead on 330195-02-12-05-CN counts toward total system length. Its PFA-insulated ETR cable supports higher-temperature routing, and the extension cable must provide the remainder required by the connected Proximitor Sensor.
The ETR lead uses 75-ohm PFA-insulated triaxial cable, while the probe tip uses PPS and the case uses AISI 303 or 304 stainless steel. These materials distinguish the temperature-rated construction from a standard probe lead.
| MODEL-RELEVANT TECHNICAL DATA | |
|---|---|
| Manufacturer | Bently Nevada |
| Product family | 3300 XL 8 mm ETR proximity transducer system |
| Probe style | Reverse mount |
| Thread | 3/8-24 UNF |
| Published compact geometry | 5 mm unthreaded; 30 mm case |
| Total lead length | 0.5 m |
| Maximum 3/8-24 thread engagement | 0.563 in |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 303 or 304 stainless steel |
| ETR probe cable | 75 Ω triaxial; PFA insulated |
| ETR probe-tip temperature | -52°C to +218°C operating and storage |
| ETR lead and connector temperature | -51°C to +260°C operating and storage |
| Reverse-mount cable hardware | Armor and connector-protector options are not available |
| Recommended probe case torque | 7.5 N·m for reverse-mount installation |
| ETR matched-system scale factor | 7.87 V/mm (200 mV/mil) ±6.5% |
| Matched-system linear range | 2 mm (0.25 to 2.3 mm from target) |
| Matched-system frequency response | 0 to 10 kHz, +0/-3 dB |
| SUPPLY & LOGISTICS | |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
No. This probe uses a 3/8-24 UNF thread; the metric ETR reverse-mount format is the 330196 family. The bracket thread must match before any electrical review.
The 0.5 m integral lead counts toward total system length. Select the extension cable that completes the length required by the installed Proximitor Sensor.
The ETR lead and connector are rated to +260°C, while the probe tip is rated to +218°C. Review both temperature locations rather than applying one limit to the complete assembly.
The published maximum engagement is 0.563 in and the recommended reverse-mount case torque is 7.5 N·m. These limits help prevent binding and case damage.
No. Bently Nevada states that reverse-mount probe formats are not available with armor or connector-protector options.
In a matched 3300 XL 8 mm ETR system, the published average scale factor is 7.87 V/mm, the linear range is 2 mm and the frequency response is 0 to 10 kHz.
Share the exact nameplate, connected component labels and installation context. ApterPLC can then prepare a clearer model-focused quotation.
ApterPLC provides a one-year warranty on every item we sell, giving buyers a clear support path after delivery.
ApterPLC can match the available Bently Nevada technical reference to your complete order code and installed signal-chain details. Please send a readable nameplate, the document type you need and the connected system context.
