Temperature class
Confirm that the installed environment requires the ETR construction.
Item NO.:
330195-02-12-05-00Order(MOQ):
1Goods Stock:
11Payment:
T/TLead Time：
In stockWeight:
0.55KGDimension:
24.3x4.6x15.5cmDescription:
PROBEPrice:

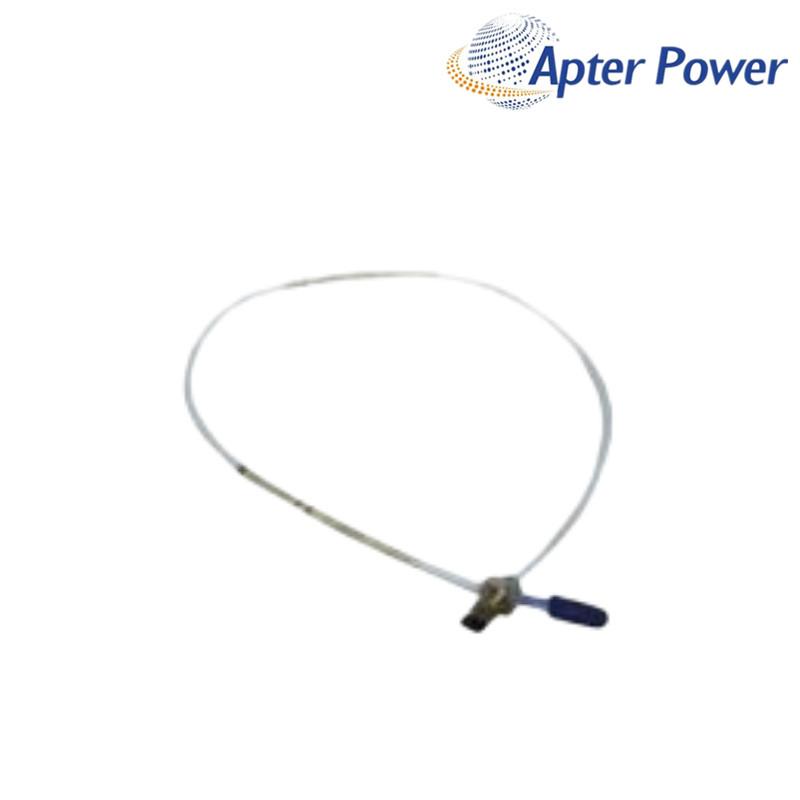

AskAn extended-temperature-range reverse-mount 3/8-24 probe with fixed geometry and a 0.5 m lead.
330195-02-12-05-00 is the extended-temperature-range reverse-mount probe in the 3300 XL 8 mm family. The 02 and 12 geometry fields identify the fixed reverse-mount construction with a 3/8-24 thread.
The 05 field specifies a 0.5 m probe lead. The final 00 is the published no-approval-required option for this ordering structure.
Use the exact ETR probe, extension cable and compatible Proximitor Sensor as a documented chain; a standard-temperature probe is not a like-for-like substitute.
Confirm that the installed environment requires the ETR construction.
Verify rear access and 3/8-24 bracket compatibility.
Keep the ETR probe, extension cable and sensor family documented together.
| Manufacturer | Bently Nevada |
|---|---|
| Component | ETR reverse-mount proximity probe |
| Product family | 3300 XL 8 mm extended temperature range system |
| Mounting | Reverse mount |
| Thread | 3/8-24 UNF |
| Fixed geometry fields | 02 unthreaded length / 12 case length |
| Total lead length | 0.5 m |
| Approval option | 00 — not required |
| Selection boundary | Use with the matching ETR extension cable and compatible Proximitor Sensor |
| Probe tip material | Ceramic / ETR construction per family datasheet |
| Cable type | ETR triaxial cable |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Confirm the ETR temperature requirement, reverse-mount access, 3/8-24 thread and complete system length. Record the mounting position, cable route and all connected component labels instead of selecting by appearance.
Provide the complete nameplate, full product view, mounting point, both connector ends and the labels of the connected cable, sensor or monitor module.
Not on connector fit alone. Linear range, system length, temperature class and approval option must be checked against the complete order code.
Check channel power or configuration, connector locking, cable bends and shielding, then confirm that the probe, cable and sensor belong to one matched system.
Compare the carton and product labels, complete suffix, connector and cable condition, and supplied approval or inspection documents with the purchase order.
Send the complete model, quantity, required delivery date, destination, installation photos and connected component models, plus any available drawing or equipment list.
Share the exact nameplate, mounting dimensions, cable route, connected component labels and approval documents. ApterPLC can then prepare a model-focused quotation without treating connector fit or a family name as proof of interchangeability.
ApterPLC provides a one-year warranty on this item, giving buyers a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names, images and trademarks are used for identification only.
The English manufacturer document below is hosted by ApterPLC for product selection and technical review.
3300 XL 8 mm Proximity Transducer System Datasheet · 141194 Rev. ANOpen the English manufacturer datasheet for ordering information, technical specifications and system guidance.Related Tags :
