Item NO.:
330190-085-00-05Order(MOQ):
1Goods Stock:
1Payment:
T/TLead Time：
1Weight:
0.25kgDimension:
20x20x2.5cm (packed)Description:
3300 XL 8 mm ETR Extension CablePrice:
AskOfficially decoded configuration for engineering review, replacement checks and quotation preparation.

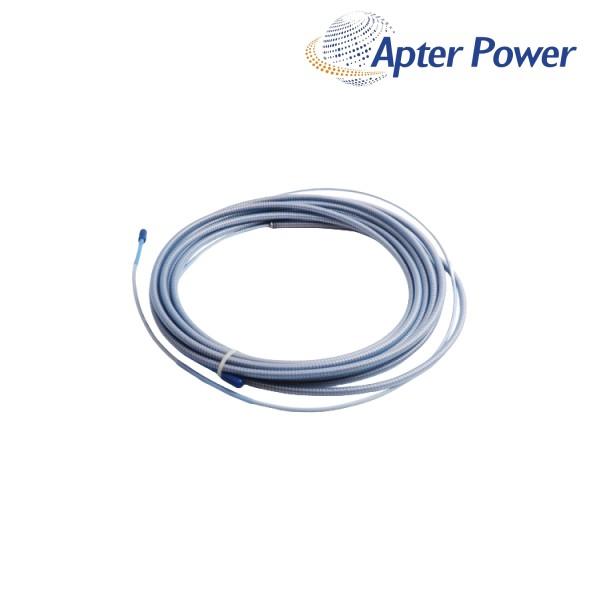

Bently Nevada 330190-085-00-05 is a 3300 XL Extended Temperature Range (ETR) extension cable used between a compatible 3300 XL proximity probe and Proximitor Sensor. In the complete transducer system, the extension cable provides the specified interconnection while corrosion-resistant, gold-plated ClickLoc connectors support a secure probe-to-sensor connection.
Bently Nevada 330190-085-00-05 identifies an 8.5 m ETR cable with the standard cable option and the CSA, ATEX and IECEx approval option. This complete suffix matters during replacement because nearby 330190 configurations can change cable length, armor and approval status.
When Bently Nevada 330190-085-00-05 is installed as part of a correctly configured 3300 XL 8 mm system, the system supports non-contacting static position and dynamic vibration measurement. The manufacturer also identifies fluid-film bearing machinery, Keyphasor reference and speed measurement as uses of the complete transducer system; the extension cable is one component of that system, not a stand-alone measuring device.
|
Extended-temperature cable
ETR cable construction is officially rated for operating and storage temperatures up to +260°C (+500°F).
|
Exact 8.5 m configuration
The 085 suffix selects an 8.5 m (27.9 ft) extension-cable length for a defined system-length calculation.
|
Specified approval option
Suffix 05 identifies the CSA, ATEX and IECEx approval option in the official ordering structure.
|
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Full catalog number | 330190-085-00-05 |
| Product family | 3300 XL 8 mm Proximity Transducer System |
| Product type | Extended Temperature Range (ETR) extension cable |
| Cable length option | 085 = 8.5 m (27.9 ft) |
| Cable option | 00 = Standard cable |
| Agency approval option | 05 = CSA, ATEX and IECEx approvals |
| Operating and storage temperature | -52°C to +260°C (-62°F to +500°F) |
| Nominal core resistance at 8.5 m | 1.87 Ω ± 0.28 Ω |
| Cable and connector construction | PFA-insulated triaxial cable with miniature ClickLoc connectors |
| Cable length tolerance | +20%, -0% |
| Packed dimensions | 20 × 20 × 2.5 cm (user-confirmed packing data) |
| Packed weight | 0.25 kg (user-confirmed packing data) |
Official system context — probe, extension cable and Proximitor Sensor
|
Official 330190 ETR extension-cable engineering figure
|
Technical evidence: Bently Nevada / Baker Hughes, 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM. Packing data is supplied and confirmed by the website operator.
ApterPLC provides a one-year seller warranty for this item. Warranty scope and eligibility are confirmed with the quotation and order documentation.
Use the manufacturer resources below for configuration, installation and approval review.
