Complete nine metres
Pair the 8.0 m cable with the supported probe lead needed by the nine-metre Proximitor Sensor.
Item NO.:
330190-080-01-00Order(MOQ):
1Goods Stock:
30Payment:
T/TLead Time：
In stockWeight:
0.96KGDimension:
30.5x30x4.5cmDescription:
EXTENSION CABLEPrice:
AskSend the complete nameplate, installed system context, quantity and destination. We support new original, discontinued and difficult-to-source industrial parts.
Manager: JimPei
Exact-model engineering context

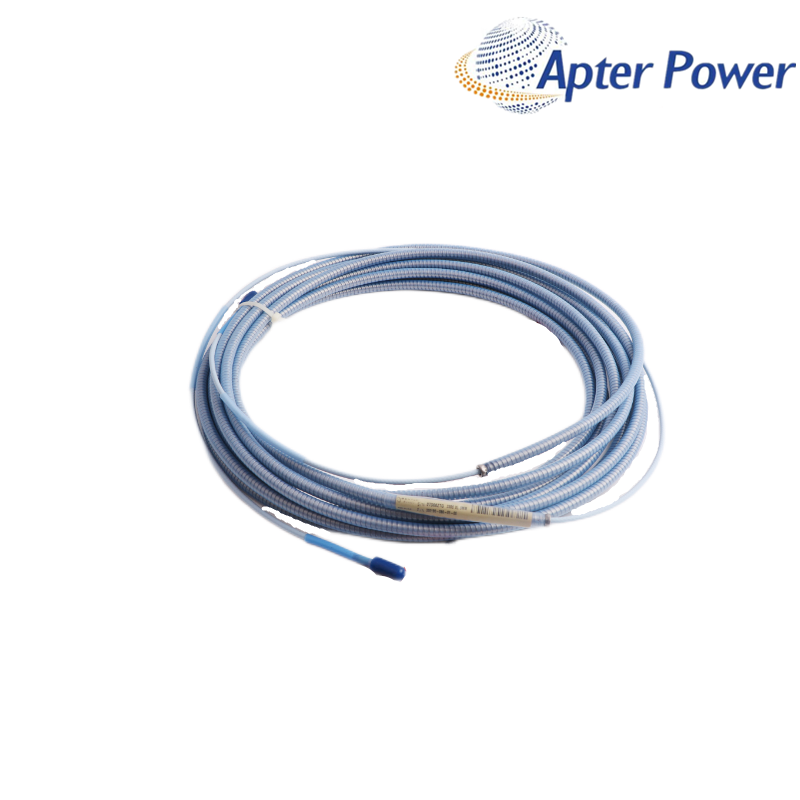

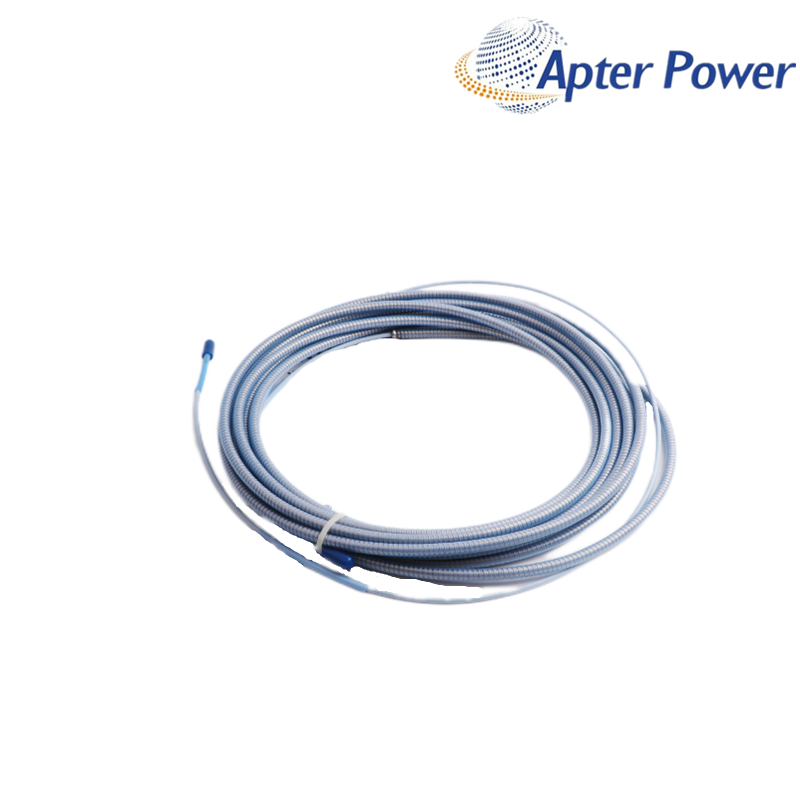

An eight-metre armored extension cable can complete a nine-metre transducer chain when the installed probe provides the supported one-metre lead. That is the practical role of 330190-080-01-00 in the 3300 XL 8 mm system.
The 330190 family uses the documented extended-temperature-range cable construction. Armor improves mechanical protection but does not permit tight bends, damaged connectors or an incorrect total system length; inspect the full route and both component labels before reuse.
Practical release checks
Pair the 8.0 m cable with the supported probe lead needed by the nine-metre Proximitor Sensor.
Maintain at least the documented 25.4 mm cable bend radius and inspect armor at clamps and entries.
Seat ClickLoc connectors finger-tight until they click, then apply the documented environmental protection.
Official configuration plus supply terms
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | Extended-temperature-range extension cable |
| Cable length | 8.0 m (26.2 ft) |
| Cable option | 01 - armored cable |
| Cable insulation | 75 ohm triaxial, PFA-insulated ETR cable |
| ETR cable temperature rating | Up to 260°C (500°F), with total system accuracy limited by the ETR component |
| Minimum cable bend radius | 25.4 mm (1.0 in) |
| Agency approval selection | 00 - not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Two model-relevant technical themes
Apply the separate limits of the probe, cable, connectors and Proximitor Sensor. The lowest applicable limit controls the installed chain.
Route armor without crushing or tight bends, keep the connector clean and ensure probe plus cable length equals the selected Proximitor Sensor total.
Stop / release boundary
Do not splice the cable or add length to solve a routing shortage. Select the official cable length that completes the required five- or nine-metre system.
Officially supported task family
Used to carry the proximity-probe signal across a protected high-temperature route within a matched 3300 XL 8 mm vibration or position measurement chain.
Buyer, installer and engineer situations
Yes, when the probe is the supported one-metre selection and the total is exactly nine metres. Confirm all three labels before installation.
Do not splice it or add another extension. Re-plan the route or select the official probe and cable lengths that produce the required complete system length.
No. Avoid crushing, abrasion, tight bends and unsupported connector loads, and inspect the armor at clamps, conduits and enclosure entries.
Use the documented limit for every component and apply the lowest limit at its actual location. The ETR cable rating does not raise the probe, connector or sensor limit.
A wrong total length, disturbed probe gap, contaminated or incompletely seated ClickLoc joint, cable damage or wiring fault can shift the chain. Check those causes before recalibration.
Send the probe and Proximitor labels, required total system length, route temperature, armor need, conduit or clamp details, quantity and destination.
ApterPLC supply capability
New original supply: Exact-model review supports quality-focused sourcing and incoming identity checks.
Current and discontinued products: Our network supports routine, scarce and hard-to-find automation parts.
Responsive after-sales service: We assist with delivery coordination, receipt questions and post-purchase technical communication.
Search and buyer terminology
Search note: Common spelling and separator variants are listed for discovery only. Use the exact product model shown above for quotation and ordering.
Apter's 1 Year Warranty
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names/product images, trademarks, brands and logos used on this website are the property of their respective owners. Product descriptions, depictions or sales with these names, images, trademarks, brands and logos are for identification purposes only and do not imply any affiliation or authorization to any rights holder.
|
