Complete nine metres
Confirm the installed probe lead and extension-cable lengths from their labels.
Item NO.:
330180-91-05Order(MOQ):
1Goods Stock:
37Payment:
T/TLead Time：
In stockWeight:
0.25KGDimension:
8.8x7x3cmDescription:

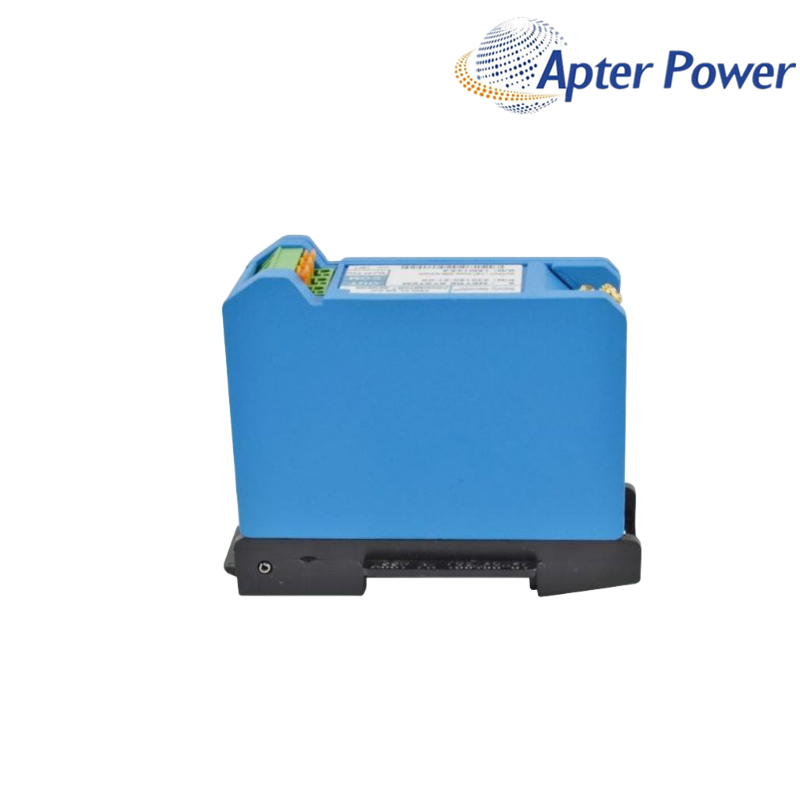

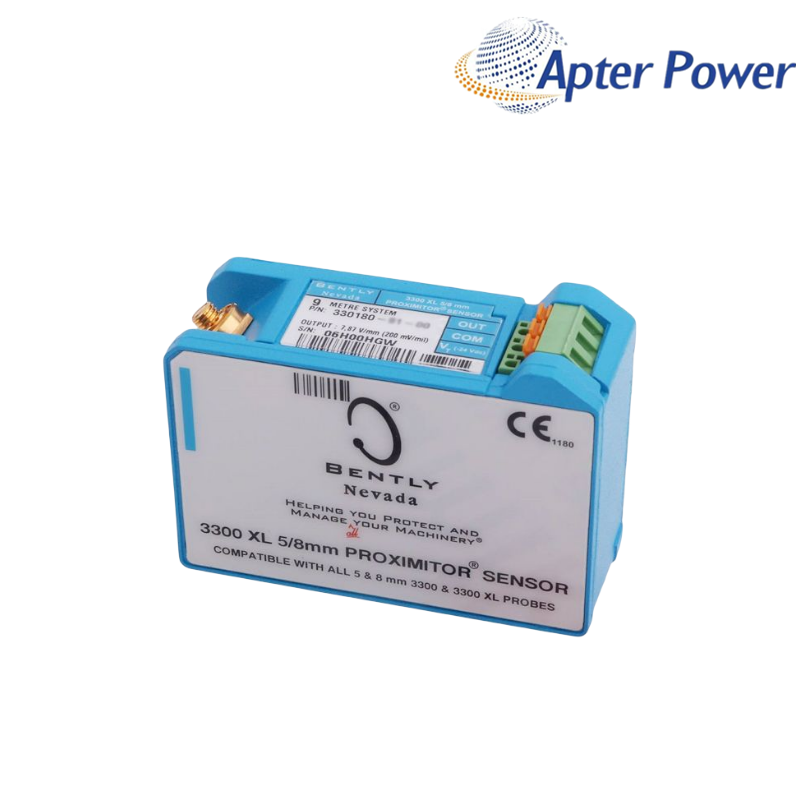

PROXIMITY TRANSDUCER MODULEPrice:
AskSend the complete nameplate, installed system context, quantity and destination. We support new original, discontinued and difficult-to-source industrial parts.
Manager: JimPei
Exact-model engineering context
When a nine-metre channel also carries a multiple-approval selection, cabinet integration and compliance acceptance must proceed in parallel. 330180-91-05 combines the DIN-mount arrangement with the documented 05 approval option.
The order code alone is not the complete hazardous-area decision. Receiving and commissioning teams still need the delivered marking, applicable certificate conditions, enclosure, wiring method, probe-and-cable total and site drawing before the channel is released.
Practical release checks
Confirm the installed probe lead and extension-cable lengths from their labels.
Leave room for terminals, testing and the minimum cable bend radius.
Use delivered markings and official conditions, not the suffix by itself.
Official configuration plus supply terms
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL Proximitor Sensor |
| System length / mounting | 9.0 m system length, DIN mount |
| Incremental scale factor | 7.87 V/mm (200 mV/mil) under the documented nine-metre system conditions |
| Linear range | 2 mm (80 mils) |
| Field wiring | Recommended shielded three-conductor cable; maximum 305 m with bandwidth review |
| Agency approval selection | 05 - CSA, ATEX and IECEx approvals; verify delivered marking and all conditions |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Two model-relevant technical themes
Match the nameplate and certificate to the area classification, enclosure, wiring method, temperature conditions and installation drawing.
Keep compliance troubleshooting separate from signal troubleshooting: first verify safe installation, then check gap, lengths, connectors, power and wiring.
Stop / release boundary
Stop installation if the nameplate, approval record, DIN hardware or nine-metre chain cannot be matched to the purchase and site requirements.
Officially supported task family
Supports condition-monitoring tasks in a correctly matched 3300 XL 8 mm chain where nine-metre length, DIN mounting and the 05 approval selection are required.
Buyer, installer and engineer situations
Confirm the delivered marking, certificate conditions, area classification, enclosure, wiring method, temperature limits and installation drawing. The 05 suffix is not a complete site approval.
Reserve DIN-rail width, terminal access, test access and cable bend clearance, and verify the enclosure arrangement required by the applicable approval conditions.
The supported probe lead plus extension cable must total nine metres. Record both labels in the commissioning package.
Inspect probe gap, target surface, ClickLoc seating, cable damage, supply and field wiring before changing monitor configuration.
Quarantine it when the full model, DIN hardware, approval marking or physical condition differs from the order, or when the required certificate cannot be matched.
Include all transducer-chain labels, required area approval, enclosure and wiring context, site destination, quantity and requested certificate information.
ApterPLC supply capability
New original supply: Exact-model review supports quality-focused sourcing and incoming identity checks.
Current and discontinued products: Our network supports routine, scarce and hard-to-find automation parts.
Responsive after-sales service: We assist with delivery coordination, receipt questions and post-purchase technical communication.
Search and buyer terminology
Search note: Common spelling and separator variants are listed for discovery only. Use the exact product model shown above for quotation and ordering.
Apter's 1 Year Warranty
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names/product images, trademarks, brands and logos used on this website are the property of their respective owners. Product descriptions, depictions or sales with these names, images, trademarks, brands and logos are for identification purposes only and do not imply any affiliation or authorization to any rights holder.
|
