Reserve rail access
Leave room for SpringLoc terminals, testing and cable routing.
Item NO.:
330180-91-00Order(MOQ):
1Goods Stock:
37Payment:
T/TLead Time：
In stockWeight:
0.25KGDimension:
7.8x3x6.2cmDescription:

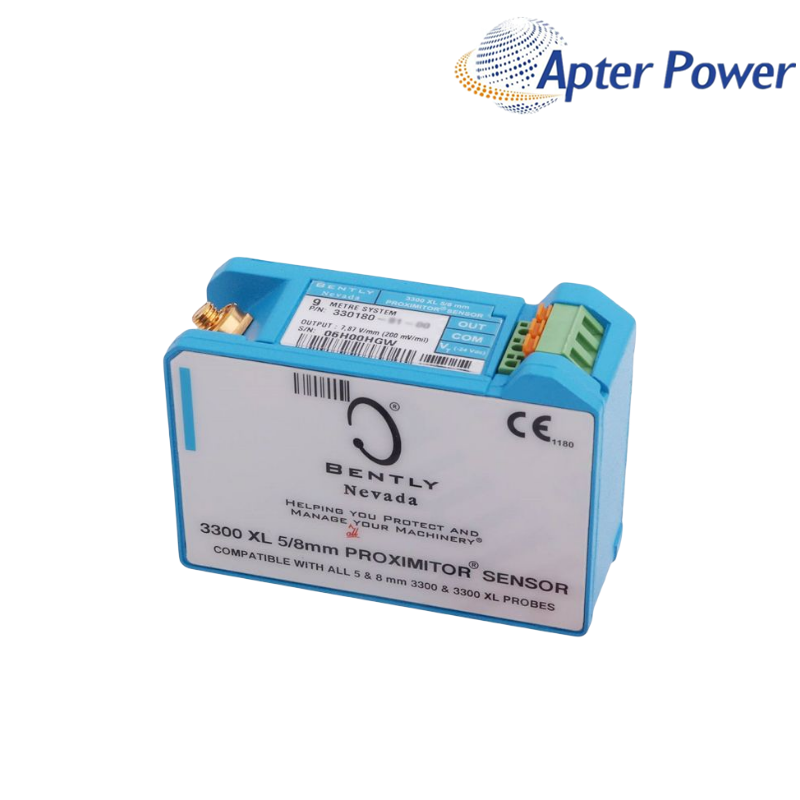

PROXIMITY TRANSDUCERPrice:
AskSend the complete nameplate, installed system context, quantity and destination. We support new original, discontinued and difficult-to-source industrial parts.
Manager: JimPei
Exact-model engineering context
A high-density DIN enclosure for a nine-metre measurement chain is the core selection case for 330180-91-00. The sensor receives one supported probe and extension-cable chain and provides the conditioned gap signal to the monitor.
The 00 approval option means an agency approval selection was not requested in the catalog code; it does not waive the plant's area-classification or installation review. Verify rail layout, power, field wiring, target material and the nine-metre component total before startup.
Practical release checks
Leave room for SpringLoc terminals, testing and cable routing.
Use labels to verify the probe plus extension-cable total before wiring.
No agency approval was requested; the site still controls the permitted installation area.
Official configuration plus supply terms
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL Proximitor Sensor |

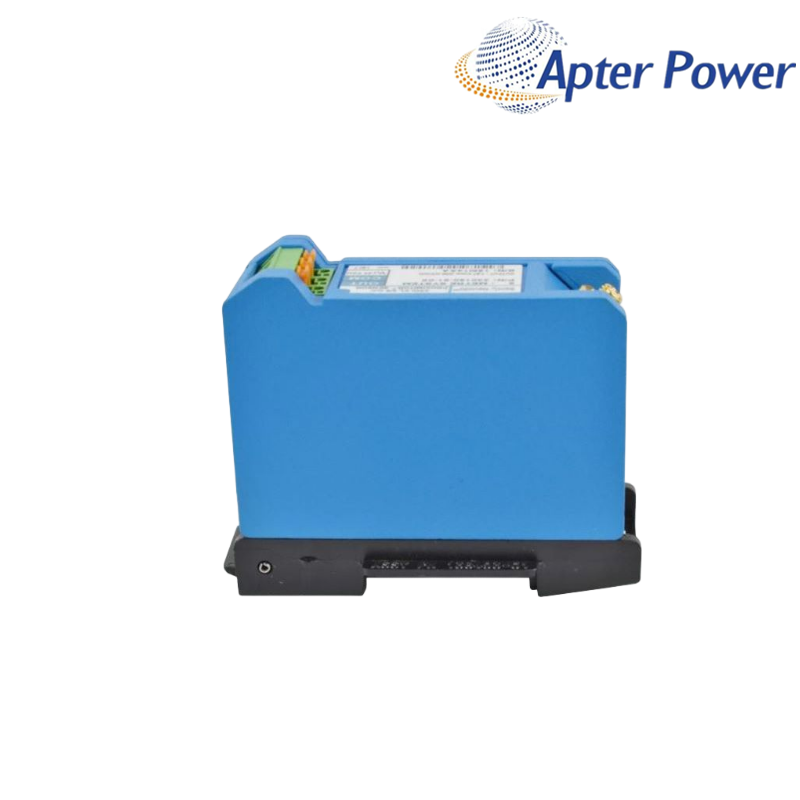

| System length / mounting | 9.0 m system length, DIN mount |
| Sensor input | One supported 3300-series 5 mm or 3300 XL 8 mm probe and extension-cable chain |
| Linear range | 2 mm (80 mils) |
| Recommended radial-vibration gap | Approximately -9 Vdc, about 1.27 mm (50 mils), under the documented target conditions |
| Agency approval selection | 00 - not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Two model-relevant technical themes
SpringLoc terminals support the power, common and output field connections; preserve the approved shield and grounding arrangement when moving the channel.
Long field wiring can affect high-frequency response. Review bandwidth as the run approaches the documented 305 m maximum.
Stop / release boundary
Commission from the probe toward the monitor: gap, connector, total length, sensor power and field wiring should be checked in that order.
Officially supported task family
Appropriate for supported vibration, position, Keyphasor reference and speed measurements where a nine-metre chain terminates in a DIN-rail cabinet.
Buyer, installer and engineer situations
Choose it when the official nine-metre DIN-mount configuration matches the cabinet plan. Confirm rail space, terminal access and cable routing rather than selecting from enclosure density alone.
Only after the supply, common, output, shield and grounding points are checked against the official terminal schedule. Photograph and label the old wiring before removal.
Field-wiring capacitance contributes to high-frequency rolloff. Compare the run length and required bandwidth with the manufacturer graphs before accepting the signal path.
No. It means an agency approval was not requested in the catalog code. The site must separately verify classification, enclosure and wiring requirements.
Verify the nine-metre component total, seat the connectors, apply the documented supply, check gap voltage and then compare the monitor indication with the expected machine condition.
Compare the full model, DIN hardware, nameplate, physical condition and purchase record; retain photographs before the unit is installed.
ApterPLC supply capability
New original supply: Exact-model review supports quality-focused sourcing and incoming identity checks.
Current and discontinued products: Our network supports routine, scarce and hard-to-find automation parts.
Responsive after-sales service: We assist with delivery coordination, receipt questions and post-purchase technical communication.
Search and buyer terminology
Search note: Common spelling and separator variants are listed for discovery only. Use the exact product model shown above for quotation and ordering.
Apter's 1 Year Warranty
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
