Build nine metres
Select probe and extension-cable lengths that total the sensor's nine-metre system length.
Item NO.:
330180-90-05Order(MOQ):
1Goods Stock:
33Payment:
T/TLead Time：
In stockWeight:
0.25KGDimension:
7.9x6.2x6.3cmDescription:
PROXIMITOR SENSORPrice:
AskSend the complete nameplate, installed system context, quantity and destination. We support new original, discontinued and difficult-to-source industrial parts.
Manager: JimPei
Exact-model engineering context

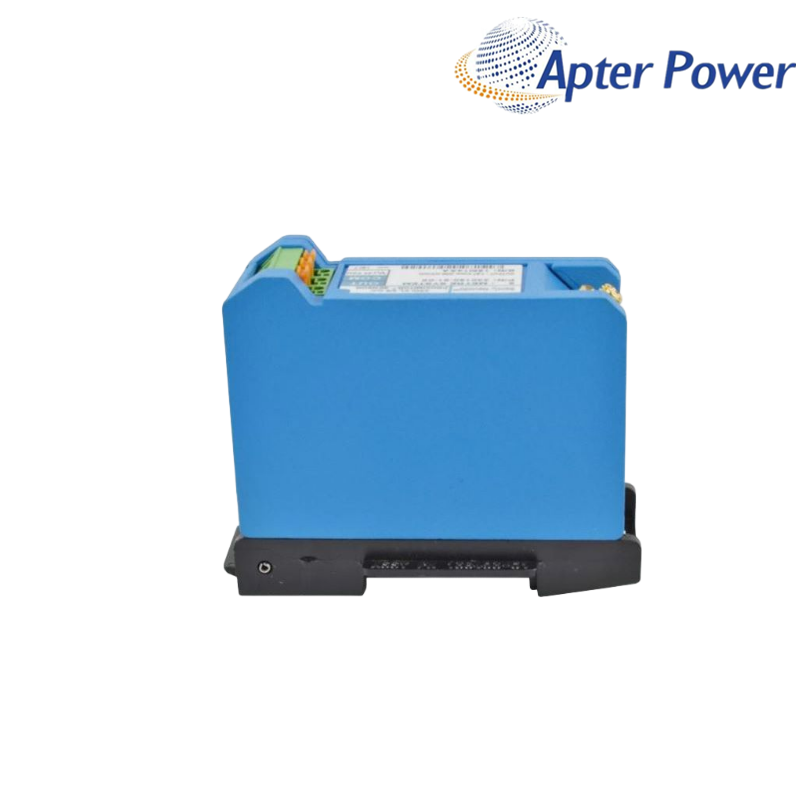

Longer transducer chains change the replacement check: the probe and extension cable must add to nine metres rather than merely reach the panel. The panel-mount 330180-90-05 is the 3300 XL 8 mm Proximitor Sensor selection for that nine-metre chain.
Its four-hole mounting arrangement can support a planned panel replacement, while the 05 selection adds an approval-control task at receipt. Confirm the complete chain, delivered marking, certificate conditions and site installation drawing before energizing the channel.
Practical release checks
Select probe and extension-cable lengths that total the sensor's nine-metre system length.
Check the four-hole position and cable bend space, not only the front-panel opening.
Match the delivered 05 marking to the site's certificate and installation conditions.
Official configuration plus supply terms
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL Proximitor Sensor |
| System length / mounting | 9.0 m system length, panel mount |
| Incremental scale factor | 7.87 V/mm (200 mV/mil) under the documented nine-metre system conditions |
| Linear range | 2 mm (80 mils) |
| Power | -17.5 to -26 Vdc under the documented non-incendive installation conditions; 12 mA maximum |
| Agency approval selection | 05 - CSA, ATEX and IECEx approvals; verify delivered marking and conditions |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Two model-relevant technical themes
Treat the approval code as the start of acceptance. Confirm area classification, certificate conditions, enclosure, wiring method and delivered marking.
Nine-metre performance requires the supported probe and extension-cable total; record both labels before monitor setup.
Stop / release boundary
Do not approve a panel replacement from the footprint alone. Chain length, target, wiring and the 05 approval conditions must all agree.
Officially supported task family
Used for non-contact vibration and position measurements, including supported Keyphasor reference and speed tasks, when a nine-metre chain and panel mounting are required.
Buyer, installer and engineer situations
The documented panel-mount base shares the older four-hole footprint, but verify available space and the minimum cable bend radius before the outage.
No. The supported probe lead plus extension cable must total nine metres for this sensor selection. Do not correct a length mismatch through monitor calibration.
Stop acceptance if the model, panel-mount hardware or required approval marking does not match the order, or if the label and certificate conditions cannot be reconciled with the site.
Check probe gap, target material, the nine-metre component total, ClickLoc seating, power and field wiring before changing scaling or replacing the monitor.
No. The improved immunity supports installation flexibility, but field wiring, shielding, routing and enclosure requirements still have to follow the official instructions and site drawing.
Send the full model, probe and extension-cable labels, panel photograph, required approval, wiring and supply details, quantity and destination.
