Match five metres
Probe lead plus extension cable must equal the five-metre Proximitor Sensor length.
Item NO.:
330180-51-CNOrder(MOQ):
1Goods Stock:
32Payment:
T/TLead Time：
In stockWeight:
0.22KGDimension:
8.8x3.5x7cmDescription:
PROXIMITOR SENSORPrice:
AskSend the complete nameplate, installed system context, quantity and destination. We support new original, discontinued and difficult-to-source industrial parts.
Manager: JimPei
Exact-model engineering context

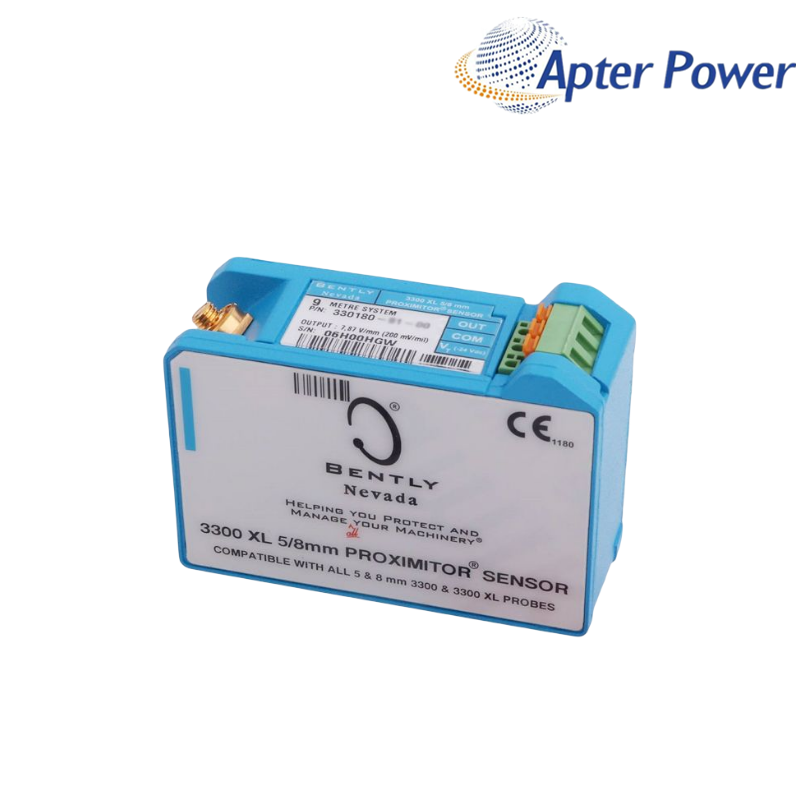

During a five-metre DIN-rail replacement, the enclosure layout and the complete transducer-chain length must be confirmed together. 330180-51-CN is the DIN-mount Proximitor Sensor selection for a documented five-metre 3300 XL 8 mm measurement chain.
The -CN suffix is retained exactly as a country-specific approval or marking selection; it is not used here to create a separate performance specification. Match the installed probe lead plus extension cable to five metres, then verify supply, target material, gap and delivered marking before commissioning.
Practical release checks
Probe lead plus extension cable must equal the five-metre Proximitor Sensor length.
Confirm rail space, terminal access and cable bend clearance before the outage.
Check the complete delivered label and the applicable country-specific approval record.
Official configuration plus supply terms
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL Proximitor Sensor |
| System length / mounting | 5.0 m system length, DIN mount |
| Sensor input | One supported 3300-series 5 mm or 3300 XL 8 mm probe and extension-cable chain |
| Incremental scale factor | 7.87 V/mm (200 mV/mil), subject to the documented system conditions |
| Linear range | 2 mm (80 mils) |
| Power | -17.5 to -26 Vdc under the documented non-incendive installation conditions; 12 mA maximum |
| Country-specific selection | CN; verify delivered marking and the applicable official approval record |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Two model-relevant technical themes
Use the DIN mounting base and SpringLoc terminals as documented; preserve electrical isolation, wiring identification and the minimum cable bend radius.
For an unexpected channel bias, inspect probe gap, target, component lengths, ClickLoc seating, supply and field wiring before changing monitor scaling.
Stop / release boundary
Release only after the five-metre chain, DIN installation, power, field wiring and full country-specific label have been checked together.
Officially supported task family
Supports non-contacting vibration, position, Keyphasor reference and speed measurements within a correctly matched 3300 XL 8 mm system.
Buyer, installer and engineer situations
Only when the probe lead and extension cable are supported components whose total is five metres. Read both component labels and inspect the ClickLoc joint before reconnecting the channel.
Confirm rail space, terminal access, cable bend clearance, grounding practice and the field-wiring schedule. Do not release the outage plan from mounting style alone.
A disturbed probe gap, wrong total cable length, incompletely seated ClickLoc connector, target change or field-wiring fault can shift the output. Correct those conditions before changing monitor scaling.
Quote the full suffix and request the delivered nameplate plus the applicable country-specific approval or marking record. Do not shorten the code or treat CN as proof of different electrical performance.
The manufacturer documents up to 305 m with recommended shielded three-conductor wiring, subject to high-frequency rolloff. Check the required bandwidth before approving a long run.
Provide all probe, cable and sensor labels, DIN-enclosure photographs, supply and wiring details, target material, required marking, quantity and destination.
