Match the complete chain
Probe lead and extension cable must total five metres for this sensor configuration.

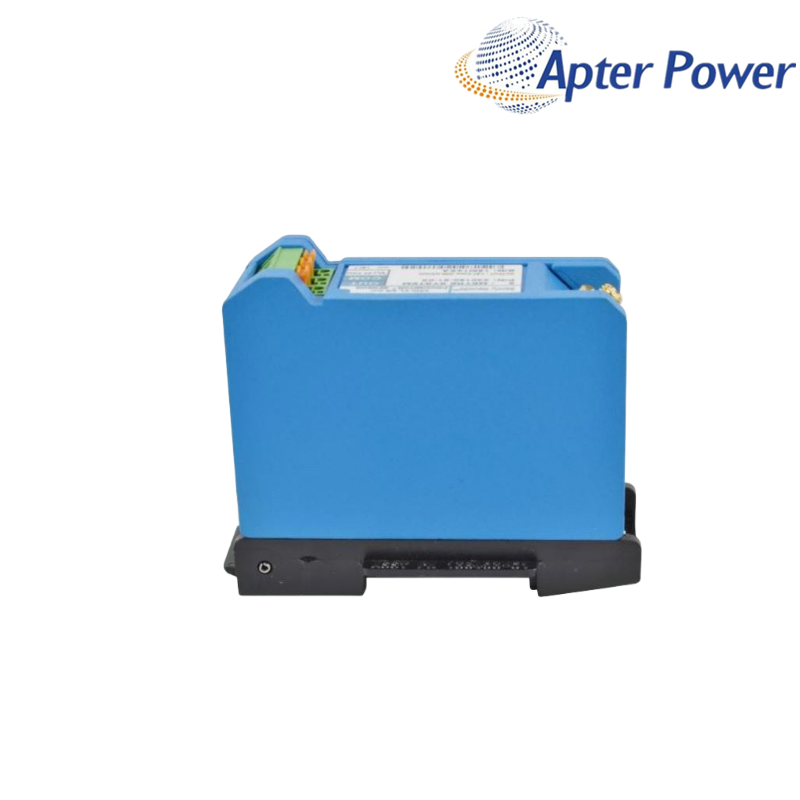

Bently Nevada 330180-50-05 is a five-metre panel-mount 3300 XL Proximitor Sensor with the official 05 agency-approval option.
Item NO.:
330180-50-05Order(MOQ):
1Goods Stock:
28Payment:
T/TLead Time：
In stockWeight:
0.25KGDimension:
7.8x3x6.2cmDescription:
PROXIMITY SENSORPrice:
AskSend the complete nameplate, installed probe/cable/sensor context, quantity and destination. We support new original, discontinued and difficult-to-source industrial parts.
Manager: JimPei
five-metre chain, panel footprint and approval-controlled commissioning
Signal conditioning rather than cable extension is the role of 330180-50-05. This panel-mount 3300 XL Proximitor Sensor is configured for a five-metre system and converts the matched transducer response into the voltage signal used for position and vibration monitoring.
A replacement decision must start from the full chain: 330180-50-05 expects the supported probe lead and extension cable to total five metres. Approximate cable reach or a matching connector does not establish the correct configuration.
Within the control panel, 330180-50-05 combines the documented panel-mount arrangement with the improved RFI/EMI immunity of the 3300 XL design. Confirm mounting, wiring, power, target material, probe gap and delivered approval marking before startup.
Fast release checks
Probe lead and extension cable must total five metres for this sensor configuration.
Check the four-hole footprint, wiring access and cable bend clearance before the outage.
The 05 selection requires marking and site-condition review at acceptance.
Official configuration plus supply terms
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL Proximitor Sensor |
| System length / mount | 5.0 m system length, panel mount |
| Sensor input | One supported 3300-series 5 mm or 3300 XL 8 mm probe and extension-cable chain |
| Power | -17.5 to -26 Vdc under the documented non-incendive installation conditions; 12 mA maximum consumption |
| Field wiring | Recommended shielded three-conductor wiring; up to 305 m with documented frequency-response considerations |
| Agency approval option | CSA, ATEX, IECEx Approvals |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Engineering focus
The system output is proportional to probe-tip distance and supports static position and dynamic vibration measurements within the documented system.
Use -17.5 to -26 Vdc under the documented non-incendive installation conditions and verify the five-metre transducer chain before monitor setup.
Primary technical risk
A panel-mount sensor that fits the old footprint is not automatically the correct replacement. Confirm the five-metre chain, power and field wiring, target material, delivered approval marking and mounting clearance before startup. Diagnose probe gap, cable length and connectors before changing monitor scaling or treating the sensor as faulty.
Before ordering or commissioning
Accept the sensor only after the five-metre components, panel mounting, wiring, power and approval conditions are verified together.
Buyer and engineer situations
The supported probe lead plus extension cable must total five metres. Read both labels rather than selecting from physical reach.
The 3300 XL panel-mount base shares the documented four-hole footprint, but verify available space and cable bend clearance before replacement.
Check target material, probe gap, five-metre component total, ClickLoc seating and field wiring before adjusting monitor scaling.
The manufacturer documents up to 305 m using the recommended shielded three-conductor field wiring, with frequency-response considerations for long runs. Review the required bandwidth before release.
No. Confirm the delivered marking, certificate conditions, area classification, enclosure, wiring method and applicable installation drawing.
Send the full sensor, probe and cable labels, panel photograph, supply and wiring details, target material, required approval, quantity and destination.
