System length
Use this version only where the installed 3300 XL probe-and-cable combination is intended for a 1.0 m system.
Item NO.:
330180-12-00Order(MOQ):
1Goods Stock:
22Payment:
T/TLead Time：
In stockWeight:
0.22KGDimension:
7.8x6x6.2cmDescription:
1.0 m System Proximitor SensorPrice:
AskA 3300 XL 8 mm Proximitor sensor for a 1.0 m matched system, supplied without mounting hardware and with no agency approval option.

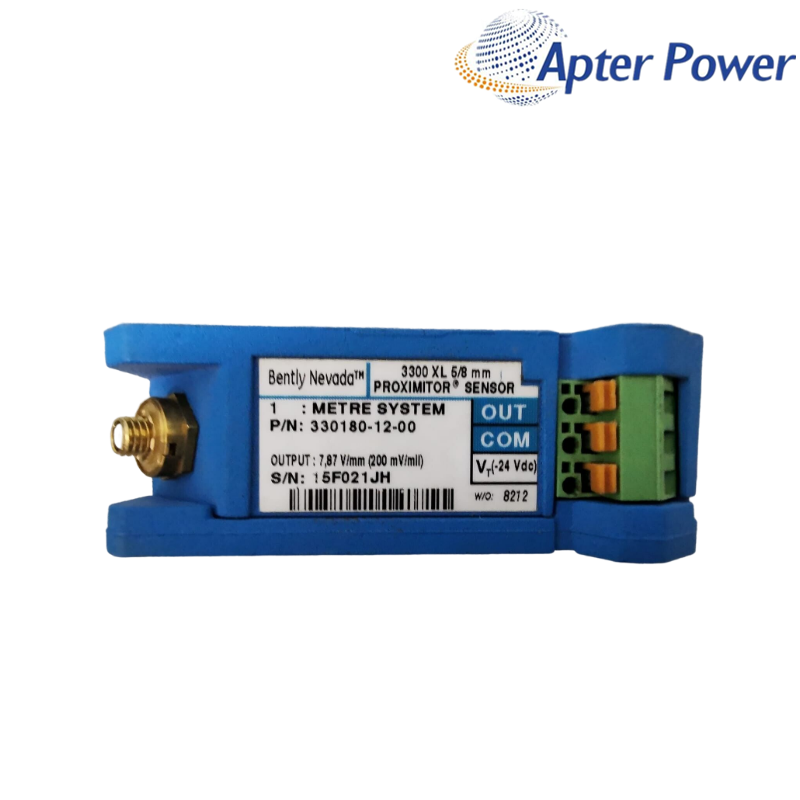

Bently Nevada 330180-12-00 is a 3300 XL Proximitor sensor for a 1.0 m proximity transducer system. The 12 option identifies the 1.0 m system-length version without mounting hardware, while 00 identifies the no-approval option.
The Proximitor sensor is the electronic interface for the matched 3300 XL probe and cable. When replacing it, the system length, probe family, connector condition, mounting arrangement and monitor input should all be compared with the installed channel.
Use this version only where the installed 3300 XL probe-and-cable combination is intended for a 1.0 m system.
Option 12 is supplied without mounting hardware, so confirm how the existing sensor is mounted before ordering accessories.
The 00 suffix is the no-approval option; project certification needs should be checked separately.
Record the probe, cable and Proximitor labels, terminal wiring, mounting and channel baseline.
Maintain the matched system length, use clean connections and preserve the established grounding and routing practice.
Verify the supply, output and channel response using the plant 3300 XL commissioning procedure.
| Product family | 3300 XL 8 mm proximity transducer system |
|---|---|
| Component role | Proximitor sensor / signal conditioner |
| System length option | 1.0 m |
| Mounting hardware | Not included |
| Agency approval option | Not required |
| Selection basis | Matched probe and cable family, system length and monitor input |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
A replacement or planned spare for a 3300 XL 8 mm measurement channel whose installed probe-and-cable combination is configured as a 1.0 m system and whose existing mounting hardware will be retained or sourced separately.
No direct substitution should be assumed. The 1.0 m system option must match the installed probe and cable combination.
No. The 12 option is the 1.0 m version without mounting hardware, so the existing mounting arrangement should be checked before ordering.
It should be selected for the supported 3300 XL 8 mm system, not treated as a universal Proximitor sensor across proximity families.
Confirm supply and wiring, system length, probe and cable labels, connector condition, installed gap and monitor input as one measurement chain.
The 00 suffix identifies the no-approval option. Compare the project certification requirement with the offered label before purchase.
Send the full Proximitor, probe and cable labels, mounting and terminal photos, quantity, delivery country and maintenance deadline.
Labels and installed context are compared before quotation.
Commercial terms and available traceability are confirmed with the offer.
Availability and delivery options are coordinated around your shutdown plan.
Coverage begins on the shipment date unless the confirmed quotation states otherwise.
Coverage and available remedy follow the confirmed quotation and sales agreement.
We carefully review technical documents to match your exact hardware version. Send us a clear photo of the complete product label and tell us whether you need a datasheet, user manual or wiring diagram.
|
