Imperial geometry
Confirm the 1/4-28 UNF thread, 1.6 in smooth reach and 4.2 in case together.
Item NO.:
330172-16-42-10-01-00Order(MOQ):
1Goods Stock:
8Payment:
T/TLead Time：
In stockWeight:
0.22KGDimension:
8.8x3.5x7cmDescription:
SENSORPrice:

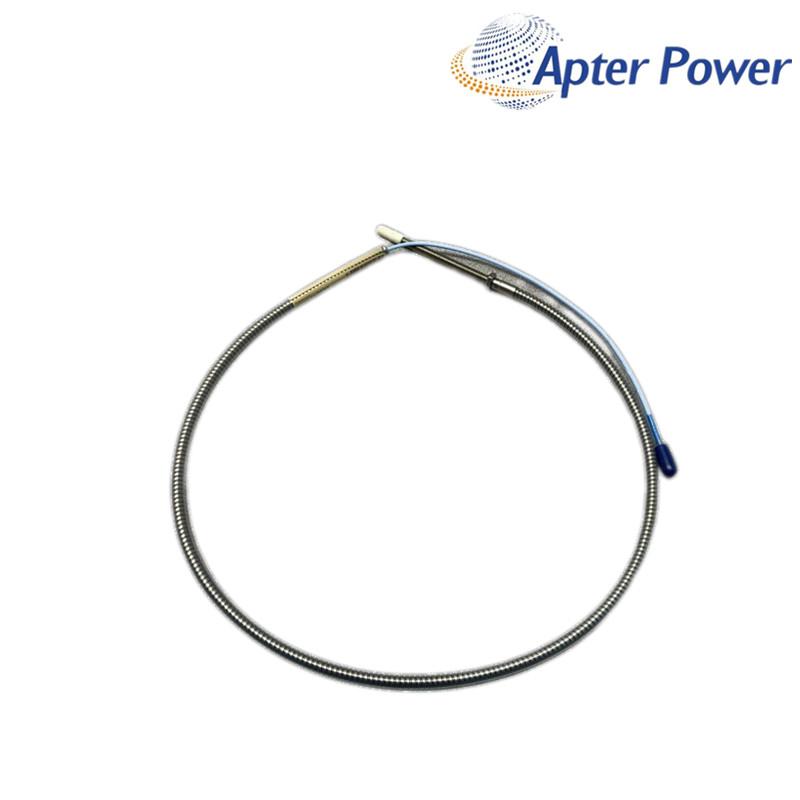

AskAn armored 1/4-28 UNF 5 mm probe with a 1.6 in unthreaded section, 4.2 in case and 1.0 m lead.
330172-16-42-10-01-00 is identified as an armored 1/4-28 UNF 5 mm probe with a 1.6 in unthreaded section, 4.2 in case and 1.0 m lead.
For 330172-16-42-10-01-00, the full coded configuration and its connected system should be checked together. A matching connector or similar appearance does not establish interchangeability.
Before quoting 330172-16-42-10-01-00, provide the complete label and photos of the mounting point, cable route and connected equipment so the selected part can be verified against the installed chain.
Confirm the 1/4-28 UNF thread, 1.6 in smooth reach and 4.2 in case together.
Keep the 5 mm probe, extension cable and Proximitor Sensor within the published 5 mm system.
Option 01 includes a connector protector; verify the protector and ClickLoc joint are intact.
| Manufacturer | Bently Nevada |
|---|---|
| System family | 3300 5 mm Proximity Transducer System |
| Component | Armored proximity probe |
| Thread | 1/4-28 UNF |
| Unthreaded length | 1.6 in |
| Overall case length | 4.2 in |
| Total probe length | 1.0 m |
| Connector / cable | Standard ClickLoc cable with connector protector |
| Agency approval | Not required |
| Nominal sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear range | 2.0 mm (80 mils) |
| Frequency response | 0 to 10 kHz, +0/-3 dB |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
It belongs to the 3300 5 mm system. A 3300 XL 8 mm probe is not a valid substitute even if the connector appears to fit.
Confirm the 1/4-28 UNF thread, 1.6 in unthreaded reach, 4.2 in case and 1.0 m lead. These values determine mechanical fit and system selection.
Only if both are correct 3300 5 mm system components and the 1.0 m probe lead plus cable length matches the required electrical length.
Yes. Option 01 includes a connector protector. The supplied configuration and installed joint should use the same connector arrangement.
Provide the complete probe nameplate, bracket or mounting dimensions, extension-cable and Proximitor nameplates, connector photos, quantity and delivery country.
The supplied product is covered for 12 months under ApterPLC's sales terms. Retain the product nameplate, packaging and transaction record for warranty assessment.
|
