Complete nine metres exactly
A supported 0.5 m probe lead plus 8.5 m extension cable reaches the required total.

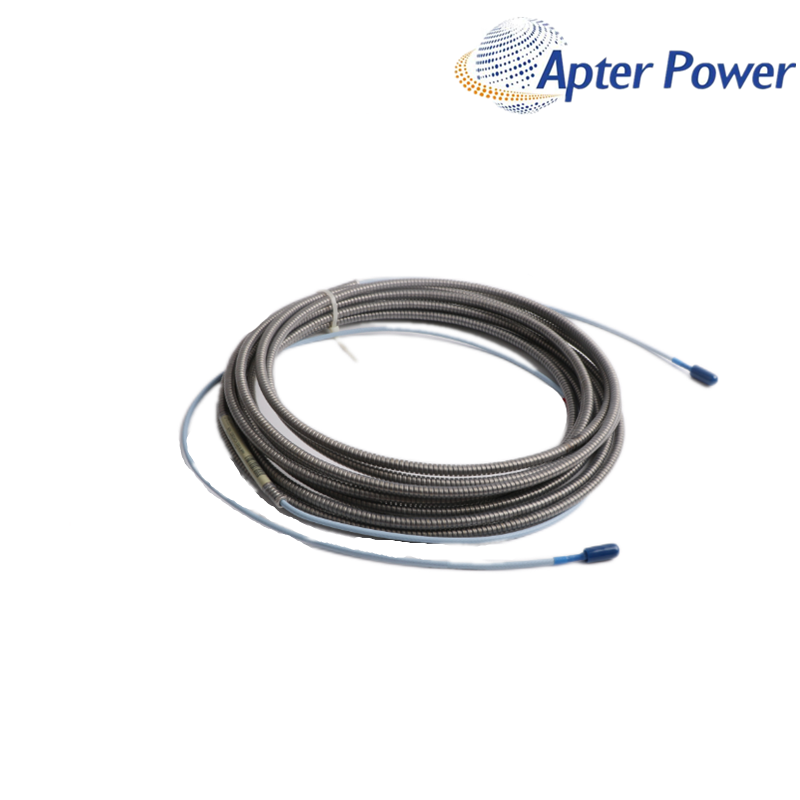

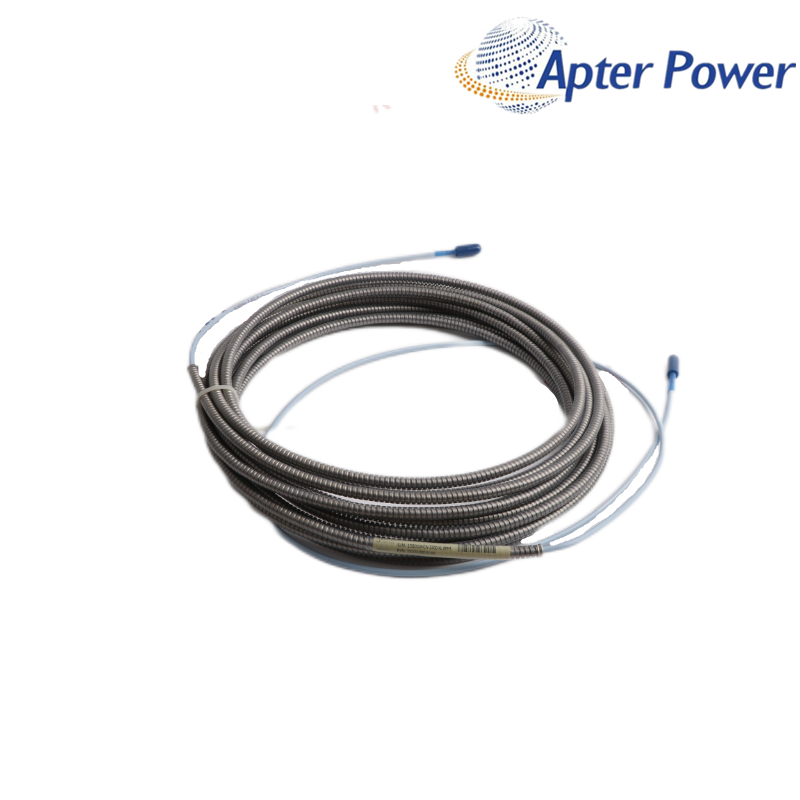

Bently Nevada 330130-085-01-00 is a 8.5 m (27.9 ft) armored cable for matched 3300 XL 8 mm proximity measurement systems.
Item NO.:
330130-085-01-00Order(MOQ):
1Goods Stock:
34Payment:
T/TLead Time：
In stockWeight:
0.86KGDimension:
30x28x3cmDescription:
CABLEPrice:
AskSend the complete nameplate, installed probe/cable/sensor context, quantity and destination. We support new original, discontinued and difficult-to-source industrial parts.
Manager: JimPei
0.5 m probe pairing and long armored route control
As the longest armored extension in this batch, 330130-085-01-00 leaves only a supported 0.5 m probe lead within the documented nine-metre system. The selected Proximitor Sensor must match that complete electrical length.
Route planning becomes central with 330130-085-01-00: the full 8.5 m assembly, armor termination, glands, enclosure space and connector supports need to be surveyed before the outage begins. Excess length cannot be cut or concealed in a forced bend.
Even with armor, 330130-085-01-00 must stay within the stated minimum bend radius and remain free of pull at both ClickLoc ends. After installation, verify connector seating and probe gap before treating a channel change as an electronics problem.
Fast release checks
A supported 0.5 m probe lead plus 8.5 m extension cable reaches the required total.
Long armor needs verified bends, glands, termination space and support points.
The cable cannot be cut, spliced or forced into a compressed storage loop.
Official configuration plus supply terms
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL 8 mm Extension Cable |
| Ordering family | 330130 |
| Cable length option | 8.5 m (27.9 ft) |
| Cable / connector option | Armored cable |
| System matching | Probe lead plus extension cable must equal the selected Proximitor Sensor total length |
| Minimum bend radius | 25.4 mm (1.0 in) |
| Agency approval option | Not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Engineering focus
Armor adds mechanical protection while the lowest documented temperature limit of the complete chain remains controlling.
Preserve the 25.4 mm bend radius and protect the armor termination and connectors from pull and repeated flexing.
Primary technical risk
The 8.5 m armored cable leaves only a 0.5 m supported probe lead in a nine-metre chain. Verify that pairing before routing, then survey every gland, bend and support point. Stop if excess length would require cutting, splicing or a compressed loop that loads the armor termination.
Before ordering or commissioning
The nine-metre arithmetic and the physical armor path must both pass before installation begins.
Buyer and engineer situations
Confirm a supported 0.5 m probe lead. A different lead length changes the documented total and requires another extension selection.
No. That would not be the documented nine-metre electrical total, and tight coiling also creates a mechanical risk.
Measure conduit bends, gland openings, enclosure space and support points for the full armored run and both connector ends.
No. Maintain the manufacturer 25.4 mm minimum bend radius and avoid load at the armor termination.
Inspect tight bends, armor termination, connector seating, probe gap and the 0.5 plus 8.5 m total before changing electronics.
Provide the probe and Proximitor labels, route drawing, gland size, armor requirement, quantity, destination and clear photographs of the existing cable.
ApterPLC supply capability
Industrial automation parts: We source control, monitoring, drive, I/O and measurement components for maintenance and project demand.
Difficult-to-source support: Complete labels and system context help us review current and discontinued requirements accurately.
Global delivery coordination: RFQ review includes quantity, destination and practical shipment planning.
Official naming references
Apter's 1 Year Warranty
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Aptersells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names/product images, trademarks, brands and logos used on this website are the property of their respective owners. Product descriptions, depictions or sales with these names, images, trademarks, brands and logos are for identification purposes only and do not imply any affiliation or authorization to any rights holder.
The official family document defines the 330130 ordering options, but we could not verify an official English PDF that directly identifies this complete model. Send the full probe, extension-cable and Proximitor Sensor labels so the applicable manufacturer document can be checked without assuming compatibility.
|
