Length arithmetic
Add the probe lead and 8.0 m cable length, then match the total to the connected sensor requirement.
Item NO.:
330130-080-03-05Order(MOQ):
1Goods Stock:
7Payment:
T/TLead Time：
In stockWeight:
0.22KGDimension:
8.8x3.5x7cmDescription:
ARMORED CABLEPrice:

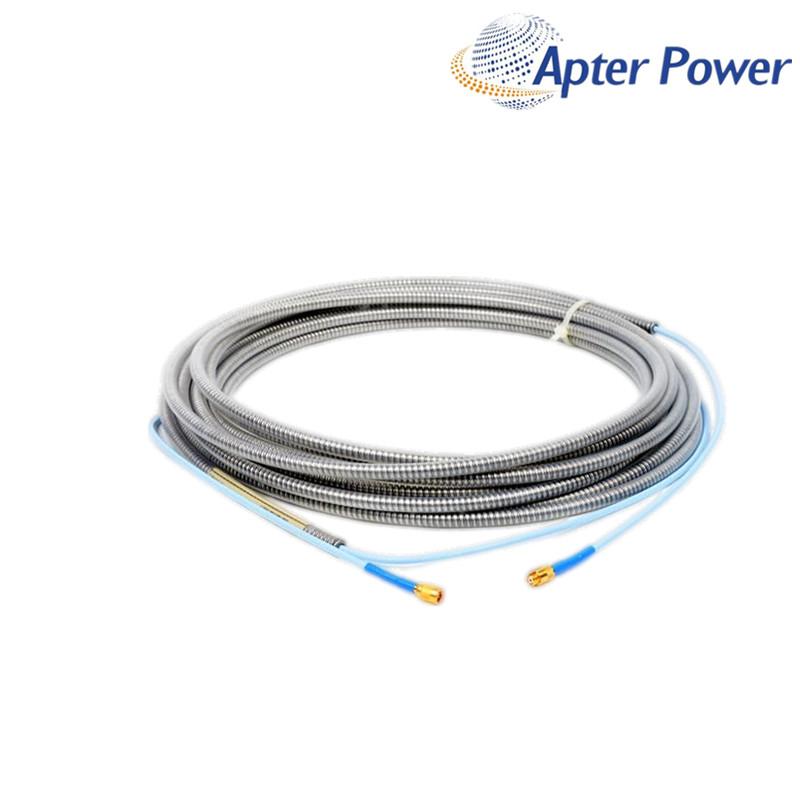

AskAn 8.0 m armored 3300 XL extension cable with a connector protector and multiple agency approvals.
330130-080-03-05 is identified as an 8.0 m armored 3300 XL extension cable with a connector protector and multiple agency approvals.
For 330130-080-03-05, the full coded configuration and its connected system should be checked together. A matching connector or similar appearance does not establish interchangeability.
Before quoting 330130-080-03-05, provide the complete label and photos of the mounting point, cable route and connected equipment so the selected part can be verified against the installed chain.
Add the probe lead and 8.0 m cable length, then match the total to the connected sensor requirement.
Support the armor and protect both ClickLoc joints from strain, contamination and sharp bends.
Confirm that the delivered approval marking matches the hazardous-area and project requirement.
| Manufacturer | Bently Nevada |
|---|---|
| System family | 3300 XL 8 mm Proximity Transducer System |
| Component | Extension cable |
| Cable length | 8.0 m |
| Cable construction | Armored |
| Connector protection | Included |
| Agency approval | Multiple approvals |
| Cable electrical length tolerance | +20%, -0% |
| Minimum bend radius | 25.4 mm |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
No. It identifies the extension-cable length. The installed probe lead must be added and the resulting total confirmed against the required 3300 XL 8 mm Proximitor system length.
No. This model is armored, includes connector protection and carries option 05 approvals. Standard and FluidLoc cables of the same length are different configurations.
It identifies the published multiple-approval option. Where site certification applies, the delivered nameplate and approval evidence should be confirmed with the quotation.
No. The probe and Proximitor Sensor must belong to the matched 3300 XL 8 mm system and use the correct total electrical length.
Provide the complete cable nameplate, both connector photos, probe lead length, Proximitor Sensor nameplate, required approvals, quantity and delivery country.
The supplied product is covered for 12 months under ApterPLC's sales terms. Retain the product nameplate, packaging and transaction record for warranty assessment.
|
