Length match
Add the 8.0 m cable to the probe lead and match the system length.
Item NO.:
330130-080-01-CNOrder(MOQ):
1Goods Stock:
16Payment:
T/TLead Time：
In stockWeight:
0.98KGDimension:
30.5x32.5x4.5cmDescription:
EXTENSION CABLEPrice:

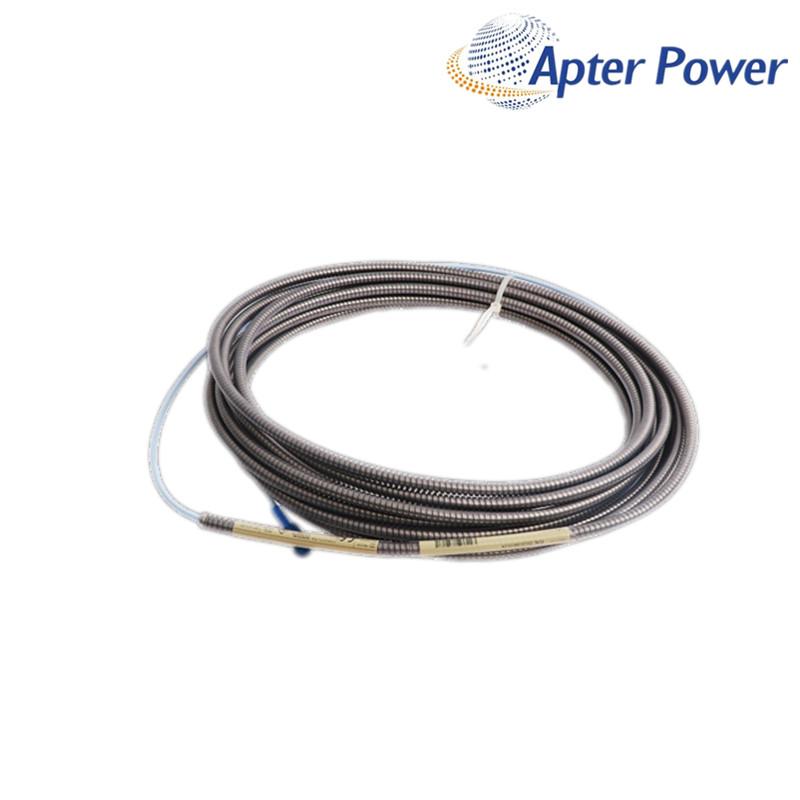

Ask330130-080-01-CN is the complete Bently Nevada ordering code for this configuration. An 8.0 m armored 75 Ω triaxial extension cable with gold-plated ClickLoc connectors and a China approval option.
For 330130-080-01-CN, confirm the coded mounting geometry, cable or lead construction, connector option and system length against the installed measurement chain.
Before quoting 330130-080-01-CN, ApterPLC checks the full nameplate and connected-component labels so a visually similar part is not treated as an exact replacement.
Add the 8.0 m cable to the probe lead and match the system length.
Respect the minimum bend radius and protect both connector joints.
Keep the CN suffix and supplied China documentation with the order.
| Manufacturer | Bently Nevada |
|---|---|
| Product family | 3300 XL 8 mm |
| Component | Extension cable |
| Cable length | 080 · 8.0 m |
| Cable / armor option | 01 · armored cable |
| Country-specific approval | CN · China option |
| Cable type | 75 Ω triaxial FEP-insulated cable |
| Armor material | Flexible AISI 302/304 stainless steel with FEP outer jacket |
| Connector material | Gold-plated brass and gold-plated beryllium copper |
| Minimum bend radius | 25.4 mm |
| 8.0 m core resistance | 1.76 ± 0.26 Ω |
| 8.0 m jacket resistance | 0.53 ± 0.11 Ω |
| Capacitance | 69.9 pF/m typical |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
An 8.0 m armored 75 Ω triaxial extension cable with gold-plated ClickLoc connectors and a China approval option.
No. Confirm the complete order code, cable length, armor or cable option and approval suffix.
Respect the minimum bend radius and protect both connector joints.
Add the 8.0 m cable to the probe lead and match the system length.
Send a clear nameplate photo for 330130-080-01-CN, the complete order code, connected-component labels and photos of the installed mounting or cable route.
ApterPLC provides a one-year warranty on this item, with a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names and trademarks are used for identification only.
Use the model-relevant document below to review the configuration, installation details and system requirements for 330130-080-01-CN.
|
