8 mm extension cable
Item NO.:
330130-080-01-05Order(MOQ):
1Goods Stock:
17Payment:
T/TLead Time：
In stockWeight:
0.78KGDimension:
28x28x3cmDescription:
3300 XL 8 MM ARMORED EXTENSION CABLEPrice:
Ask

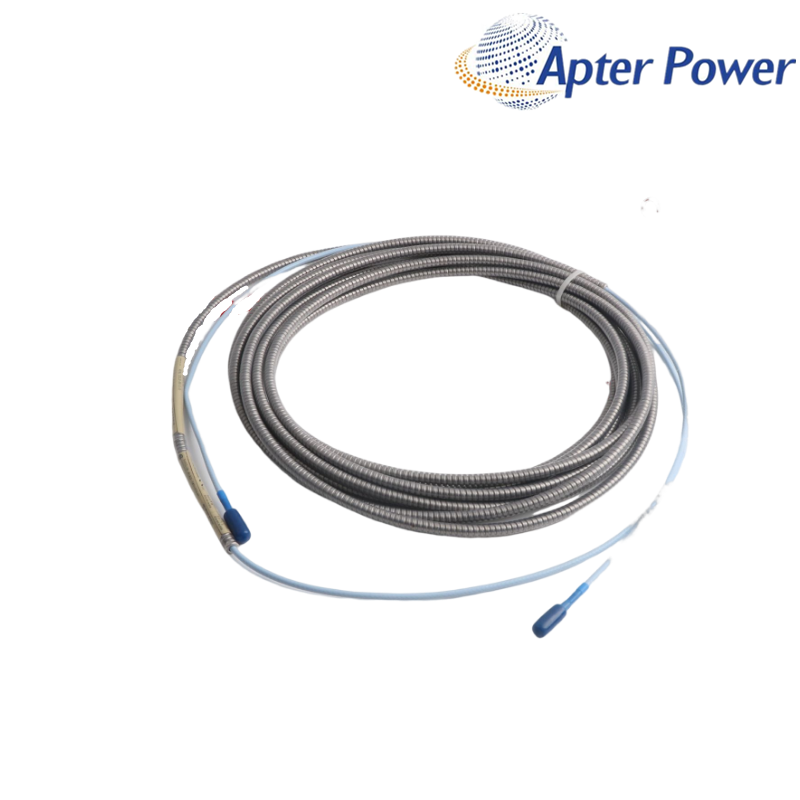

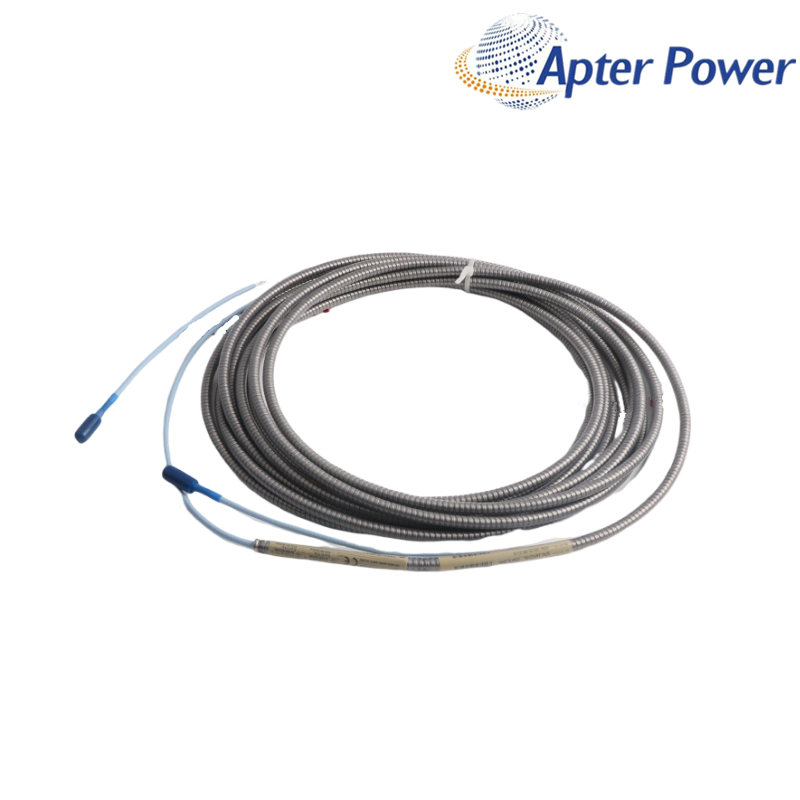

Eight-metre armored cable for a matched 3300 XL 8 mm proximity signal chain.
Bently Nevada 330130-080-01-05 belongs to the 3300 XL 8 mm Proximity Transducer System. Eight-metre armored cable for a matched 3300 XL 8 mm proximity signal chain.
8 mm extension cable
8.0 m length
Armored cable
CSA / ATEX / IECEx
| Cable length | 8.0 m |
|---|---|
| Cable construction | FEP-insulated cable with stainless-steel armor |
| Connector protection | No protector specified |
| Approval option | CSA / ATEX / IECEx |
| Matched family | 3300 XL 8 mm |
| Minimum bend radius | 25.4 mm |
| Cable operating temperature | -51 to +177 °C |
| System rule | Probe lead + extension cable = Proximitor length |
| Current backend stock | 17 |
| Current backend weight | 0.78KG |
| Current backend dimensions | 28x28x3cm |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Capture the installed identity and mechanical context before disconnection.
Compare the exact family, length, mounting and connector details.
Review the receiving system, scale and commissioning response.
Include every order-code segment, manufacturer nameplate and approval marking.
Show the connected probe, cable, sensor, transmitter, rack module and receiving input as applicable.
Current backend stock, packed weight and dimensions remain unchanged until new warehouse evidence is supplied.
Add the probe lead length to this 8.0 m extension cable and compare the total with the 3300 XL 8 mm Proximitor Sensor system-length marking.
No. The armor improves mechanical protection but the cable still requires at least a 25.4 mm bend radius and a route without crushing or connector side load.
No protector is specified for this option. Review the installed junction environment and provide suitable connection protection when the application requires it.
Match the offered certificate package to the ordered CSA / ATEX / IECEx option and the project area classification before release.
Check the matched 8 mm family, total electrical length, clean ClickLoc connections, cable route and channel baseline before altering calibration.
Complete-label comparison before quotation.
Support for maintenance and project spares.
Quotation, delivery and after-sales communication.
Coverage begins on the shipment date unless the confirmed quotation states otherwise. Scope and available remedy follow the confirmed quotation and sales agreement.
Keep the product label and complete order reference.
Add connector or terminal photos and associated signal-chain labels.
Describe the observed symptom and operating context clearly.
Baker Hughes 3300 XL 8 mm Datasheet 141194 provides the family specifications, ordering table and installation context used for this review.
Exact-version note: 8.0 m cable · stainless-steel armor · CSA / ATEX / IECEx approval option
