System length
Add the 8.0 m cable to the connected probe lead.
Item NO.:
330130-080-00-00/CNOrder(MOQ):
1Goods Stock:
13Payment:
T/TLead Time：
In stockWeight:
0.35KGDimension:
20.5x22.4x3.3cmDescription:
CABLE EXTENSIONPrice:

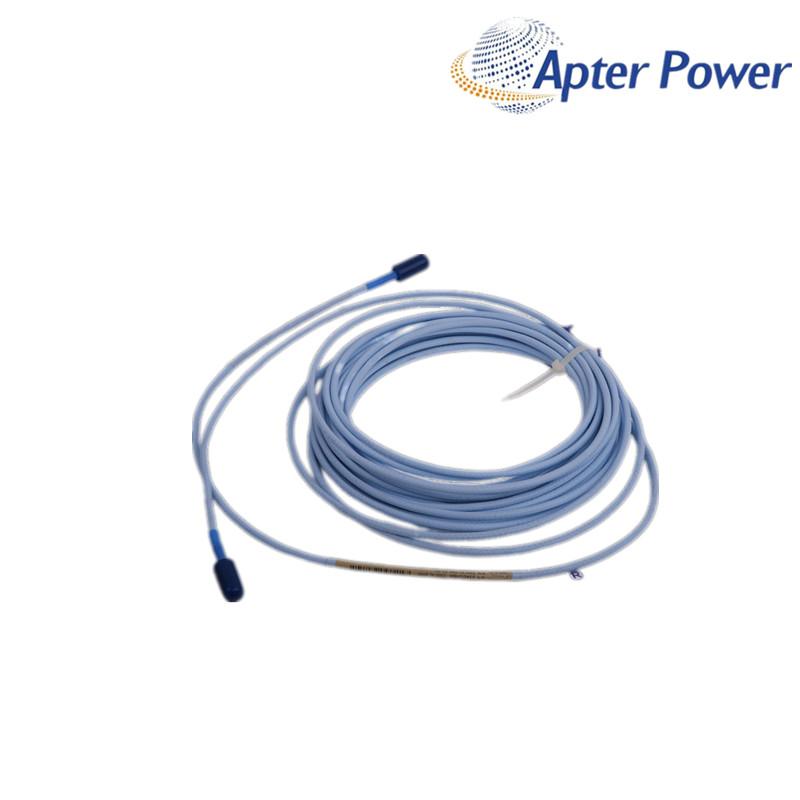

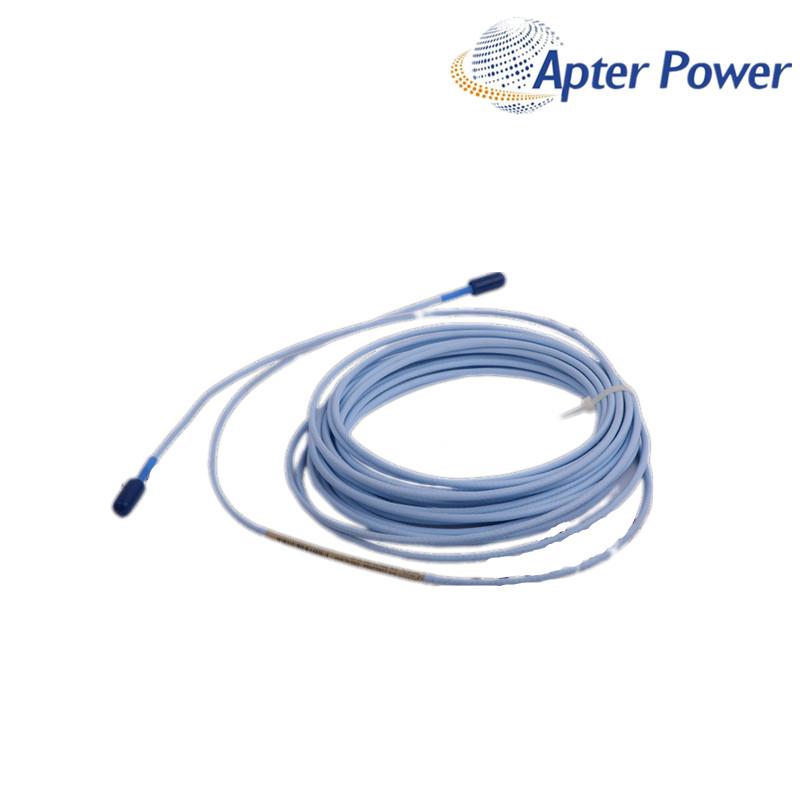

AskAn 8.0 m standard 3300 XL 8 mm extension cable with base option 00 and the documented China country-specific suffix.
330130-080-00-00/CN is a 3300 XL 8 mm extension cable record. Field 080 specifies 8.0 m cable length, and field 00 specifies standard non-armored construction without a connector protector.
For 330130-080-00-00/CN, the second 00 is the base no-approval-required selection. The /CN suffix is retained separately as the China country-specific approval option documented for the 330130 family.
Use 330130-080-00-00/CN only after confirming that the extension-cable length plus the connected probe lead equals the Proximitor Sensor system length. Connector fit alone does not prove a correct matched chain.
Add the 8.0 m cable to the connected probe lead.
Protect the standard non-armored cable and both ClickLoc joints.
Keep the /CN suffix and supplied China documentation with the order.
| Manufacturer | Bently Nevada |
|---|---|
| Component | Extension cable |
| System family | 3300 XL 8 mm proximity transducer system |
| Cable length | 080 — 8.0 m |
| Cable construction | 00 — standard cable; non-armored |
| Connector protector | Not included |
| Base approval option | 00 — not required |
| Country-specific suffix | /CN — China option |
| Cable type | 75 Ω triaxial extension cable |
| Minimum bend radius | 25.4 mm (1.0 in) |
| Selection boundary | Probe lead plus extension cable must equal Proximitor Sensor system length |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Field 080 specifies an 8.0 m extension cable for the 3300 XL 8 mm system.
No. Cable option 00 is the standard non-armored construction without a connector protector.
It retains the China country-specific approval option separately from the base 00 cable ordering structure.
Add the 8.0 m extension cable to the connected probe lead and match that total to the Proximitor Sensor system length.
Capture the full cable label, both connector ends, connected probe label and Proximitor Sensor label.
Compare the exact code, length, cable construction, connector protection, country suffix and complete connected chain.
Share the exact nameplate, mounting dimensions, cable route, connected component labels and approval documents. ApterPLC can then prepare a model-focused quotation without treating connector fit or a family name as proof of interchangeability.
ApterPLC provides a one-year warranty on this item, giving buyers a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names, images and trademarks are used for identification only.
The English manufacturer documents below are hosted by ApterPLC for product selection and technical review.
3300 XL 8 mm Proximity Transducer System Datasheet · 141194 Rev. ANOpen the English manufacturer datasheet for ordering information, technical specifications and system guidance. Approvals Quick Reference Guide · 108M1756 Rev. AVOpen the English manufacturer approval guide for country-specific ordering options.Browse 40 recommended industrial automation models and open each exact-model search on ApterPLC.
