Item NO.:
330130-075-00-05Order(MOQ):
1Goods Stock:
10Payment:
T/TLead Time：
In stockWeight:
0.8KGDimension:
2.6x25.8x24cmDescription:
EXTENSION CABLEPrice:

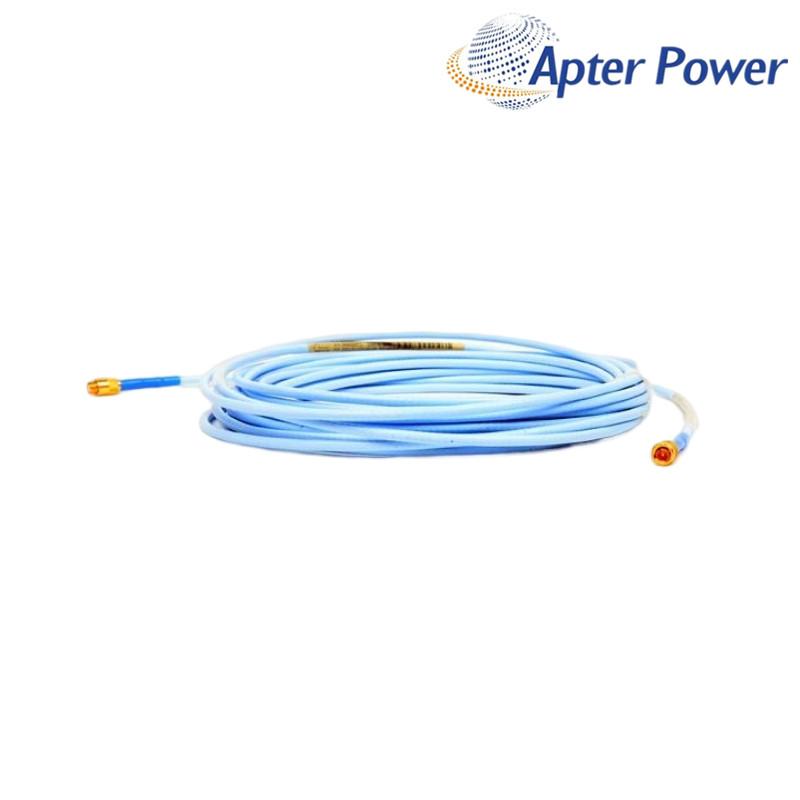

AskA 7.5 m standard 3300 XL extension cable without connector protectors and with the multiple-approval option.
330130-075-00-05 is a 7.5 m extension cable for the 3300 XL 8 mm proximity transducer system. It links the probe lead to the Proximitor Sensor and preserves the electrical length required by the calibrated signal chain.
Cable option 00 gives 330130-075-00-05 the standard unarmored construction without connector protectors. The route therefore needs suitable support and environmental protection at the ClickLoc connection points.
The final 05 identifies the multiple-approval execution of 330130-075-00-05. Selection still depends on the connected probe-lead length because a 7.5 m cable only creates the correct system when the total matches the Proximitor Sensor requirement.
| MODEL-RELEVANT TECHNICAL DATA | |
|---|---|
| Manufacturer | Bently Nevada |
| Product family | 3300 XL 8 mm proximity transducer system |
| Component | Extension cable |
| Cable length | 7.5 m |
| Cable construction | Standard unarmored cable |
| Connector protectors | Not included |
| Insulation family | FEP |
| Agency option | 05 - multiple approvals |
| Cable material | 75 Ω triaxial; FEP insulated |
| Minimum cable bend radius | 25.4 mm |
| Nominal core DC resistance | 1.65 ±0.25 Ω at 7.5 m |
| Nominal jacket DC resistance | 0.49 ±0.10 Ω at 7.5 m |
| Typical capacitance | 69.9 pF/m |
| Cable temperature range | -52°C to +177°C operating and storage |
| Connector material | Gold-plated brass or gold-plated beryllium copper |
| Maximum connector torque | 0.565 N·m |
| ClickLoc tightening | Finger tight between two 3300 XL gold click connectors |
| SUPPLY & LOGISTICS | |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
No. Add the connected probe-lead length and match the resulting total to the Proximitor Sensor calibration length; the cable route by itself is not the electrical selection rule.
The published minimum bend radius is 25.4 mm. Tighter routing can stress the triaxial construction and should not be used merely to fit an existing conduit path.
No. Option 00 is standard unarmored cable without connector protectors, and Bently Nevada does not recommend silicone tape where the connection is exposed to turbine oil.
No. The standard FEP-insulated extension cable is rated to +177°C. A hotter route requires review of the ETR extension-cable family and the rest of the chain.
For the 7.5 m standard cable, the nominal core resistance is 1.65 ±0.25 Ω and the nominal jacket resistance is 0.49 ±0.10 Ω. Measurements should be interpreted with connector and instrument lead resistance considered.
The final 05 is the CSA, ATEX and IECEx approval selection in the ordering table; the supplied certificate package should still be checked against the installation.
Share the exact nameplate, connected component labels and installation context. ApterPLC can then prepare a clearer model-focused quotation.
ApterPLC provides a one-year warranty on every item we sell, giving buyers a clear support path after delivery.
ApterPLC can match the available Bently Nevada technical reference to your complete order code and installed signal-chain details. Please send a readable nameplate, the document type you need and the connected system context.
