Protected connector joint
The 02 option supplies the standard cable with connector protection for the connection.

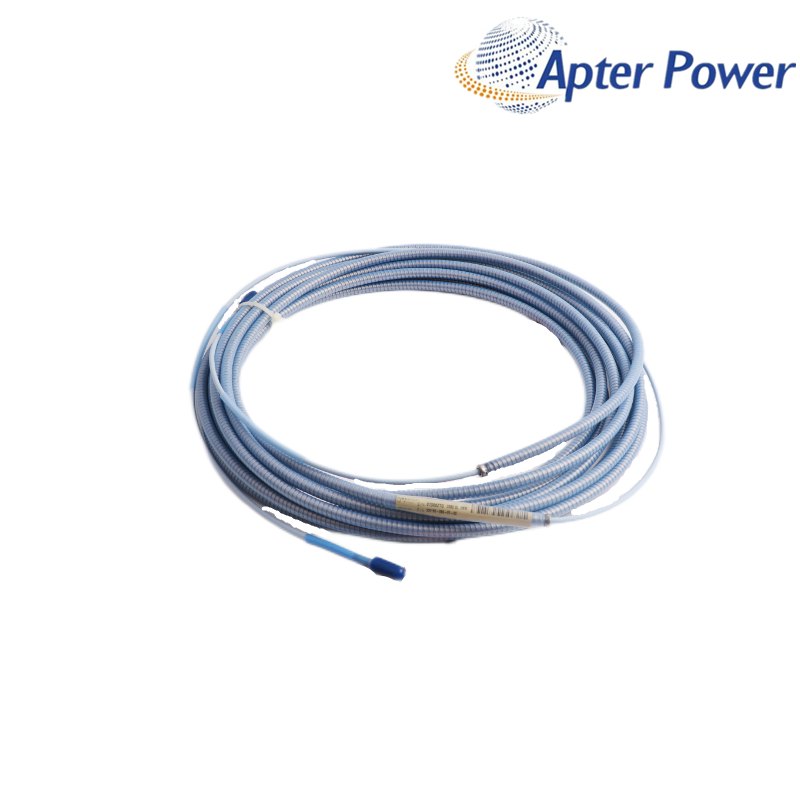

Bently Nevada 330130-045-02-05 is a 4.5 m (14.8 ft) standard cable with connector protector for matched 3300 XL 8 mm proximity measurement systems.
Item NO.:
330130-045-02-05Order(MOQ):
1Goods Stock:
32Payment:
T/TLead Time：
In stockWeight:
0.2KGDimension:
20.5x22.5x3.5cmDescription:
EXTENSION CABLEPrice:
AskSend the complete nameplate, installed probe/cable/sensor context, quantity and destination. We support new original, discontinued and difficult-to-source industrial parts.
Manager: JimPei
connector protection plus approval acceptance
Two separate project decisions meet in 330130-045-02-05: the 02 connector-protector option and the 05 agency-approval selection. The product remains a 4.5 m standard extension cable, but its route and acceptance checks differ from the unprotected, non-approval version.
In a supported five-metre chain, 330130-045-02-05 works with a 0.5 m probe lead and the matching Proximitor Sensor. The delivered marking, certificate conditions, area classification and installation drawing still govern classified-area acceptance.
Installation planning for 330130-045-02-05 must leave enough clearance for the protected joint. Where restrictive conduit prevents passage, use the manufacturer field-installation approach for connector protection rather than forcing the assembly through the route.
Fast release checks
The 02 option supplies the standard cable with connector protection for the connection.
The 05 option is listed for CSA, ATEX and IECEx approvals; inspect the delivered marking.
A supported 0.5 m probe lead plus 4.5 m extension cable completes the intended total.
Official configuration plus supply terms
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL 8 mm Extension Cable |
| Ordering family | 330130 |
| Cable length option | 4.5 m (14.8 ft) |
| Cable / connector option | Standard cable with connector protector |
| System matching | Probe lead plus extension cable must equal the selected Proximitor Sensor total length |
| Minimum bend radius | 25.4 mm (1.0 in) |
| Agency approval option | CSA, ATEX, IECEx Approvals |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Engineering focus
Verify the delivered approval marking and all certificate and site conditions before classified-area acceptance.
Plan conduit and enclosure clearance around the protector; use field installation rather than forced passage where the route is restrictive.
Primary technical risk
Connector protection and approval marking solve different risks. Confirm the protected joint can pass or be assembled within the route, then verify the delivered certification details against the project conditions. Stop installation if either the physical protection method or the applicable approval boundary remains unresolved.
Before ordering or commissioning
Release the item only when the five-metre chain, protector installation method, delivered marking and site approval conditions are all accepted.
Buyer and engineer situations
Yes, those lengths total five metres when the probe and panel-mounted system components are the supported 3300 XL 8 mm versions.
Do not force it. Plan the manufacturer field-installation approach or revise the route so the connector and protector remain undamaged and correctly assembled.
No. Check the delivered marking, certificate conditions, area classification, enclosure and installation drawing before acceptance.
Protection does not correct contamination, incomplete ClickLoc seating, a loaded joint or a disturbed probe gap. Inspect those conditions before changing monitor settings.
Provide the full model, required approval, area classification, installation location, component labels, quantity and destination, and request photographs of delivered markings.
Quarantine the item until the label and applicable approval can be confirmed. Connector protection is not a substitute for approval identification.
