Selection
- Add probe and extension-cable lengths before ordering.
- Confirm whether the route needs armor only or armor plus connector protectors.
Item NO.:
330130-045-01-05Order(MOQ):
1Goods Stock:
16Payment:
T/TLead Time：
In stockWeight:
0.25KGDimension:
7.8x3x6.2cmDescription:
EXTENSION CABLEPrice:

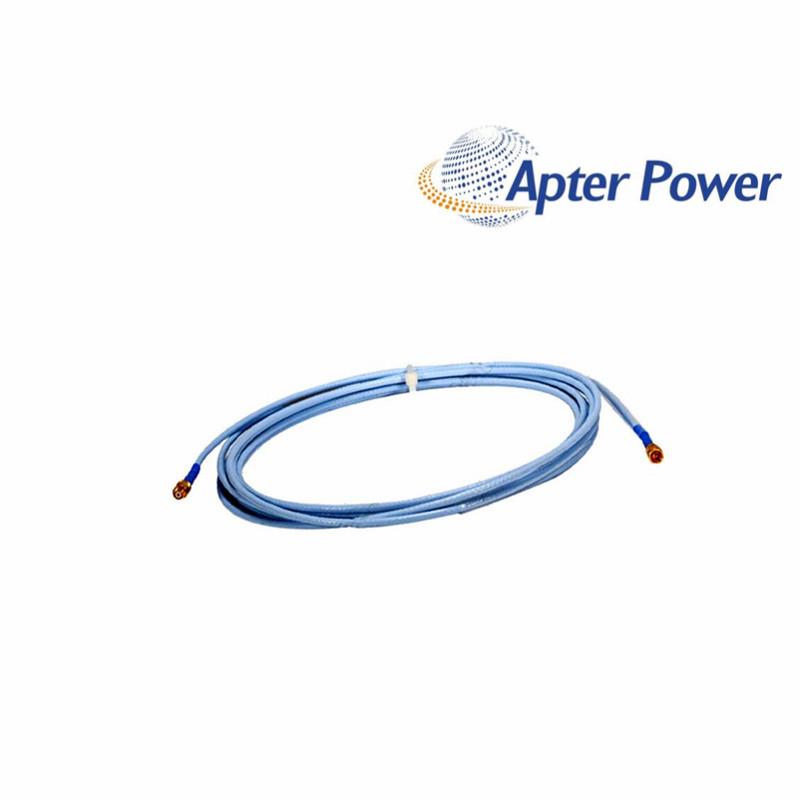

AskA 4.5 m armored extension cable with multiple approvals for completing a matched 5.0 m 3300 XL 8 mm system.
A calibrated proximity system cannot be lengthened by adding cable at random. The 4.5 m length of 330130-045-01-05 is commonly used with a 0.5 m probe to complete the 5.0 m electrical length required by a matching 3300 XL 8 mm Proximitor Sensor.
Mechanical armor gives 330130-045-01-05 useful protection along exposed plant routes, while the FEP-insulated 75 Ω triaxial construction carries the probe signal. The armor still benefits from proper support so it does not pull on either ClickLoc connection.
This code 01 version does not include connector protectors, even though the cable itself is armored. Where oil, moisture or contamination is present, 330130-045-01-05 should be installed with the site-approved joint protection rather than treated as a fully sealed assembly.
Add the probe lead to this 4.5 m cable and compare the sum with the Proximitor system length. A common 5 m arrangement is a 0.5 m probe plus this cable; do not add it to an already complete 5 m chain.
Support the cable at suitable intervals, avoid tight bends at both ClickLoc ends and prevent armor weight from pulling on the probe. Keep the route clear of hot surfaces and moving machine parts.
No. Code 01 provides armored cable but not connector protectors. Use the site-approved protection method and keep each joint clean, fully seated and inspectable.
Verify both connectors, continuity, insulation condition, total probe-plus-cable length, stable gap voltage and dynamic response at the recorded machine state.
Inspect abrasion and bend points, then monitor bias while gently checking accessible connectors. Confirm probe gap and sensor supply before deciding that the cable itself is defective.
Confirm 4.5 m length, armored option 01, approval option 05 and the absence of connector protectors. Also verify that the cable belongs to the 3300 XL 8 mm chain.
Supplied products are covered for 12 months under ApterPLC sales terms. Keep the complete nameplate, original packaging and transaction record so the exact unit and revision can be identified during support.
Support: sales1@apterpower.com · +8618020776782
Use this document to confirm the 4.5 m armored extension cable option, connector selection, system-length matching, cable specifications and the relevant connector drawings.
