Match five metres electrically
A supported 0.5 m probe lead and this 4.5 m cable form the intended five-metre chain.

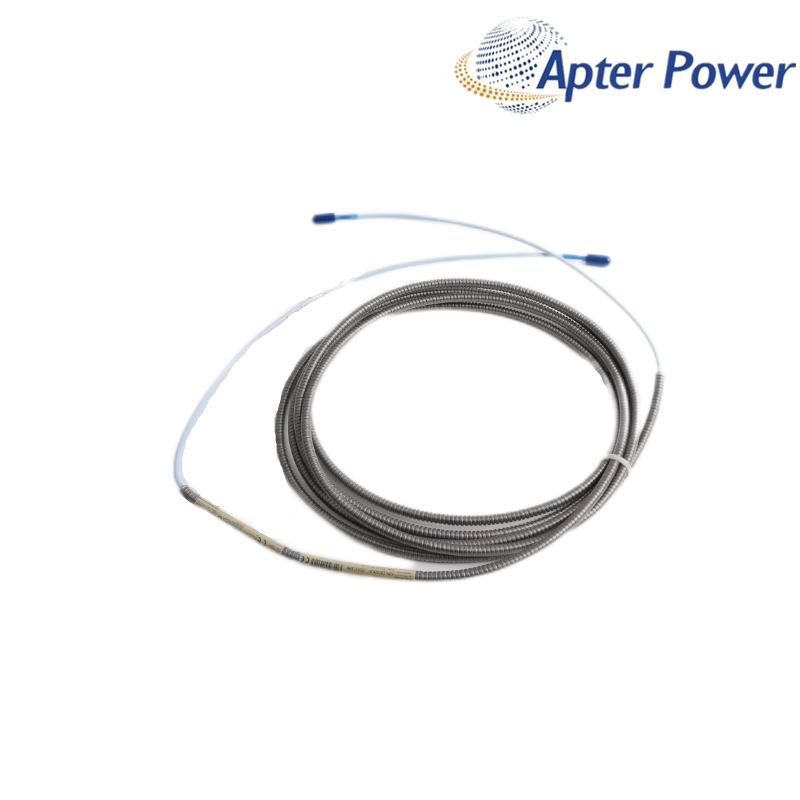

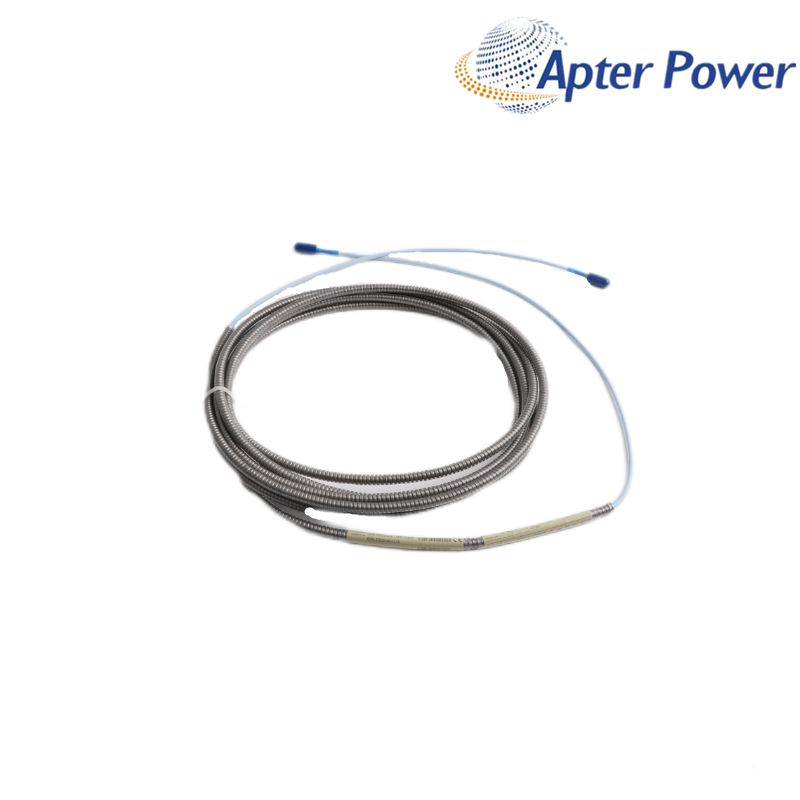

Bently Nevada 330130-045-01-00 is a 4.5 m (14.8 ft) armored cable for matched 3300 XL 8 mm proximity measurement systems.
Item NO.:
330130-045-01-00Order(MOQ):
1Goods Stock:
35Payment:
T/TLead Time：
In stockWeight:
0.44KGDimension:
26x26x3cmDescription:
EXTENSION CABLEPrice:
AskSend the complete nameplate, installed probe/cable/sensor context, quantity and destination. We support new original, discontinued and difficult-to-source industrial parts.
Manager: JimPei
armor clearance and five-metre electrical matching
Mechanical protection is built into 330130-045-01-00, a 4.5 m armored extension cable for the 3300 XL 8 mm transducer chain. With a supported 0.5 m probe lead, the cable can complete the required five-metre system while protecting exposed sections of the route.
Before the outage crew pulls 330130-045-01-00, the conduit bends, gland opening and enclosure entry need enough clearance for the armor termination and ClickLoc connector. A route that fits a standard cable may not accept the armored assembly.
Electrical matching still controls the release: 330130-045-01-00 must correspond to the selected five-metre Proximitor Sensor. Support the armor so its termination and connector are not used as strain relief or flex points.
Fast release checks
A supported 0.5 m probe lead and this 4.5 m cable form the intended five-metre chain.
Confirm bends, glands and enclosure entries before the armored assembly is pulled.
Support the cable so the armor end and ClickLoc joint do not carry repeated movement.
Official configuration plus supply terms
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL 8 mm Extension Cable |
| Ordering family | 330130 |
| Cable length option | 4.5 m (14.8 ft) |
| Cable / connector option | Armored cable |
| System matching | Probe lead plus extension cable must equal the selected Proximitor Sensor total length |
| Minimum bend radius | 25.4 mm (1.0 in) |
| Agency approval option | Not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Engineering focus
Armor improves mechanical route protection but does not change the documented cable temperature range or system-length requirement.
The official 25.4 mm minimum bend radius still applies; provide clearance for the armor ferrule and connector envelope.
Primary technical risk
Armor improves mechanical protection but does not permit forced bends or pulling through an undersized gland. Measure the tightest route and connector clearance before the shutdown, support the armor termination and preserve the stated bend radius. Stop if the cable must be twisted, crushed or loaded at either ClickLoc connection.
Before ordering or commissioning
Accept the replacement only when the five-metre chain, gland opening, bend clearance and connector support are all confirmed.
Buyer and engineer situations
Choose the armored configuration when the verified route needs its added mechanical protection. The electrical system length and component family must still match.
Measure the smallest bend, gland opening and enclosure entry for the armor termination and connector. Change the route rather than forcing the assembly.
Yes, that supported length combination totals five metres. Confirm the exact labels and component condition before commissioning.
Yes. Support the cable so the armor termination and ClickLoc joint carry no pull, repeated flexing or equipment vibration.
Request clear images of the full label, both connectors and the armor termination, together with the probe and Proximitor labels from the installed chain.
Inspect the tightest bend, armor termination and connector seating, then confirm probe gap and total system length before changing electronics.
ApterPLC supply capability
Industrial automation parts: We source control, monitoring, drive, I/O and measurement components for maintenance and project demand.
Difficult-to-source support: Complete labels and system context help us review current and discontinued requirements accurately.
Global delivery coordination: RFQ review includes quantity, destination and practical shipment planning.
Official naming references
Apter's 1 Year Warranty
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names/product images, trademarks, brands and logos used on this website are the property of their respective owners. Product descriptions, depictions or sales with these names, images, trademarks, brands and logos are for identification purposes only and do not imply any affiliation or authorization to any rights holder.
The official family document defines the 330130 ordering options, but we could not verify an official English PDF that directly identifies this complete model. Send the full probe, extension-cable and Proximitor Sensor labels so the applicable manufacturer document can be checked without assuming compatibility.
|
