Five-metre chain option
A supported 0.5 m probe lead plus 4.5 m extension cable can produce the required five-metre total.
Item NO.:
330130-045-00-05Order(MOQ):
1Goods Stock:
33Payment:
T/TLead Time：
In stockWeight:
0.16KGDimension:
19x18x2cmDescription:
CABLE EXTENSIONPrice:
AskSend the full probe, extension-cable and Proximitor labels, required system length, route and protection details, quantity and destination. We support current, discontinued and difficult-to-source industrial parts.
Compliance-gated procurement guidance with system-length arithmetic

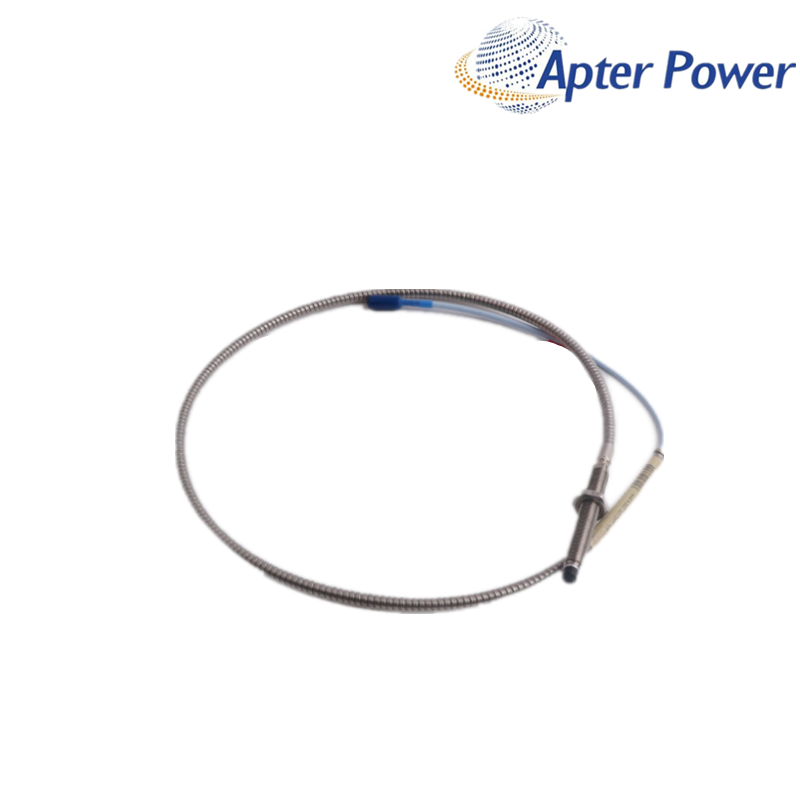

330130-045-00-05 is a 4.5 m standard extension cable with the manufacturer 05 agency-approval ordering option for the 3300 XL 8 mm proximity system. A supported 0.5 m probe lead can combine with this cable to complete a five-metre electrical chain.
330130-045-00-05 should enter a project only after the delivered marking, applicable certificate conditions and installation drawing have been checked against the actual area classification and enclosure. The suffix supports product selection, but it does not by itself complete the site compliance assessment.
330130-045-00-05 uses standard rather than armored cable construction, so mechanical protection remains a separate route decision. Confirm the probe, extension cable and Proximitor identities together, then document both the system-length match and compliance review before release.
Decision highlights
A supported 0.5 m probe lead plus 4.5 m extension cable can produce the required five-metre total.
Delivered markings and manufacturer conditions must be checked against the classified-area design.
Compliance selection does not turn the cable into an armored route configuration.
Verified configuration
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL 8 mm Extension Cable |
| Ordering family | 330130 |
| Cable length option | 4.5 m (14.8 ft) |
| Cable / connector option | Standard cable |
| System matching | Probe lead plus extension cable must equal the selected Proximitor Sensor total length |
| Minimum bend radius | 25.4 mm (1.0 in) |
| Agency approval option | CSA, ATEX and IECEx ordering option |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Technical notes
330130-045-00-05 carries the 05 agency-approval ordering option, but project acceptance still depends on the delivered markings, certificate conditions and actual installation. Match those items to the area classification and enclosure before release. Stop if the required approval identity or special installation condition cannot be verified on the supplied item.
Where the supported probe lead is 0.5 m, this 4.5 m extension cable completes the nominal five-metre chain. Confirm the five-metre Proximitor Sensor and exact component family before procurement.
Decision gate
First verify the 0.5 m + 4.5 m system-length plan. Then check the delivered approval marking and installation conditions; neither review replaces the other.
Buyer and engineer support
Yes, those lengths total five metres when the probe and Proximitor Sensor are the supported 3300 XL 8 mm components. Confirm the three labels before ordering or commissioning.
Check the delivered approval marking, applicable certificate conditions, area classification, enclosure and installation drawing. Do not rely on the order-code suffix as the entire site acceptance record.
No. This remains standard cable construction, so abrasion, crushing, movement, bend radius and connector support must be handled by the installation design.
The manufacturer documents physical and electrical interchangeability for the relevant 5 mm/8 mm components, but a mixed chain is limited to non-XL performance. Confirm that boundary and the approval conditions before use.
Start with connector condition, cable support, bend points, probe gap and total system length. Approval status does not rule out a physical connection or measurement-chain fault.
Provide the full code, probe and Proximitor labels, area classification, required approval, installation location, quantity and destination. Ask for clear photographs of delivered markings before final acceptance.
Supply capability
Quality-focused sourcing: We support exact-model review for new original industrial automation parts.
Current, discontinued and hard-to-find products: Send the complete nameplate and system context so the required configuration can be checked before quotation.
Responsive after-sales support: Our team assists with delivery coordination, incoming identity checks and post-purchase questions.
Search references
Purchase protection
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Need warranty support for 330130-045-00-05? Send the order reference, full nameplate photograph and a clear description of the issue.
Product names and trademarks remain the property of their respective owners. Apter is an independent supplier.
Document access
No verified model-specific English PDF is currently linked to this page. Send the complete model and installed-system details so the applicable manufacturer document can be checked before procurement, installation or compliance decisions.
