Add the probe lead to 4.0 m and match that total to the installed Proximitor Sensor.

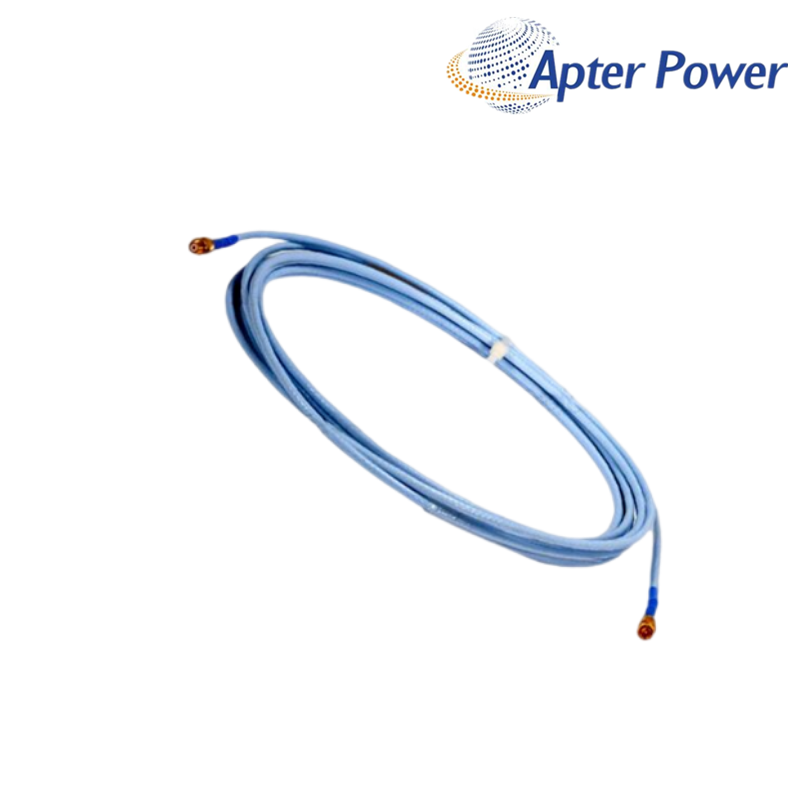

A 4.0 m armored extension cable with a connector protector and the documented multiple-approval option. 4.0 m cable · stainless-steel armor · connector protector · option 05.
Item NO.:
330130-040-03-05Order(MOQ):
1Goods Stock:
12Payment:
T/TLead Time：
In stockWeight:
0.2KGDimension:
13.0x1.9x19.1cmDescription:
CABLEPrice:
AskA 4.0 m armored extension cable with a connector protector and the documented multiple-approval option.
4.0 m cable · stainless-steel armor · connector protector · option 05For 3300 XL 8 mm installations that need mechanical cable protection, 330130-040-03-05 provides a 4.0 m armored extension path between the probe lead and Proximitor Sensor. The connector protector is part of this exact cable execution.
System calibration is based on total electrical length, so 330130-040-03-05 is chosen in relation to the probe lead and sensor option rather than cable length alone. A 1.0 m probe lead, for example, combines with this cable in a 5.0 m chain.
The final 05 field identifies the multiple-approval configuration for 330130-040-03-05. During replacement planning, the armor route, connector condition and required certificate package should be considered together.
3300 XL standard extension cable
4.0 m cable length
Armored cable with connector protector
CSA / ATEX / IECEx option
| MODEL-RELEVANT TECHNICAL DATA | |
|---|---|
| Manufacturer | Bently Nevada |
| Product family | 3300 XL 8 mm proximity transducer system |
| Component | Armored extension cable |
| Cable length | 4.0 m |
| Cable construction | 75 ohm triaxial FEP-insulated cable |
| Armor | Flexible AISI 302 or 304 stainless steel |
| Connector protection | Connector protector included |
| Minimum bend radius | 25.4 mm |
| Typical armored cable weight | 103 g/m |
| Agency option | 05 - CSA, ATEX and IECEx approvals |
| SUPPLY & LOGISTICS | |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Add the probe lead to 4.0 m and match that total to the installed Proximitor Sensor.
Confirm that armor is required and that the available path can respect the minimum bend radius.
The protector is part of option 03, so it should be included in replacement space and handling plans.
A clean, fully seated ClickLoc connection protects signal integrity better than judging the cable from outer armor alone.
Support the armored path so its weight and vibration do not load the connector or probe lead.
Use the 05 certificate requirement with the cable order code and installed area details during procurement.
The main ordering trap is treating 4.0 m as a standalone system length. This extension cable must complete the electrical length established by the probe lead and Proximitor Sensor, not replace that calculation.
Connector fit is only one condition. The probe lead plus this 4.0 m cable must also match the sensor system length and the installation must need the armored option.
It helps shield the connection in routed machinery environments, but adequate space and correct seating are still needed around the joined connectors.
A loose or contaminated connection, cable damage, an incorrect total length or a disturbed probe gap can all contribute. Reviewing the chain in that order is often efficient.
A tight coil can violate the bend-radius requirement and load the connectors. A larger supported loop is the safer routing choice.
Please include both connector ends, the cable label, armor route and the connected probe and sensor labels.
No. It identifies the approval execution; the 040 field controls the 4.0 m cable length.
Complete labels and order fields are compared before quotation.
Probe, cable, sensor and transmitter roles are reviewed together.
Commercial terms, documents and delivery are confirmed in writing.
Coverage begins on the shipment date unless the confirmed quotation states otherwise. Scope, exclusions and the available remedy follow the written quotation and sales agreement.
Provide the complete 330130-040-03-05 label and order reference.
Add mounting, connector and signal-chain photos.
Describe the symptom, operating state and first occurrence.
The compact PDF keeps the official manufacturer pages that matter most for this model: product identity, order-code structure, system context and the relevant specifications. It omits unrelated catalog pages so the key evidence is easier to find.
