Bently Nevada 330130-040-02-CN 3300 XL Standard Extension Cable

Products

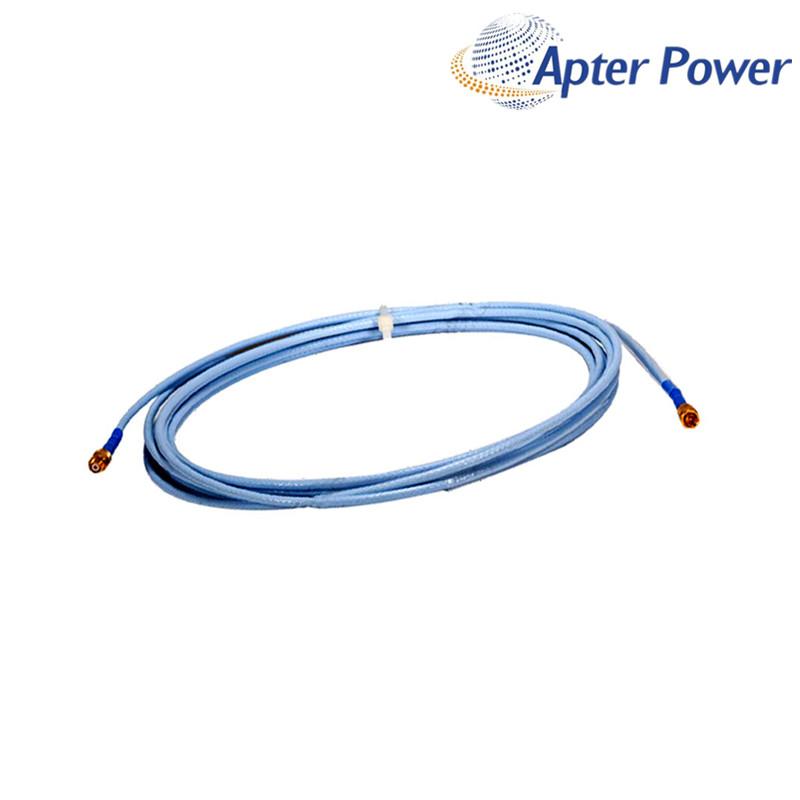

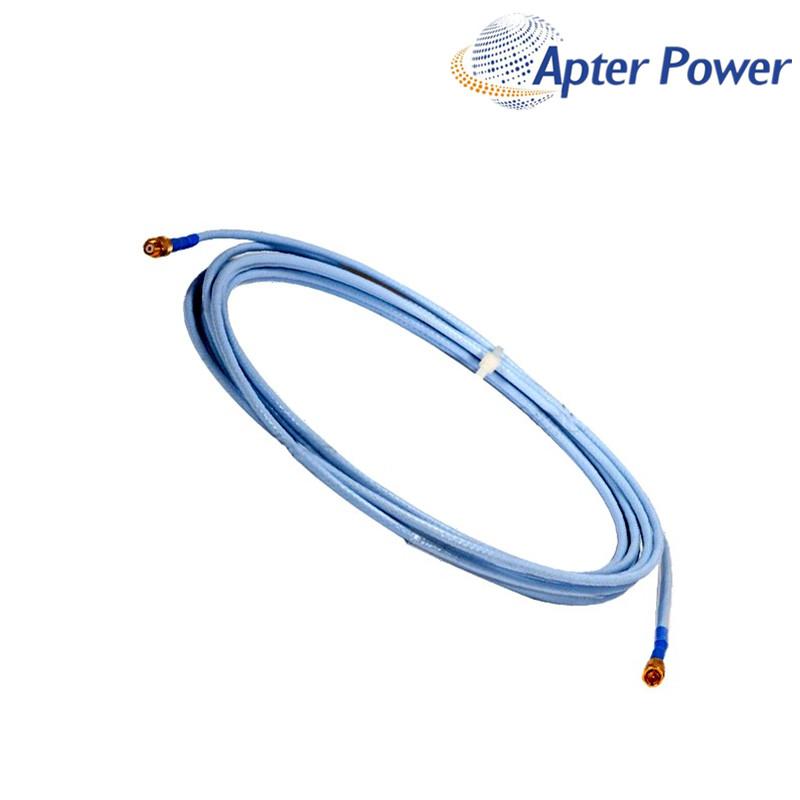

330130-040-02-CN 3300 XL Standard Extension Cable
330130-040-02-CN 3300 XL Standard Extension Cable
330130-040-02-CN 3300 XL Standard Extension Cable

Bently Nevada 330130-040-02-CN 3300 XL Standard Extension Cable

A 4.0 m standard 3300 XL extension cable with a protected ClickLoc connection and the China hazardous-area ordering option.

  • Item NO.:

    330130-040-02-CN

  • Order(MOQ):

    1

  • Goods Stock:

    9

  • Payment:

    T/T

  • Lead Time：

    In stock

  • Weight:

    0.22KG

  • Dimension:

    8.8x3.5x7cm

  • Description:

    3300 XL Standard Extension Cable

  • Price:

    Ask
Inquiry now
BENTLY NEVADA · CONDITION MONITORING
3300 XL 8 mm
330130-040-02-CN

3300 XL Standard Extension Cable

A 4.0 m standard 3300 XL extension cable with a protected ClickLoc connection and the China hazardous-area ordering option.

MANAGERJimPei
WHATSAPP / PHONE+8618020776782EMAILsales1@apterpower.com
01

Product Description

330130-040-02-CN is a 4.0 m 3300 XL standard extension cable with option 02 connector protection. It links a compatible 3300 XL 8 mm probe to its Proximitor Sensor and does not perform measurement as a standalone component.

For correct electrical length, 330130-040-02-CN is selected by adding its 4.0 m extension-cable length to the probe total length and matching that sum to the Proximitor Sensor system length. The ClickLoc connections should remain supported and accessible along the route.

The CN suffix on 330130-040-02-CN is the manufacturer's China hazardous-area ordering option. Approval markings are application dependent, so the delivered label should be compared with the plant's specified NEPSI or CCC requirement.

Configuration Snapshot

Base number
330130 · 3300 XL standard extension cable
Cable length
040 · 4.0 m
Cable option
02 · standard cable with connector protector
Approval option
CN · China hazardous-area ordering option
ApterPLC Bently Nevada signal-chain sourcing support
02

Engineering Considerations

Compatibility & Interoperability

  • Use this extension cable only within the compatible 3300 XL 8 mm system family; a connector that can be physically coupled is not sufficient evidence of compatibility.
  • Add the probe total length to the extension-cable length and compare the result with the system length identified for the Proximitor Sensor.
  • The extension cable is a system component, not a standalone transducer. Measurement performance belongs to the correctly configured probe–cable–Proximitor chain.

Installation & Integration

  • The official configuration drawing places the connector protector at the female connector end. Plan its orientation so the joint remains accessible for inspection and service.
  • Maintain the published minimum bend radius and avoid transferring pull or side load into either connector.
  • This is standard, nonarmored, non-FluidLoc cable. The connector protector does not provide armor or environmental protection along the full route.

Technical Specifications

Manufacturer Bently Nevada
System family 3300 XL 8 mm Proximity Transducer System
Component Extension cable
Cable length 4.0 m
Cable construction 75 Ω FEP-insulated triaxial standard cable
Connector protection Included on the female end
Center conductor DC resistance 0.88 ± 0.13 Ω
Outer conductor DC resistance 0.26 ± 0.05 Ω
Typical capacitance 69.9 pF/m
Minimum bend radius 25.4 mm
Operating and storage temperature −52 to +177 °C
Cable maximum outside diameter 3.7 mm
Connector protector maximum outside diameter 12.4 mm
Approval option CN · China hazardous-area ordering option
Place of shipment Xiamen, China
Delivery Time 1-3 days
Quantity 100% New Original
Minimum Order Quantity 1pc
03

Alternative Names

330130-040-02CN33013004002CN330130 040 02 CN330130/040/02/CN
04

Frequently Asked Questions

01If a channel changes after 330130-040-02-CN is installed, should the Proximitor Sensor calibration be changed first?

No. First verify the 3300 XL 8 mm family, the probe-plus-cable electrical length and both connector joints; calibration changes should not conceal a chain mismatch.

02Can any extension cable with the same nominal length replace 330130-040-02-CN?

No. The official order structure also distinguishes cable construction, connector-protector option and approval suffix. Check those fields against the installation requirement.

03Is the CN suffix on 330130-040-02-CN sufficient by itself for China hazardous-area acceptance?

No. CN identifies the applicable country-ordering route, while final acceptance should be based on the delivered markings and the project’s required NEPSI or CCC evidence, as applicable.

04Can the connector protector supplied with 330130-040-02-CN satisfy a full-route armor requirement?

No. It protects the designated connector joint only. The cable remains standard nonarmored construction, so the route needs separate mechanical protection where required.

05Can 330130-040-02-CN be evaluated as a standalone proximity sensor before the other components are connected?

No. It is an extension cable for the 3300 XL 8 mm system; functional acceptance requires the specified probe, extension cable, Proximitor Sensor and target arrangement.

06What installation evidence is useful when requesting 330130-040-02-CN for an existing channel?

Provide the probe and Proximitor Sensor labels, connector photos, cable-route conditions and required approval markings so family, electrical length and construction can be reviewed together.
