Installed fit
Armored four-metre route is a primary decision point for this configuration.
Item NO.:
330130-040-01-05Order(MOQ):
1Goods Stock:
31Payment:
T/TLead Time：
In stockWeight:
0.56KGDimension:
30.5x30.5x4cmDescription:
3300 XL 8 mm Extension CablePrice:
AskSend the full probe, extension-cable and Proximitor labels, required system length, route and protection details, quantity and destination. We support current, discontinued and difficult-to-source industrial parts.

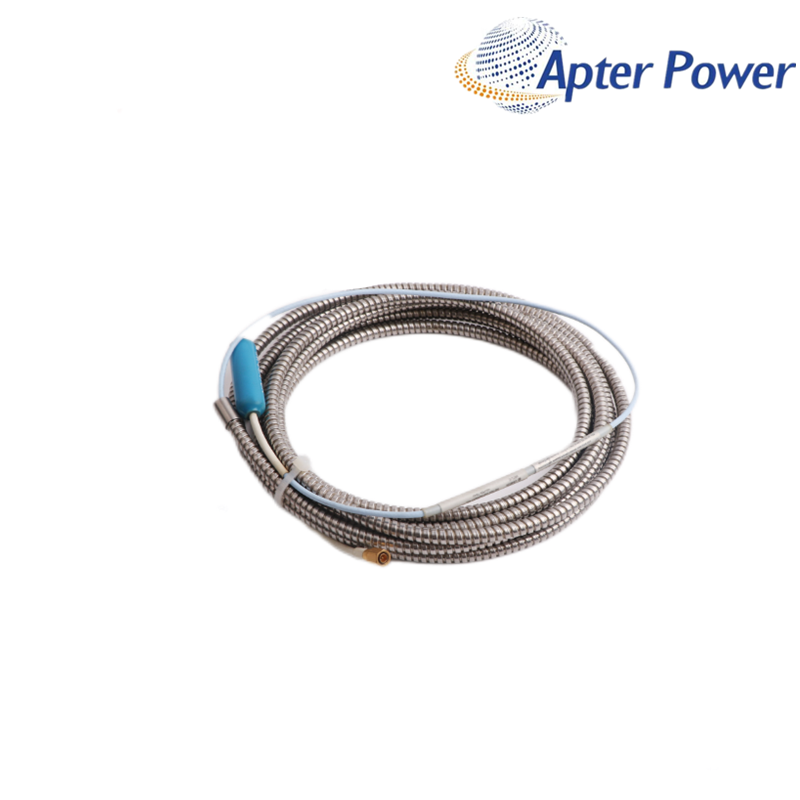

330130-040-01-05 adds four metres of armored routing between a compatible 3300 XL 8 mm probe and Proximitor Sensor. The armor is valuable where the field path needs added mechanical protection, but it also introduces bend, termination and clearance requirements.
330130-040-01-05 is chosen from system-length arithmetic rather than cabinet distance alone: the installed probe lead plus the four-metre extension must equal the total length specified for the Proximitor Sensor. This relationship protects measurement-chain integrity when a cable is replaced.
330130-040-01-05 also carries the CSA, ATEX and IECEx approval option, allowing procurement and compliance teams to review one exact cable configuration. Final project acceptance still depends on the delivered marking, applicable conditions and the actual armored route.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL 8 mm Extension Cable |
| Ordering family | 330130 |
| Cable length | 4.0 m |
| Cable construction | Armored cable |
| Connector system | 3300 XL 8 mm extension cable |
| Agency approval option | CSA, ATEX and IECEx approvals |
| System matching | Probe lead plus extension cable must equal the selected Proximitor Sensor total length |
| Minimum bend radius | 25.4 mm (1.0 in) |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Armored four-metre route is a primary decision point for this configuration.
Approval review is a primary decision point for this configuration.
System-length arithmetic is a primary decision point for this configuration.
Add the installed probe lead to the four-metre extension and match the result to the selected Proximitor Sensor total length before release.
Use the delivered approval marking and installation conditions for classified-area acceptance, including the actual route, termination and enclosure conditions.
Compare the full probe, cable and Proximitor identities, then check route protection and connector condition. Stop if the total system length or cable construction is uncertain.
No. Add the probe lead length and confirm the total equals the selected Proximitor Sensor system length. Physical reach without electrical matching is not an acceptable basis.
Provide supported bends, enough space at glands or conduit entries and no repeated flexing at the connector. Maintain at least the published 25.4 mm bend radius.
Match the delivered CSA, ATEX or IECEx marking and installation conditions to the project requirements. The approval option does not remove the need to review enclosure, route and site conditions.
A different total system length, damaged connector or incompletely seated ClickLoc joint can alter the chain. Confirm cable identity and connections before changing monitor configuration.
No. Armor adds mechanical protection but does not replace proper support, bend control or strain relief. Keep the connector and termination free of pulling loads.
Send the full probe, extension-cable and Proximitor labels, approval requirement, route and termination details, quantity, destination and connector photographs.
Exact-model review for new original industrial automation parts.
Complete nameplate and system details help us check the required configuration before quotation.
Our team assists with delivery coordination, incoming identity checks and post-purchase questions.
Purchase protection
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Need warranty support for 330130-040-01-05? Send the order reference, full nameplate photograph and a clear description of the issue.
Product names and trademarks remain the property of their respective owners. Apter is an independent supplier.
Document access
No verified model-specific English PDF is currently linked to this page. Send the complete model and installed-system details so the applicable manufacturer document can be checked before procurement, installation or compliance decisions.
