Exact format
Use 330130-040-00-CN without an extra 00 block or slash.
Item NO.:
330130-040-00-CNOrder(MOQ):
1Goods Stock:
13Payment:
T/TLead Time：
In stockWeight:
0.14KGDimension:
20x18x2cmDescription:
CABLE EXTENSIONPrice:

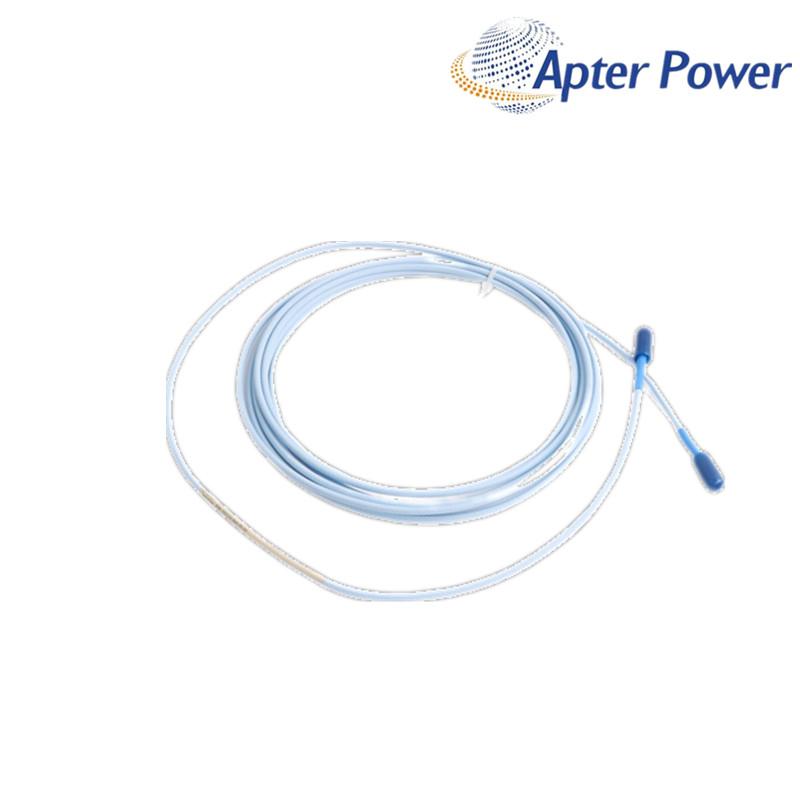

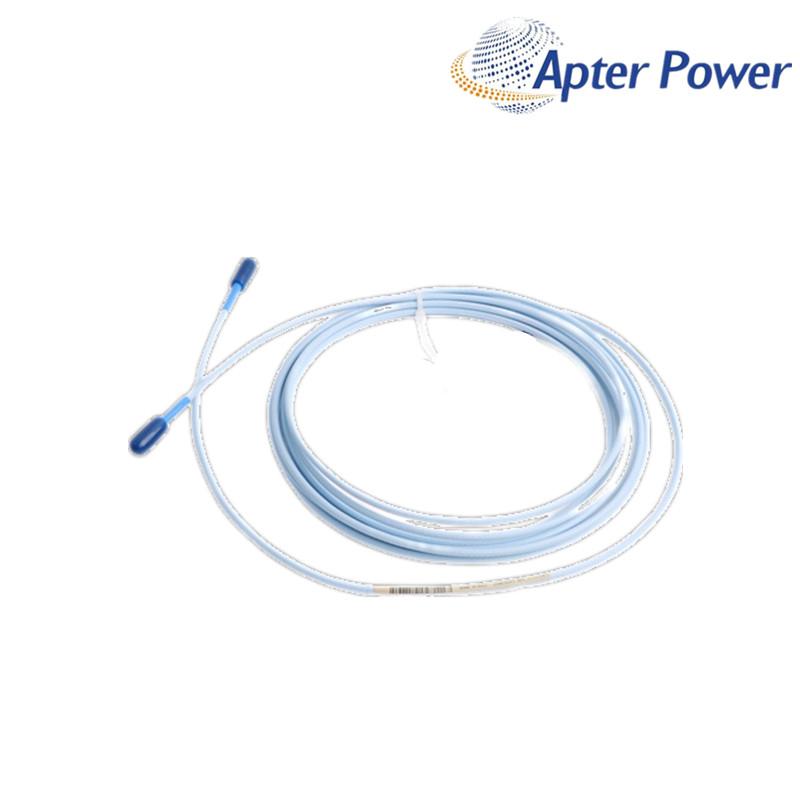

AskA 4.0 m standard extension cable with the CN country-specific approval option for a matched 3300 XL 8 mm proximity transducer system.
330130-040-00-CN is a standard extension-cable configuration for the Bently Nevada 3300 XL 8 mm proximity transducer system. The 040 field specifies a 4.0 m cable length.
For 330130-040-00-CN, option 00 identifies the standard FEP-insulated triaxial cable, while CN is the country-specific approval field. The manufacturer format contains these three option blocks after 330130, so an additional 00 block or a slash before CN does not represent the documented ordering structure.
For 330130-040-00-CN, add the 4.0 m extension cable to the connected probe lead and compare the result with the Proximitor Sensor system length. This preserves the calibrated electrical chain rather than treating the cable as a standalone interconnect.
Use 330130-040-00-CN without an extra 00 block or slash.
Add the 4.0 m cable to the probe lead and match the sensor system length.
Keep the CN suffix and delivered approval documentation with the quotation.
| Manufacturer | Bently Nevada |
|---|---|
| Component | Extension cable |
| Product family | 3300 XL 8 mm proximity transducer system |
| Cable length | 4.0 m |
| Connector protector / cable option | 00 — standard cable |
| Approval option | CN — country-specific approval option |
| Cable construction | 75 Ω triaxial cable, FEP insulated |
| Operating / storage temperature | -52°C to +177°C (-62°F to +350°F) |
| Minimum bend radius | 25.4 mm (1.0 in) |
| Typical cable capacitance | 69.9 pF/m (21.3 pF/ft) |
| Standard-cable linear mass | 34 g/m (0.4 oz/ft) |
| Selection rule | Probe lead plus extension cable must equal Proximitor Sensor system length |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Use the three documented option blocks after 330130: 040 for length, 00 for standard cable and CN for the country-specific approval option.
Add the 4.0 m extension cable to the probe lead and match that total to the Proximitor Sensor system length.
No. Option 00 identifies the standard FEP-insulated cable rather than an armored construction.
We recommend preserving the manufactured cable length because the extension cable forms part of the calibrated transducer chain.
Keep the CN suffix and the delivered country-specific approval documents together with the quotation and receiving record.
Photos of both cable ends, the cable label, probe label and Proximitor Sensor label help confirm the complete 3300 XL 8 mm system.
Share the exact nameplate, mounting dimensions, cable route, connected component labels and approval documents. ApterPLC can then prepare a model-focused quotation without treating connector fit or a family name as proof of interchangeability.
ApterPLC provides a one-year warranty on this item, giving buyers a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names, images and trademarks are used for identification only.
The English manufacturer documents below are hosted by ApterPLC for product selection and technical review.
3300 XL 8 mm Proximity Transducer System Datasheet · 141194 Rev. ANOpen the English manufacturer datasheet for ordering information, technical specifications and system guidance. Approvals Quick Reference Guide · 108M1756 Rev. AVOpen the English manufacturer approval guide for country-specific ordering options.|
