Five- or nine-metre use
An extension cable is selected as part of the supported total electrical length, never as an independent patch lead.
Item NO.:
330130-035-00-00Order(MOQ):
1Goods Stock:
27Payment:
T/TLead Time：
In stockWeight:
0.12KGDimension:
19x17x1.5cmDescription:
PROXIMITY TRANSDUCER SYSTEMPrice:
AskSend the full probe, extension-cable and Proximitor labels, required system length, route and protection details, quantity and destination. We support current, discontinued and difficult-to-source industrial parts.
System-architecture explanation followed by environmental boundaries

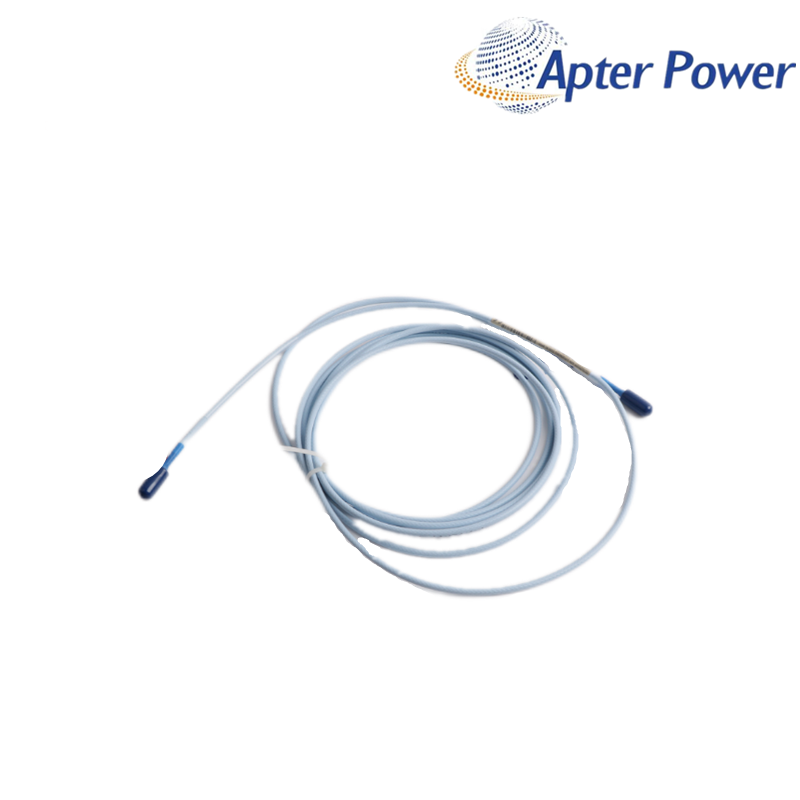

330130-035-00-00 is a 3.5 m standard extension cable within the 3300 XL 8 mm transducer architecture. It belongs in a five- or nine-metre measurement chain only when its length completes the installed probe lead to the total length specified for the Proximitor Sensor.
330130-035-00-00 can complete a five-metre chain with a supported 1.5 m probe lead, but it is not used in the manufacturer one-metre probe-only arrangement. This distinction should be settled from the labels before a spare is allocated or an outage job pack is approved.
330130-035-00-00 also needs a route and joint-protection decision because it is standard cable. Preserve the minimum bend radius, support the connectors and use the manufacturer protection approach where the probe-to-extension joint faces oil or environmental contamination.
Decision highlights
An extension cable is selected as part of the supported total electrical length, never as an independent patch lead.
The official one-metre system uses the probe alone and does not include an extension cable.
The connection method must reflect contamination and turbine-oil exposure, not just indoor or outdoor location.
Verified configuration
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL 8 mm Extension Cable |
| Ordering family | 330130 |
| Cable length option | 3.5 m (11.5 ft) |
| Cable / connector option | Standard cable |
| System matching | Probe lead plus extension cable must equal the selected Proximitor Sensor total length |
| Minimum bend radius | 25.4 mm (1.0 in) |
| Agency approval option | Not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Technical notes
330130-035-00-00 must not be inserted into the manufacturer one-metre probe-only arrangement simply because the connectors mate. Extension cable belongs in a documented five- or nine-metre chain. Read the Proximitor total length and probe lead first; stop the work if the existing system identity cannot be established from labels.
The manufacturer does not recommend the supplied silicone tape where the probe-to-extension connection is exposed to turbine oil. Select the manufacturer connector-protection method and installation controls appropriate to the actual environment.
Decision gate
Separate a one-metre probe-only channel from a five- or nine-metre channel at the storeroom stage. Then confirm whether standard cable can be protected adequately along the real route.
Buyer and engineer support
Not within the documented one-metre probe-only arrangement. Select a supported five- or nine-metre component chain rather than extending the one-metre system as an improvised field change.
A supported 1.5 m probe lead plus this 3.5 m extension totals five metres. Confirm the exact probe and five-metre Proximitor labels before installation.
The manufacturer documents physical and electrical interchangeability with non-XL 3300 5 mm/8 mm components, but mixed operation is limited to non-XL performance. Engineering should accept that boundary before the outage.
Do not depend on the supplied silicone tape at an oil-exposed probe-to-extension joint. Review the manufacturer connector protector and the site enclosure or routing requirement before returning the channel to service.
The manufacturer connection is designed to seat finger-tight until it clicks. If it does not click, inspect alignment, cleanliness and damage instead of applying torque that can damage the connector.
Record the full label, cable construction, connector condition and the probe/Proximitor chain for which it is reserved. That prevents a correct cable from being issued to the wrong total-length system later.
Supply capability
Quality-focused sourcing: We support exact-model review for new original industrial automation parts.
Current, discontinued and hard-to-find products: Send the complete nameplate and system context so the required configuration can be checked before quotation.
Responsive after-sales support: Our team assists with delivery coordination, incoming identity checks and post-purchase questions.
Search references
Purchase protection
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Need warranty support for 330130-035-00-00? Send the order reference, full nameplate photograph and a clear description of the issue.
Product names and trademarks remain the property of their respective owners. Apter is an independent supplier.
Document access
No verified model-specific English PDF is currently linked to this page. Send the complete model and installed-system details so the applicable manufacturer document can be checked before procurement, installation or compliance decisions.
