1.5 m is not the finished system
Add the approved extension length needed for the selected five- or nine-metre Proximitor Sensor.
Item NO.:
330106-05-30-15-02-00Order(MOQ):
1Goods Stock:
34Payment:
T/TLead Time：
In stockWeight:
0.08KGDimension:
20.2x22x3cmDescription:
PROBE 3300 XLPrice:
AskSend the full probe and Proximitor labels, mounting drawing, target details, required system length, quantity and destination. We support current, discontinued and difficult-to-source industrial parts.
Configuration arithmetic backed by mechanical release criteria

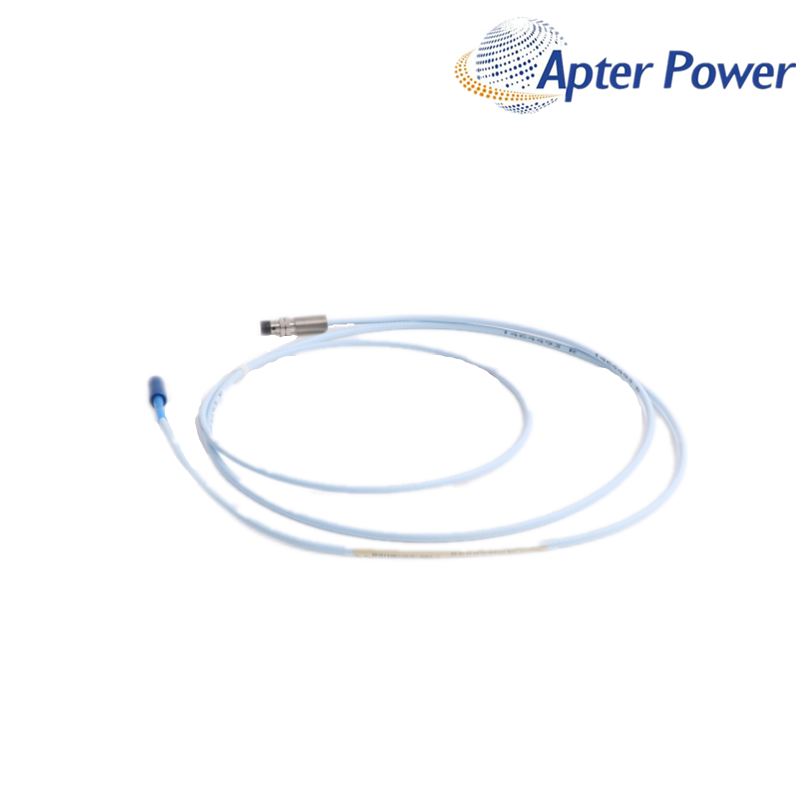

330106-05-30-15-02-00 is an M10 × 1 reverse-mount 3300 XL 8 mm probe with a 5 mm unthreaded section, 30 mm case and 1.5 m integral lead. It gives the mechanical arrangement for the probe, while the extension cable and Proximitor Sensor complete the electrical system.
330106-05-30-15-02-00 needs a supported extension-cable length that brings the chain to the selected five- or nine-metre total. For a five-metre system, the remaining 3.5 m must be supplied by the correct official extension-cable configuration and connector arrangement.
330106-05-30-15-02-00 must also fit the bracket without excessive thread engagement or rear cable interference. Confirm target material and operating gap before startup, then diagnose any shifted reading through mechanics, connections and system length before changing monitor settings.
Decision highlights
Add the approved extension length needed for the selected five- or nine-metre Proximitor Sensor.
A 3.5 m extension cable completes the nominal five-metre chain for this supported probe lead.
Bracket reach, M10 × 1 engagement and connector clearance must be accepted before installation.
Verified configuration
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL 8 mm Reverse Mount Probe |
| Ordering family | 330106 |
| Mounting thread | M10 × 1 |
| Probe geometry | 5 mm unthreaded length; 30 mm overall case |
| Integral lead length | 1.5 m (4.9 ft) |
| Connector option | Miniature ClickLoc coaxial connector |
| System matching | Complete the probe and any extension cable to the selected Proximitor Sensor total length |
| Agency approval option | Not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Technical notes
330106-05-30-15-02-00 has a 1.5 m integral lead and is not a complete five- or nine-metre measurement chain by itself. Select the official extension length that reaches the Proximitor total, then verify every component label. Stop the order if the existing extension cable length or Proximitor system length cannot be read.
Confirm bracket thickness, target reach, M10 × 1 engagement and space behind the mount. Correct electrical selection cannot compensate for a probe that bottoms out or cannot be positioned at its intended operating gap.
Decision gate
The probe, extension cable and Proximitor Sensor should appear together on the replacement check. A 3.5 m cable is appropriate for a supported five-metre arrangement; other totals require their documented matching length.
Buyer and engineer support
Use the official 3.5 m extension-cable configuration that matches the connector and site protection requirement. Confirm the five-metre Proximitor label before ordering the parts as one chain.
No. The documented system length must match the selected Proximitor Sensor; approximate cable reach is not an electrical compatibility rule. Rebuild the bill of material around a supported total length.
Incorrect M10 × 1 thread detail, bracket thickness, limited adjustment or rear connector interference can block the required position. Compare the machine drawing before installation and stop if the case would bind or bottom out.
Check target material and condition, probe gap, ClickLoc seating and the completed electrical length first. Only review monitor configuration after the physical chain matches the documented arrangement.
Reuse is reasonable only when the full label, cable construction, connector condition and five-metre Proximitor identity all match the supported chain. Replace it if identity or physical condition is uncertain.
Provide the full probe, extension-cable and Proximitor labels, mounting drawing, target material, route protection need, quantity and destination. This prevents a mechanically similar but electrically incomplete quotation.
Supply capability
Quality-focused sourcing: We support exact-model review for new original industrial automation parts.
Current, discontinued and hard-to-find products: Send the complete nameplate and system context so the required configuration can be checked before quotation.
Responsive after-sales support: Our team assists with delivery coordination, incoming identity checks and post-purchase questions.
Search references
Purchase protection
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Need warranty support for 330106-05-30-15-02-00? Send the order reference, full nameplate photograph and a clear description of the issue.
Product names and trademarks remain the property of their respective owners. Apter is an independent supplier.
Document access
No verified model-specific English PDF is currently linked to this page. Send the complete model and installed-system details so the applicable manufacturer document can be checked before procurement, installation or compliance decisions.
