Probe-only electrical path
The documented one-metre arrangement connects the probe directly and does not use an extension cable.
Item NO.:
330106-05-30-10-02-CNOrder(MOQ):
1Goods Stock:
31Payment:
T/TLead Time：
In stockWeight:
0.06KGDimension:
1x1x117cmDescription:
PROBEPrice:
AskSend the full probe and Proximitor labels, mounting drawing, target details, required system length, quantity and destination. We support current, discontinued and difficult-to-source industrial parts.
Mechanical-fit sequence followed by a hard electrical stop

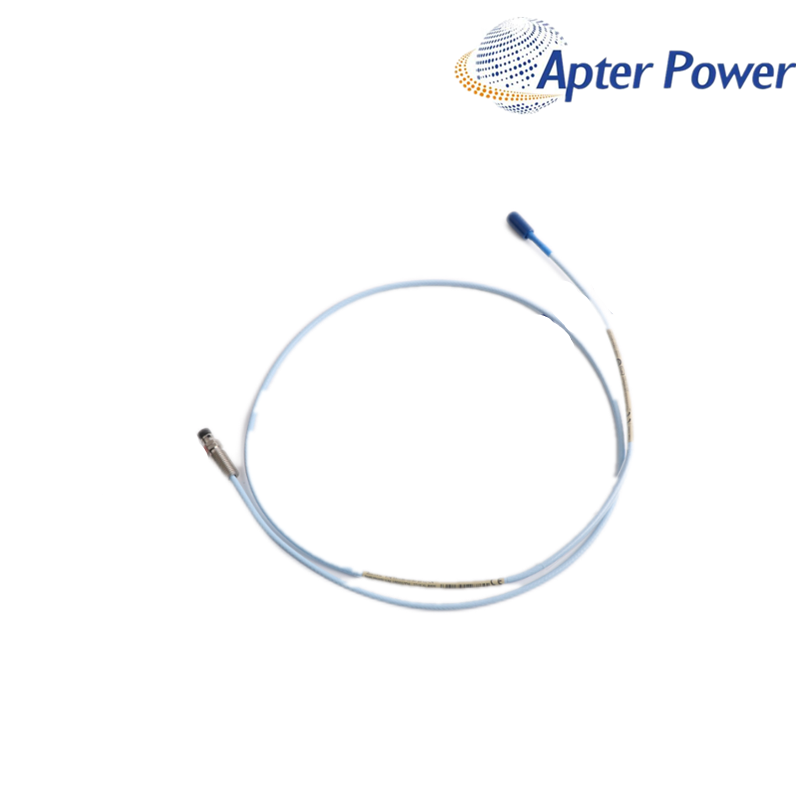

330106-05-30-10-02-CN is an M10 × 1 reverse-mount 3300 XL 8 mm proximity probe with a 5 mm unthreaded section, 30 mm case and 1.0 m integral lead. Its first installation decision is mechanical: the bracket must provide the correct reach, thread engagement and rear connector clearance.
330106-05-30-10-02-CN is used without an extension cable in the documented one-metre system. If the lead cannot reach the selected Proximitor Sensor, the remedy is to choose a supported five- or nine-metre system configuration—not to add an extension cable to this one-metre arrangement.
330106-05-30-10-02-CN should be commissioned only after the target material, operating gap and ClickLoc seating have been confirmed. The -CN suffix remains part of the exact product identity but is not used to claim a different calibration, approval or environmental rating.
Decision highlights
The documented one-metre arrangement connects the probe directly and does not use an extension cable.
M10 × 1 thread, 5 mm unthreaded length and 30 mm case determine bracket and target reach.
Check target, gap and connector seating before altering any monitor configuration.
Verified configuration
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL 8 mm Reverse Mount Probe |
| Ordering family | 330106 |
| Mounting thread | M10 × 1 |
| Probe geometry | 5 mm unthreaded length; 30 mm overall case |
| Integral lead length | 1.0 m (3.3 ft) |
| Connector option | Miniature ClickLoc coaxial connector |
| System matching | Complete the probe and any extension cable to the selected Proximitor Sensor total length |
| Order-code identity | Full CN suffix retained; confirm the complete nameplate before replacement. No approval rating is inferred. |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Technical notes
330106-05-30-10-02-CN belongs to the manufacturer one-metre probe-only system, where no extension cable is used. If the integral lead cannot reach the Proximitor Sensor, stop the installation and select a supported five- or nine-metre component chain. Splicing or adding cable changes the documented electrical arrangement and is not a routing fix.
Check bracket thickness, target position and available rear space against the M10 × 1 case geometry. Excessive engagement or a mismatched bracket can prevent correct probe positioning even when the electrical parts are correct.
Decision gate
Confirm the one-metre Proximitor arrangement and physical cable path first. If either the bracket or lead route fails, redesign the supported configuration before the probe is locked into position.
Buyer and engineer support
Not in the documented one-metre probe-only arrangement. Select a supported five- or nine-metre probe, extension-cable and Proximitor combination instead of extending this lead in the field.
Confirm M10 × 1 thread, bracket thickness, probe reach to the target, available adjustment and rear connector clearance. Stop if the case would bottom out or the correct operating position cannot be set.
A changed probe gap, target condition or incompletely seated ClickLoc connector can move the measurement. Restore those mechanical and connection conditions before changing monitor scaling or calibration.
Standard system performance is specified on AISI 4140 steel. Provide the target material to the manufacturer or qualified technical support and confirm the required calibration before accepting the measurement.
Stop and inspect cleanliness, alignment and damage on both mating parts. Do not use tools to force the connector; replace a damaged component before commissioning.
Send the full probe label, Proximitor label, bracket drawing, target material, required quantity and delivery destination. These details verify both exact identity and the one-metre installation context.
Supply capability
Quality-focused sourcing: We support exact-model review for new original industrial automation parts.
Current, discontinued and hard-to-find products: Send the complete nameplate and system context so the required configuration can be checked before quotation.
Responsive after-sales support: Our team assists with delivery coordination, incoming identity checks and post-purchase questions.
Search references
Purchase protection
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Need warranty support for 330106-05-30-10-02-CN? Send the order reference, full nameplate photograph and a clear description of the issue.
Product names and trademarks remain the property of their respective owners. Apter is an independent supplier.
Document access
No verified model-specific English PDF is currently linked to this page. Send the complete model and installed-system details so the applicable manufacturer document can be checked before procurement, installation or compliance decisions.
