Installed fit
Metric one-metre system is a primary decision point for this configuration.
Item NO.:
330106-05-30-10-02-00Order(MOQ):
1Goods Stock:
29Payment:
T/TLead Time：
In stockWeight:
0.06KGDimension:
113x1x0.8cmDescription:

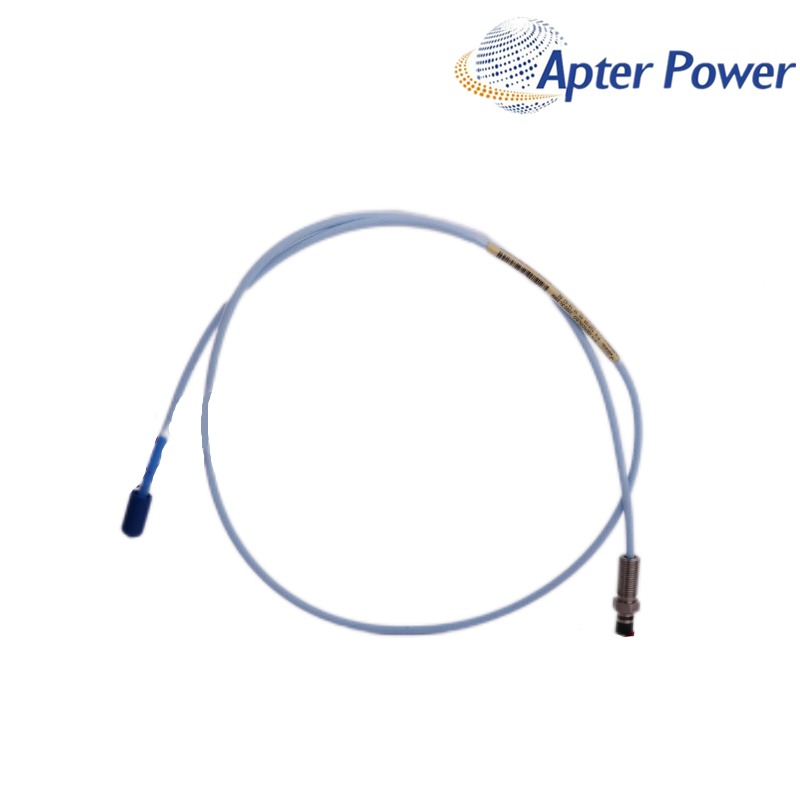

3300 XL 8 mm Reverse-Mount Proximity ProbePrice:
AskSend the full probe and Proximitor labels, mounting drawing, target details, required system length, quantity and destination. We support current, discontinued and difficult-to-source industrial parts.
330106-05-30-10-02-00 combines the 330106 metric reverse-mount body with a one-metre integral lead, giving short installations a direct path to the corresponding one-metre Proximitor Sensor. Its 30 mm case and 5 mm unthreaded section define the bracket and target relationship.
330106-05-30-10-02-00 removes an extension-cable joint from the channel, which can simplify assembly and fault isolation. The trade-off is that the complete lead belongs to the probe and must be routed without crushing, tight coiling or tension at the rear-mounted body.
330106-05-30-10-02-00 earns its place in a maintenance plan when both the M10 × 1 geometry and one-metre system architecture match the installed equipment. Verifying those two boundaries before the outage avoids changing hardware and electrical length at the same time.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL 8 mm Reverse-Mount Proximity Probe |
| Ordering family | 330106 |
| Mounting style | Reverse mount |
| Mounting thread | M10 × 1 |
| Probe geometry | 5 mm unthreaded length; 30 mm overall case |
| Integral lead length | 1.0 m |
| Connector option | Miniature coaxial ClickLoc connector |
| Agency approval option | Not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Metric one-metre system is a primary decision point for this configuration.
Compact case fit is a primary decision point for this configuration.
Joint-free short installation is a primary decision point for this configuration.
The M10 × 1 reverse-mount interface and 30 mm case require a bracket that provides rear access, repeatable target reach and a protected cable exit.
For an unexpected reading, establish the gap, target condition and ClickLoc seating before comparing electrical output or changing monitor settings.
Compare the machine drawing, target, complete probe code, cable plan and Proximitor label. Stop before installation if the mounting geometry or total system length cannot be confirmed.
Yes, when it is paired with the corresponding one-metre Proximitor Sensor and the integral lead reaches without strain. Do not add an extension cable to a one-metre chain.
Confirm the M10 × 1 bracket thread, 30 mm case reach and target face before setting the gap. Rear mounting must allow repeatable probe position after tightening.
The probe gap or target relationship may have shifted, or the ClickLoc connection may be incomplete. Recheck those physical conditions before treating the change as a monitor fault.
Use a supported path with smooth bends and no tension at the probe or connector. Keep it clear of moving parts, sharp edges and hot surfaces.
Stop if the Proximitor type, metric mounting geometry, target condition or stable gap cannot be confirmed. Continuing would make the channel result unreliable.
Compare the full code, M10 × 1 identity, one-metre lead, connector and label photographs with the RFQ and installed Proximitor details.
Exact-model review for new original industrial automation parts.
Complete nameplate and system details help us check the required configuration before quotation.
Our team assists with delivery coordination, incoming identity checks and post-purchase questions.
Purchase protection
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Need warranty support for 330106-05-30-10-02-00? Send the order reference, full nameplate photograph and a clear description of the issue.
