Installed fit
Metric reverse mount is a primary decision point for this configuration.
Item NO.:
330106-05-30-05-02-CNOrder(MOQ):
1Goods Stock:
26Payment:
T/TLead Time：
In stockWeight:
0.05KGDimension:
1.1x1x65cmDescription:

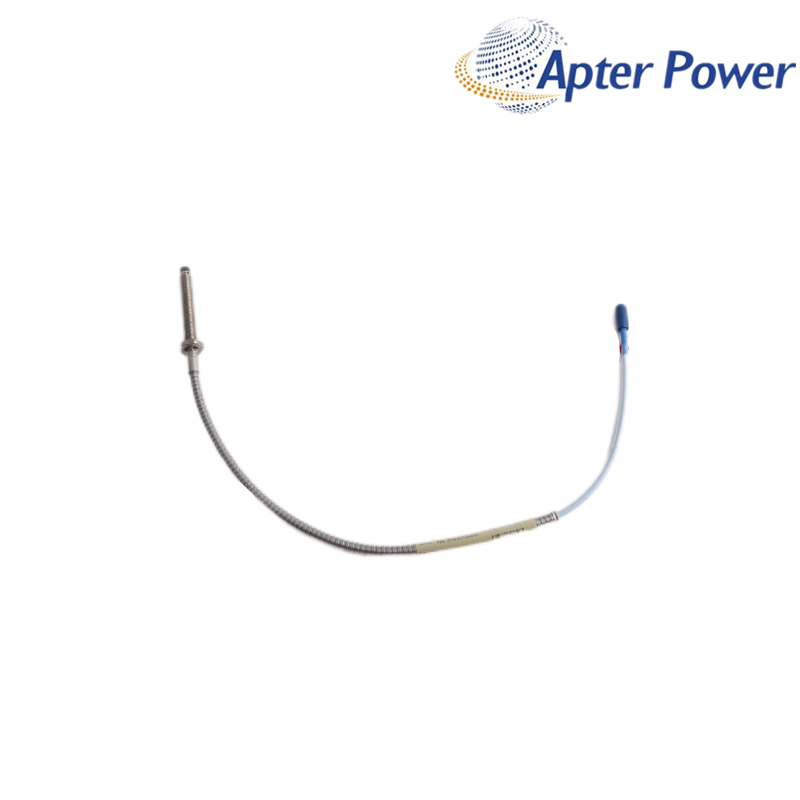

3300 XL 8 mm Reverse-Mount Proximity ProbePrice:
AskSend the full probe and Proximitor labels, mounting drawing, target details, required system length, quantity and destination. We support current, discontinued and difficult-to-source industrial parts.
330106-05-30-05-02-CN brings a compact metric reverse-mount geometry to the 3300 XL 8 mm system: M10 × 1 thread, 5 mm unthreaded reach, 30 mm case and a half-metre lead. The complete -CN order code remains part of the item identity used for purchasing.
330106-05-30-05-02-CN is most useful where the bracket provides rear access but the nearby housing leaves little room for surplus lead. Because the ClickLoc joint remains close to the machine, the extension-cable connection needs a clean, supported and serviceable location.
330106-05-30-05-02-CN depends on the selected extension cable to complete the Proximitor Sensor system length. Incoming inspection should therefore compare the full probe label and installed chain while avoiding any unverified technical interpretation of the -CN suffix.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL 8 mm Reverse-Mount Proximity Probe |
| Ordering family | 330106 |
| Mounting style | Reverse mount |
| Mounting thread | M10 × 1 |
| Probe geometry | 5 mm unthreaded length; 30 mm overall case |
| Integral lead length | 0.5 m |
| Connector option | Miniature coaxial ClickLoc connector |
| Order-code identity | Complete -CN suffix preserved; no additional technical distinction inferred |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Metric reverse mount is a primary decision point for this configuration.
Short-lead extension choice is a primary decision point for this configuration.
CN identity is a primary decision point for this configuration.
Confirm M10 × 1 thread, 30 mm case reach, rear access and a protected connection point for the short probe lead.
Keep the complete -CN code on the RFQ, order acknowledgement and incoming inspection without assigning an unsupported technical meaning to the suffix.
Compare the machine drawing, target, complete probe code, cable plan and Proximitor label. Stop before installation if the mounting geometry or total system length cannot be confirmed.
No direct substitution should be assumed. This configuration uses an M10 × 1 mounting thread, so the bracket and target reach must match the metric geometry.
Select the official extension-cable length that completes the supported total system length. Do not use a generic coaxial lead even if its connector appears similar.
Confirm the M10 × 1 thread, 30 mm case reach, rear tool access and cable exit. Stop if the bracket traps the connector or prevents repeatable probe positioning.
It is part of the complete ordering identity used to match the requested and delivered item. It should not be removed or interpreted as a new technical setting.
Start at the short-lead ClickLoc joint: inspect cleanliness, alignment, damage and full seating, then confirm the mechanical gap. Do not alter the channel configuration before the connection is stable.
Send clear images of the complete probe label, connector, mounting area and installed Proximitor label, together with quantity and destination.
Exact-model review for new original industrial automation parts.
Complete nameplate and system details help us check the required configuration before quotation.
Our team assists with delivery coordination, incoming identity checks and post-purchase questions.
Purchase protection
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Need warranty support for 330106-05-30-05-02-CN? Send the order reference, full nameplate photograph and a clear description of the issue.
Product names and trademarks remain the property of their respective owners. Apter is an independent supplier.
Document access
No verified model-specific English PDF is currently linked to this page. Send the complete model and installed-system details so the applicable manufacturer document can be checked before procurement, installation or compliance decisions.
