Installed fit
Five-metre restriction is a primary decision point for this configuration.
Item NO.:
330105-02-12-50-02-00Order(MOQ):
1Goods Stock:
29Payment:
T/TLead Time：
In stockWeight:
0.24KGDimension:
20.4x22.2x3.7cmDescription:

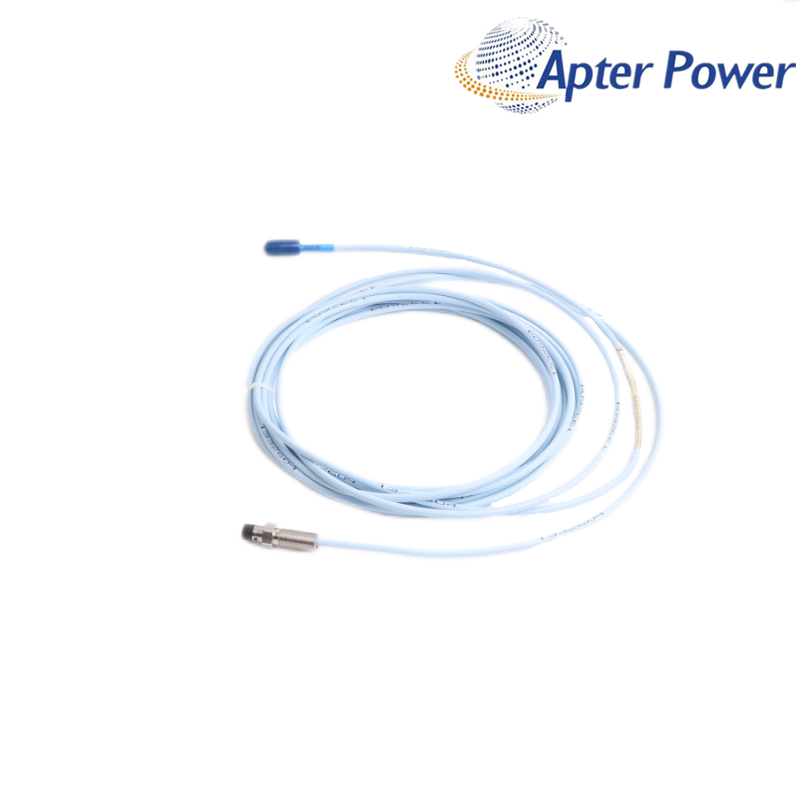

3300 XL 8 mm Reverse-Mount Proximity ProbePrice:
AskSend the full probe and Proximitor labels, mounting drawing, target details, required system length, quantity and destination. We support current, discontinued and difficult-to-source industrial parts.
330105-02-12-50-02-00 is the long-lead reverse-mount choice in the 330105 group, pairing a 3/8-24 UNF body with five metres of integral cable. The manufacturer limits this probe length to the five-metre Proximitor Sensor, making system identity the first selection gate.
330105-02-12-50-02-00 relocates the connection away from the sensing point and may remove the need for an intermediate extension cable. In return, the entire lead becomes a controlled installation path that cannot be shortened, spliced or tightly stored to solve a routing problem.
330105-02-12-50-02-00 works best when the cable route is designed together with the bracket and cabinet entry. Confirm rear removal access, target position, bend space and continuous protection before choosing it as a replacement for a shorter probe.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL 8 mm Reverse-Mount Proximity Probe |
| Ordering family | 330105 |
| Mounting style | Reverse mount |
| Mounting thread | 3/8-24 UNF |
| Integral lead length | 5.0 m |
| Connector option | Miniature coaxial ClickLoc connector |
| System restriction | 5 m probe is designed for use with the 5 m Proximitor Sensor only |
| Agency approval option | Not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Five-metre restriction is a primary decision point for this configuration.
Long-lead routing is a primary decision point for this configuration.
Connector placement at cabinet is a primary decision point for this configuration.
The five-metre probe is designed for the five-metre Proximitor Sensor only; a connector match does not authorize a different system length.
Protect and support the long integral lead through the complete route, preserving smooth bends and service access at both ends.
Compare the machine drawing, target, complete probe code, cable plan and Proximitor label. Stop before installation if the mounting geometry or total system length cannot be confirmed.
No. The five-metre probe is designed for the five-metre Proximitor Sensor only. Select a different supported chain rather than relying on total physical reach.
Plan continuous support, smooth bends, protection from abrasion and a serviceable connector location. Do not cut or splice the integral lead to remove excess length.
Do not pull from the ClickLoc connector or probe body. Use a route and handling method that protects the cable jacket and leaves the reverse-mount end free of tension.
Physical reach does not prove a correct system. The Proximitor must be the supported five-metre type, and the probe gap, target and connector seating must also be correct.
Confirm the installed Proximitor is the five-metre version and that the machine can accept the full integral lead without cutting, tight coiling or unsupported routing.
Include the full code, five-metre Proximitor label, mounting-thread and target details, planned cable route, connector photographs, quantity and destination.
Exact-model review for new original industrial automation parts.
Complete nameplate and system details help us check the required configuration before quotation.
Our team assists with delivery coordination, incoming identity checks and post-purchase questions.
Purchase protection
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Need warranty support for 330105-02-12-50-02-00? Send the order reference, full nameplate photograph and a clear description of the issue.
Product names and trademarks remain the property of their respective owners. Apter is an independent supplier.
Document access
No verified model-specific English PDF is currently linked to this page. Send the complete model and installed-system details so the applicable manufacturer document can be checked before procurement, installation or compliance decisions.
