Reverse-mount fit
Verify the fixed 02-12 geometry against the installed sleeve and bracket.
Item NO.:
330105-02-12-15-12-CNOrder(MOQ):
1Goods Stock:
10Payment:
T/TLead Time：
In stockWeight:
0.75KGDimension:
2.6x25.2x24.1cmDescription:
PROXIMITY TRANSDUCERPrice:

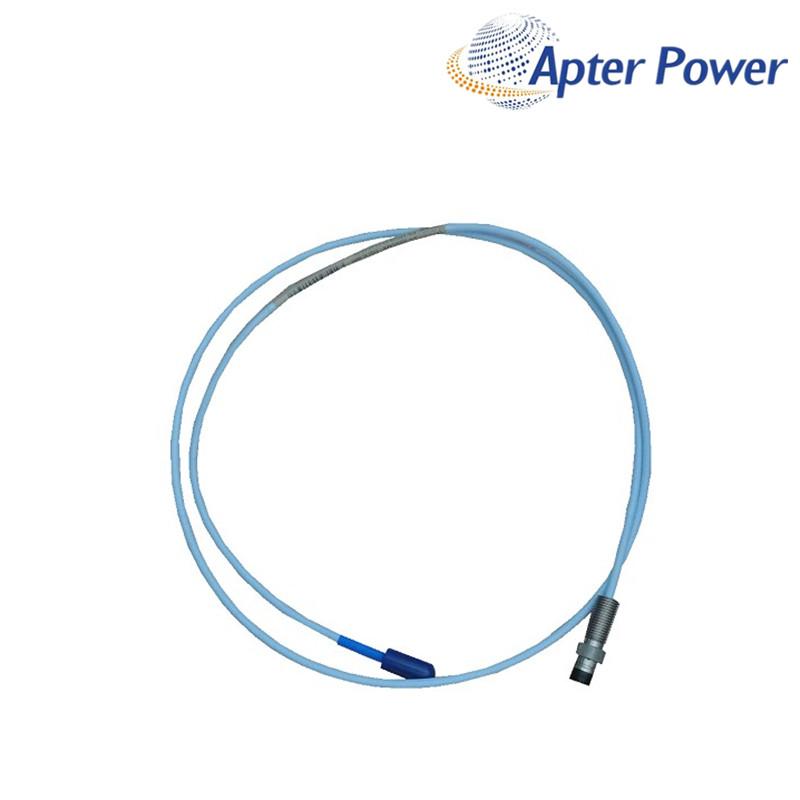

Ask330105-02-12-15-12-CN is the complete Bently Nevada ordering code for this configuration. A reverse-mount probe with fixed 02-12 geometry, 1.5 m total length, FluidLoc cable, connector protector and China approval option.
For 330105-02-12-15-12-CN, confirm the coded mounting geometry, cable or lead construction, connector option and system length against the installed measurement chain.
Before quoting 330105-02-12-15-12-CN, ApterPLC checks the full nameplate and connected-component labels so a visually similar part is not treated as an exact replacement.
Verify the fixed 02-12 geometry against the installed sleeve and bracket.
Confirm the 1.5 m FluidLoc lead and connector protector are required.
Keep the CN suffix and supplied China documentation with the order.
| Manufacturer | Bently Nevada |
|---|---|
| Product family | 3300 XL 8 mm |
| Component | Reverse-mount proximity probe |
| Thread | 3/8-24 UNF |
| Mounting geometry | 02-12 reverse-mount configuration |
| Total probe length | 15 · 1.5 m |
| Connector / cable | 12 · FluidLoc cable with connector protector |
| Country-specific approval | CN · China option |
| Measurement principle | Non-contacting eddy current proximity measurement |
| Nominal linear range | 2.0 mm (80 mils) |
| Nominal sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency response | 0 to 10 kHz (+0 / -3 dB) |
| Reference target | Bently Nevada AISI 4140 steel |
| Minimum flat target | 15.2 mm diameter |
| Minimum shaft diameter | 50.8 mm; 76.2 mm recommended |
| Minimum cable bend radius | 25.4 mm |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
A reverse-mount probe with fixed 02-12 geometry, 1.5 m total length, FluidLoc cable, connector protector and China approval option. Confirm every coded length, thread, cable and approval option against the installed probe.
No. Thread size alone does not confirm case length, unthreaded length, lead construction, connector option or approval suffix.
Verify the fixed 02-12 geometry against the installed sleeve and bracket.
Confirm the 1.5 m FluidLoc lead and connector protector are required. Keep the CN suffix and supplied China documentation with the order.
Send a clear nameplate photo for 330105-02-12-15-12-CN, the complete order code, connected-component labels and photos of the installed mounting or cable route.
ApterPLC provides a one-year warranty on this item, with a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names and trademarks are used for identification only.
Use the model-relevant document below to review the configuration, installation details and system requirements for 330105-02-12-15-12-CN.
|
