Mounting direction
Confirm rear access and the 3/8-24 reverse-mount interface.
Item NO.:
330105-02-12-15-12-05Order(MOQ):
1Goods Stock:
9Payment:
T/TLead Time：
In stockWeight:
1.02KGDimension:
2.5x2.0x2.3cmDescription:
PROBEPrice:

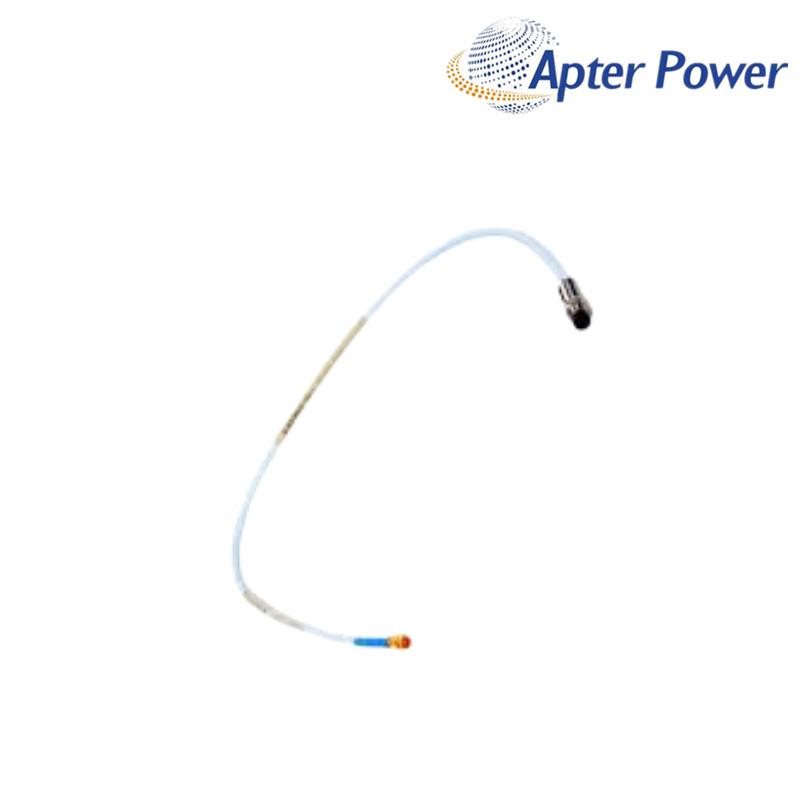

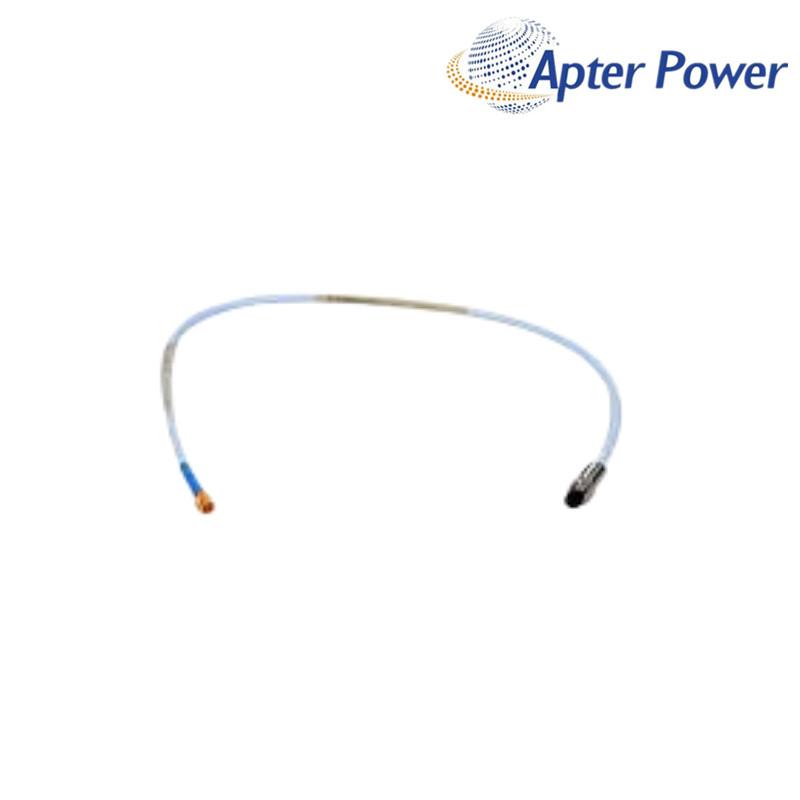

AskA reverse-mount 3/8-24 probe with fixed 02/12 geometry, a 1.5 m FluidLoc lead and multiple-approval option 05.
330105-02-12-15-12-05 is the 3/8-24 reverse-mount probe configuration in the 3300 XL 8 mm family. The 02 and 12 geometry fields are fixed for this reverse-mount construction.
The 15 field specifies a 1.5 m lead. Option 12 identifies FluidLoc cable without a connector protector, and the final 05 is the published multiple-approvals selection.
Reverse-mount probes are selected as part of a complete matched transducer chain. Confirm bracket access, cable route, extension cable and Proximitor Sensor before replacement.
Confirm rear access and the 3/8-24 reverse-mount interface.
Protect the 1.5 m FluidLoc lead and maintain the published bend radius.
Complete the probe lead with the correct extension cable and Proximitor Sensor.
| Manufacturer | Bently Nevada |
|---|---|
| Component | Reverse-mount proximity probe |
| Probe construction | Reverse mount; non-armored |
| Thread | 3/8-24 UNF |
| Fixed geometry fields | 02 unthreaded length / 12 case length |
| Total lead length | 1.5 m |
| Connector / cable option | FluidLoc cable; no connector protector |
| Approval option | 05 — multiple approvals |
| System family | 3300 XL 8 mm proximity transducer system |
| Matched-system linear range | 2.0 mm (80 mils) |
| Nominal average scale factor | 7.87 V/mm (200 mV/mil) |
| Matched-system frequency response | 0 to 10 kHz, +0 / -3 dB |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 303 or 304 stainless steel |
| Cable type | 75 Ω triaxial cable |
| Minimum cable bend radius | 25.4 mm (1.0 in) |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Keep the reverse-mount 3/8-24 geometry, 1.5 m FluidLoc cable and approval option together. Record the mounting position, cable route and all connected component labels instead of selecting by appearance.
Provide the complete nameplate, full product view, mounting point, both connector ends and the labels of the connected cable, sensor or monitor module.
Not on connector fit alone. Linear range, system length, temperature class and approval option must be checked against the complete order code.
Check channel power or configuration, connector locking, cable bends and shielding, then confirm that the probe, cable and sensor belong to one matched system.
Compare the carton and product labels, complete suffix, connector and cable condition, and supplied approval or inspection documents with the purchase order.
Send the complete model, quantity, required delivery date, destination, installation photos and connected component models, plus any available drawing or equipment list.
Share the exact nameplate, mounting dimensions, cable route, connected component labels and approval documents. ApterPLC can then prepare a model-focused quotation without treating connector fit or a family name as proof of interchangeability.
ApterPLC provides a one-year warranty on this item, giving buyers a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names, images and trademarks are used for identification only.
The English manufacturer documents below are hosted by ApterPLC for product selection and technical review.
3300 XL 8 mm Proximity Transducer System Datasheet · 141194 Rev. ANOpen the English manufacturer datasheet for ordering information, technical specifications and system guidance. Approvals Quick Reference Guide · 108M1756 Rev. AVOpen the English manufacturer approval guide for country-specific ordering options.Related Tags :
