Record the installed reverse-mount sleeve or bracket depth before removal.
Item NO.:
330105-02-12-10-02-05Order(MOQ):
1Weight:
0.05 kgDimension:
1.2x1x112cmDescription:
3300 XL 8 mm Reverse Mount ProbesA 3/8-24 UNF reverse-mount probe with a 1.0 m standard ClickLoc lead and the documented multiple-approval option.

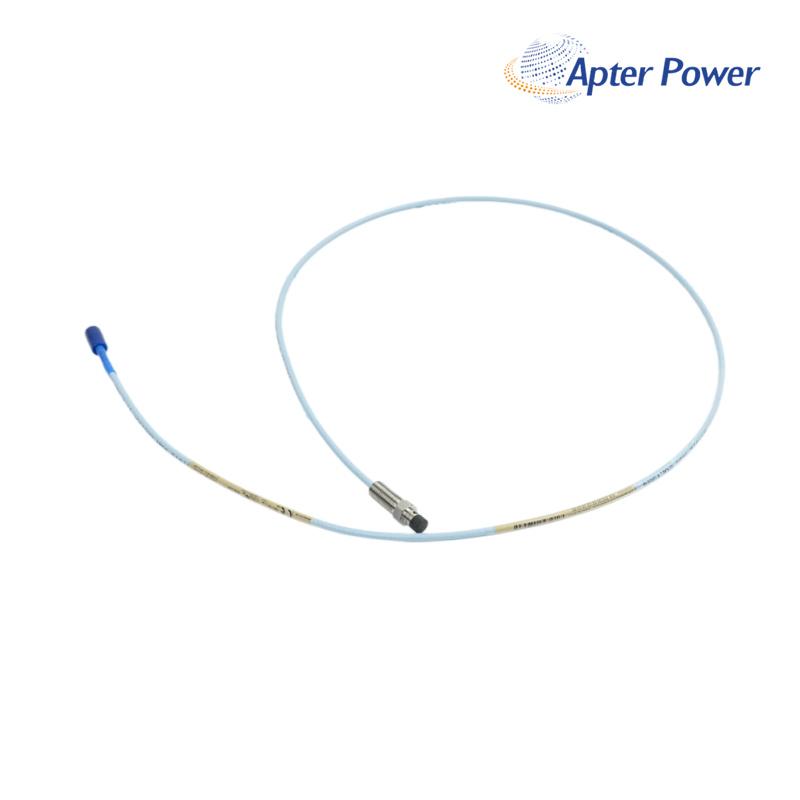

Reverse mount · 3/8-24 UNF · 1.0 m lead · ClickLoc · CSA / ATEX / IECEx330105-02-12-10-02-05 is a reverse-mount 3300 XL 8 mm probe with 3/8-24 UNF threads. The fixed reverse-mount body, 1.0 m lead and ClickLoc connection define how it fits the machine and the matched transducer chain.
The final 05 field on 330105-02-12-10-02-05 is the documented CSA, ATEX and IECEx approval option. Its certificate requirement should be reviewed together with the installed zone, cable routing and connected 8 mm Proximitor Sensor.
Before removing 330105-02-12-10-02-05, record the sleeve or bracket position, probe gap, cable route and complete labels. A visually similar standard-mount probe has different mounting geometry.
8 mm reverse-mount probe
Fixed reverse-mount geometry
1.0 m lead
Miniature ClickLoc connector
CSA / ATEX / IECEx
| VERIFIED TECHNICAL DATA | |
|---|---|
| Manufacturer | Bently Nevada |
| Product family | 3300 XL 8 mm proximity system |
| Component | Reverse-mount proximity probe |
| Probe thread | 3/8-24 UNF |
| Body code | 02-12 reverse-mount geometry |
| Total lead length | 1.0 m |
| Connector | Miniature ClickLoc coaxial |
| Family linear range | 2.0 mm (80 mil) |
| Family scale factor | 7.87 V/mm (200 mV/mil) |
| Probe tip diameter | 8.0 mm |
| Minimum bend radius | 25.4 mm |
| Approval option | 05 - CSA, ATEX, IECEx |
| SUPPLY & LOGISTICS | |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Record the installed reverse-mount sleeve or bracket depth before removal.
Keep the probe lead, extension cable and sensor as a matched 8 mm system.
Inspect ClickLoc seating, cleanliness and cable strain relief.
Match the offered certificate set to the installation requirement.
No assumption should be made from thread size alone. Reverse-mount geometry changes the bracket, insertion direction and service procedure.
Use the recorded sleeve or bracket position and restore the probe gap under the plant commissioning procedure.
It is the documented multiple-approval option covering CSA, ATEX and IECEx. Confirm the exact certificate set with the offer.
No. The probe lead and extension cable must produce the total electrical length expected by the matched 8 mm Proximitor Sensor.
Check connector seating, cable damage, probe gap, target condition and the full matched signal chain before replacing the monitor.

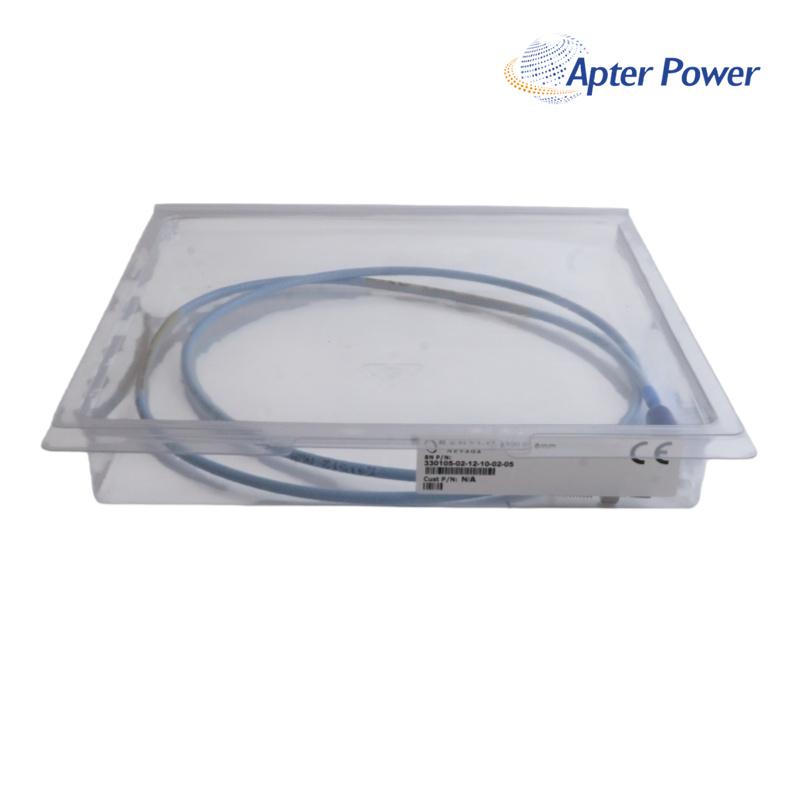

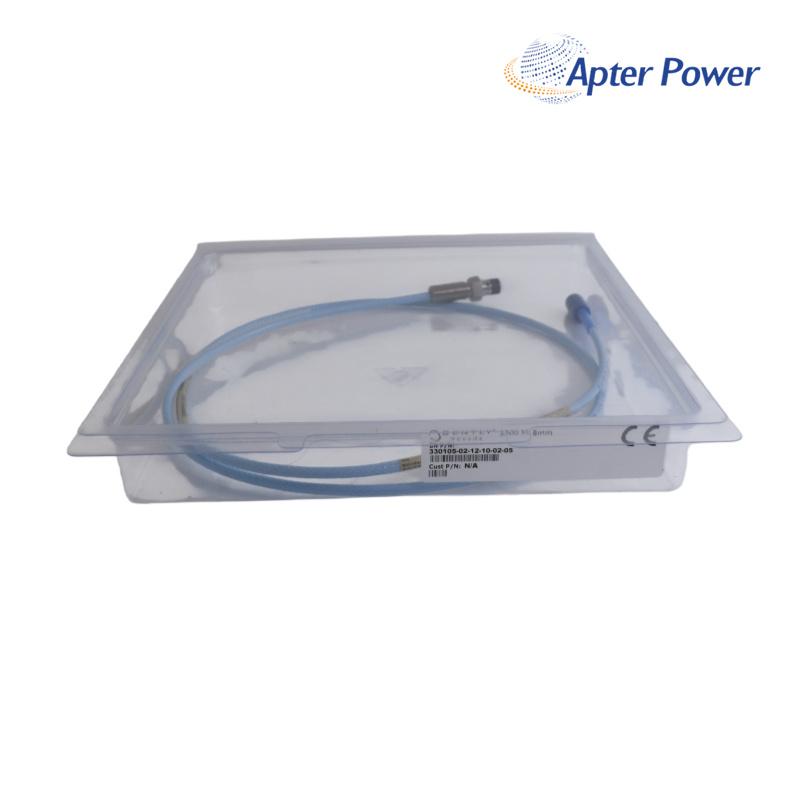

Capture the complete nameplate, reverse-mount hardware, installed depth, connector and both downstream component labels.
Complete labels and order fields are checked before quotation.
Probe, cable, rack and monitoring roles are reviewed together.
Commercial terms, documents and delivery are confirmed in writing.
Coverage begins on the shipment date unless the confirmed quotation states otherwise. Scope, exclusions and available remedy follow the written quotation and sales agreement.
Provide the complete 330105-02-12-10-02-05 label and order reference.
Add mounting, connector, rack and signal-chain photos.
Describe the symptom, operating state and first occurrence.
Include the applicable sales document and shipment date.
Share the complete product label and tell us whether you need a datasheet, user manual, wiring diagram or other technical document. Installed-system details can help us identify the most relevant available manufacturer material.
Our team will review the available documents and help match the closest useful file for 330105-02-12-10-02-05.
