Installed fit
One-metre system use is a primary decision point for this configuration.
Item NO.:
330105-02-12-10-02-00Order(MOQ):
1Goods Stock:
31Payment:
T/TLead Time：
In stockWeight:
0.06KGDimension:
1.8x1.8x112cmDescription:

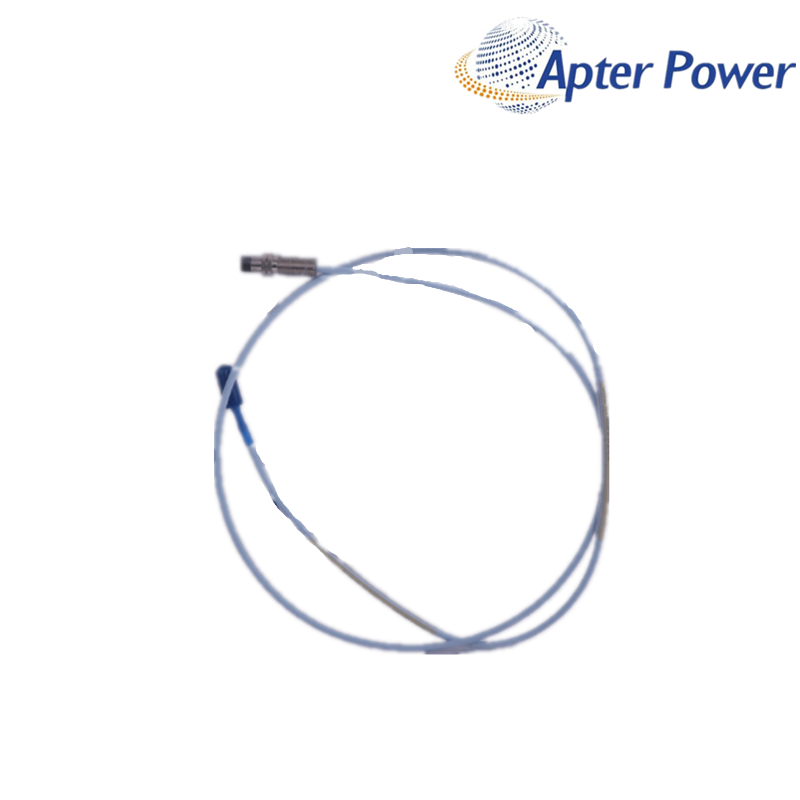

3300 XL 8 mm Reverse-Mount Proximity ProbePrice:
AskSend the full probe and Proximitor labels, mounting drawing, target details, required system length, quantity and destination. We support current, discontinued and difficult-to-source industrial parts.
330105-02-12-10-02-00 supports a short, joint-reduced measurement layout by combining a 3/8-24 UNF reverse-mount body with a one-metre integral lead. When used with the corresponding one-metre Proximitor Sensor arrangement, no extension cable is required between the probe and sensor.
330105-02-12-10-02-00 shifts installation attention from cable-length arithmetic to physical routing. The bracket must allow rear withdrawal, and the full lead needs a smooth protected path that reaches the Proximitor without tight coiling or strain at either end.
330105-02-12-10-02-00 can simplify maintenance inventories only when the installed channel is truly the one-metre configuration. Comparing the Proximitor label, mounting thread and target geometry before ordering prevents a physically similar probe from creating an invalid system.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL 8 mm Reverse-Mount Proximity Probe |
| Ordering family | 330105 |
| Mounting style | Reverse mount |
| Mounting thread | 3/8-24 UNF |
| Integral lead length | 1.0 m |
| Connector option | Miniature coaxial ClickLoc connector |
| Agency approval option | Not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
One-metre system use is a primary decision point for this configuration.
No-extension layout is a primary decision point for this configuration.
Reverse-mount withdrawal is a primary decision point for this configuration.
Use the one-metre probe with the corresponding one-metre Proximitor Sensor arrangement; do not add an extension cable simply because the connector fits.
After replacement, establish the mechanical gap and stable connection before comparing the channel output or considering a monitor adjustment.
Compare the machine drawing, target, complete probe code, cable plan and Proximitor label. Stop before installation if the mounting geometry or total system length cannot be confirmed.
Yes, when the selected one-metre Proximitor Sensor arrangement and physical route are suitable. Keep the integral lead protected and do not add cable merely to relocate the connection.
It should show the 3/8-24 UNF reverse-mount interface, target reach, rear removal path and full one-metre cable route. Any obstruction at the bracket or connector should be resolved before ordering.
The operating gap or target geometry may differ from the previous installation, or the ClickLoc joint may not be fully seated. Correct the physical installation before treating the bias as an electronic setting problem.
No. Route and support the lead with smooth bends and without tension at the probe or connector. A tight coil or trapped cable can complicate service and damage the assembly.
Stop if the Proximitor identity, mechanical gap, target condition or connector seating cannot be confirmed. Changing scaling before those conditions are resolved can conceal an installation error.
Request photographs of the complete label and connector, then compare the full code, lead length, thread, quantity and installed Proximitor details with the RFQ.
Exact-model review for new original industrial automation parts.
Complete nameplate and system details help us check the required configuration before quotation.
Our team assists with delivery coordination, incoming identity checks and post-purchase questions.
Purchase protection
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Need warranty support for 330105-02-12-10-02-00? Send the order reference, full nameplate photograph and a clear description of the issue.
