Installed fit
Full-code identity control is a primary decision point for this configuration.
Item NO.:
330105-02-12-05-02-CNOrder(MOQ):
1Goods Stock:
31Payment:
T/TLead Time：
In stockWeight:
0.04KGDimension:
58.5x1.2x1cmDescription:

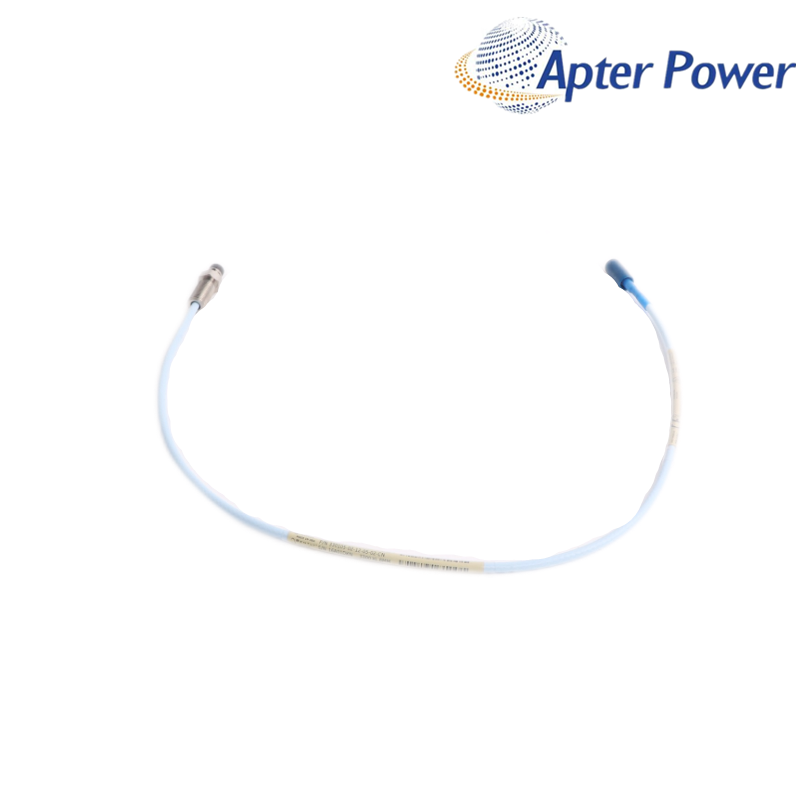

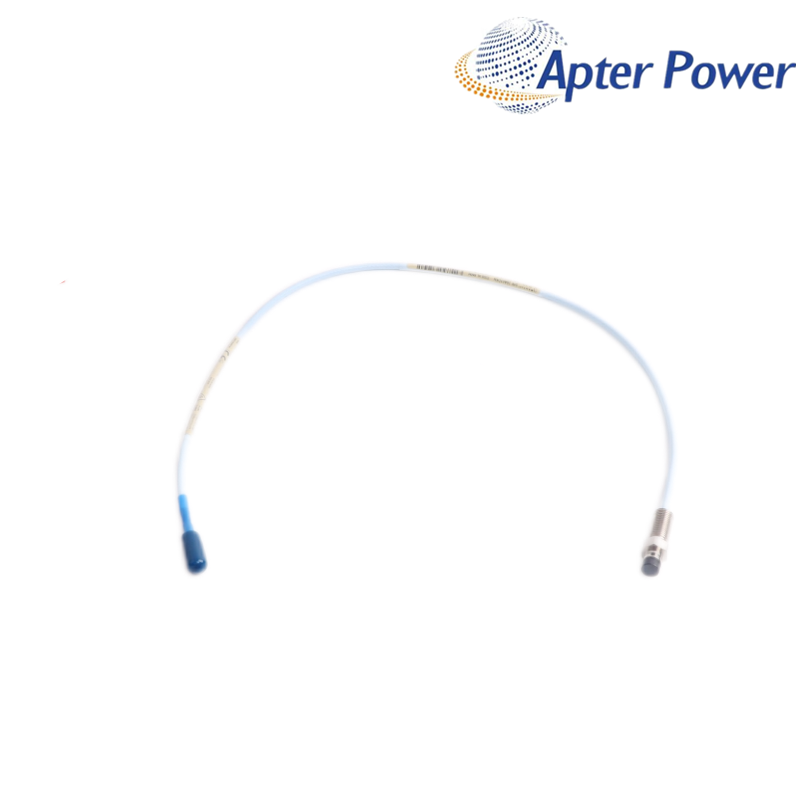

3300 XL 8 mm Reverse-Mount Proximity ProbePrice:
AskSend the full probe and Proximitor labels, mounting drawing, target details, required system length, quantity and destination. We support current, discontinued and difficult-to-source industrial parts.
330105-02-12-05-02-CN keeps the complete -CN order identity attached to a 3/8-24 UNF reverse-mount probe with a half-metre lead. That full string is useful during quotation and receipt because visually similar 330105 configurations can differ in lead length, connector and ordering suffix.
330105-02-12-05-02-CN places the cable junction near the machine, so the installation needs rear access plus a supported route from the short lead to the selected extension cable. A cramped bracket may accept the thread yet still leave no safe space to disconnect the ClickLoc joint.
330105-02-12-05-02-CN should be accepted from the delivered label and the matched probe-cable-Proximitor chain, not from an assumed meaning for -CN. Preserving the full code improves procurement control without turning the suffix into an unsupported technical claim.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL 8 mm Reverse-Mount Proximity Probe |
| Ordering family | 330105 |
| Mounting style | Reverse mount |
| Mounting thread | 3/8-24 UNF |
| Integral lead length | 0.5 m |
| Connector option | Miniature coaxial ClickLoc connector |
| Order-code identity | Complete -CN suffix preserved; no additional technical distinction inferred |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Full-code identity control is a primary decision point for this configuration.
Half-metre routing is a primary decision point for this configuration.
Rear-mount service access is a primary decision point for this configuration.
Keep the complete -CN identity through quotation, order acknowledgement and incoming inspection so the supplied label matches the requested configuration.
Plan rear removal access and complete the 0.5 m lead with the correct extension cable for the installed Proximitor Sensor system length.
Compare the machine drawing, target, complete probe code, cable plan and Proximitor label. Stop before installation if the mounting geometry or total system length cannot be confirmed.
Use the complete code exactly as shown and request a clear nameplate photograph before shipment. Do not accept a shortened base number as proof that the supplied configuration is identical.
Only when that extension cable completes the supported total length for the installed Proximitor Sensor. Select the chain from all component labels, not from the desired physical reach alone.
Insufficient space for the 3/8-24 UNF reverse-mount hardware or cable exit can trap the probe behind the bracket. Check the removal path before the machine is opened.
The suffix is retained as order identity and does not by itself establish a different electrical setting. Use the actual probe, extension-cable and Proximitor labels when confirming the measurement chain.
Inspect the ClickLoc joint for alignment, contamination, damage and complete seating, then check the probe gap. Do not change monitor configuration until the physical connection is stable.
Send the full code, label photographs, 3/8-24 UNF mounting confirmation, Proximitor identity, required system length, quantity and destination. That information supports an exact-code quotation without inventing meaning for the suffix.
Exact-model review for new original industrial automation parts.
Complete nameplate and system details help us check the required configuration before quotation.
Our team assists with delivery coordination, incoming identity checks and post-purchase questions.
Purchase protection
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Need warranty support for 330105-02-12-05-02-CN? Send the order reference, full nameplate photograph and a clear description of the issue.
Product names and trademarks remain the property of their respective owners. Apter is an independent supplier.
Document access
No verified model-specific English PDF is currently linked to this page. Send the complete model and installed-system details so the applicable manufacturer document can be checked before procurement, installation or compliance decisions.
