Selection
- Confirm the 3/8-24 reverse-mount thread, fixed 0.2/1.2 in geometry and the full suffix before ordering.
- Match the probe, extension cable and Proximitor Sensor so total electrical length remains correct.
A compact 3/8-24 reverse-mount probe with a 0.5 m lead, standard ClickLoc connector and multiple approval option for matched 3300 XL 8 mm systems.
Item NO.:
330105-02-12-05-02-05Order(MOQ):
1Weight:
0.05kgDimension:
1.2x1.1x66cmDescription:

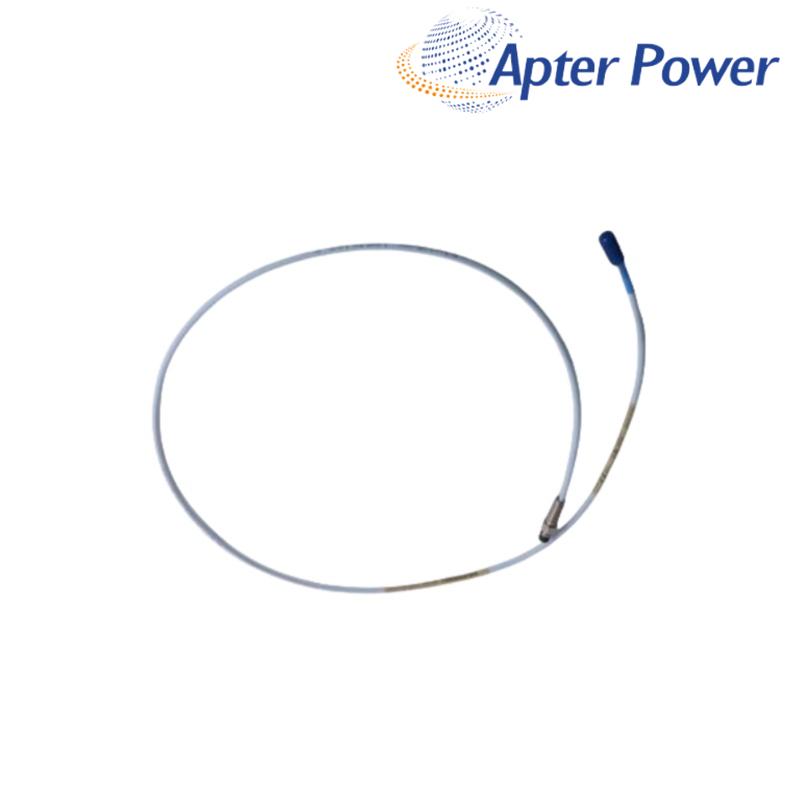

3300 XL 8 mm Reverse-Mount Proximity ProbeA compact 3/8-24 reverse-mount probe with a 0.5 m lead, standard ClickLoc connector and multiple approval option for matched 3300 XL 8 mm systems.
Built for installations where the probe is secured from the rear of the mounting surface, this compact 3300 XL 8 mm probe helps keep the sensing tip close to a rotating shaft while leaving the cable path behind the bracket or bearing housing. Using the complete 330105-02-12-05-02-05 designation keeps that reverse-mount geometry distinct from standard-mount probes.
The fixed 0.2 in unthreaded section and 1.2 in case make mechanical reach predictable. A 0.5 m integral lead terminates in a miniature ClickLoc connector without a protector, while option 05 identifies the multiple-approval configuration shown in the official ordering table. Together, those options define 330105-02-12-05-02-05 rather than a generic 330105 family item.
Reliable replacement work still depends on the full measurement chain. Confirm the installed Proximitor Sensor, any extension cable, target material and total system length before changing the probe, then record the new gap voltage and machine-state baseline during commissioning. Keeping 330105-02-12-05-02-05 on the commissioning record prevents ambiguity during the next outage.
It suits brackets and bearing housings where the sensing tip is positioned from the machine side and the probe is retained from the rear. Check tool access and cable exit space before installation.
Record the insertion depth, exposed thread, gap voltage, cable route and machine state. Those values make it much easier to reproduce the original geometry and diagnose any change.
Treat the 0.5 m integral lead as one part of the calibrated chain, then select the extension cable and Proximitor Sensor for the required total system length. Arbitrary added cable changes the response.
Common causes include a changed gap, damaged or dirty target surface, loose ClickLoc connection, wrong extension cable, or a sensor calibrated for a different system length.
Verify the complete nameplate and approval markings on the supplied unit against the project classification; the order code alone is not a substitute for incoming inspection.
Support the lead close to the probe, maintain the 25.4 mm minimum bend radius and keep side load away from the miniature ClickLoc joint. A relaxed cable route reduces intermittent connection faults.
Products supplied by ApterPLC are covered for 12 months under the applicable sales terms. Keep the complete unit nameplate and transaction record so the exact product can be identified during technical support.
The attached selection contains the official description, performance data, environmental limits, ordering codes and product drawings relevant to 330105-02-12-05-02-05. Unrelated catalog pages have been removed.
