Installed fit
FluidLoc protected connection is a primary decision point for this configuration.
Item NO.:
330104-19-25-10-11-05Order(MOQ):
1Goods Stock:
40Payment:
T/TLead Time：
In stockWeight:
0.3KGDimension:
30.5x33x4.5cmDescription:

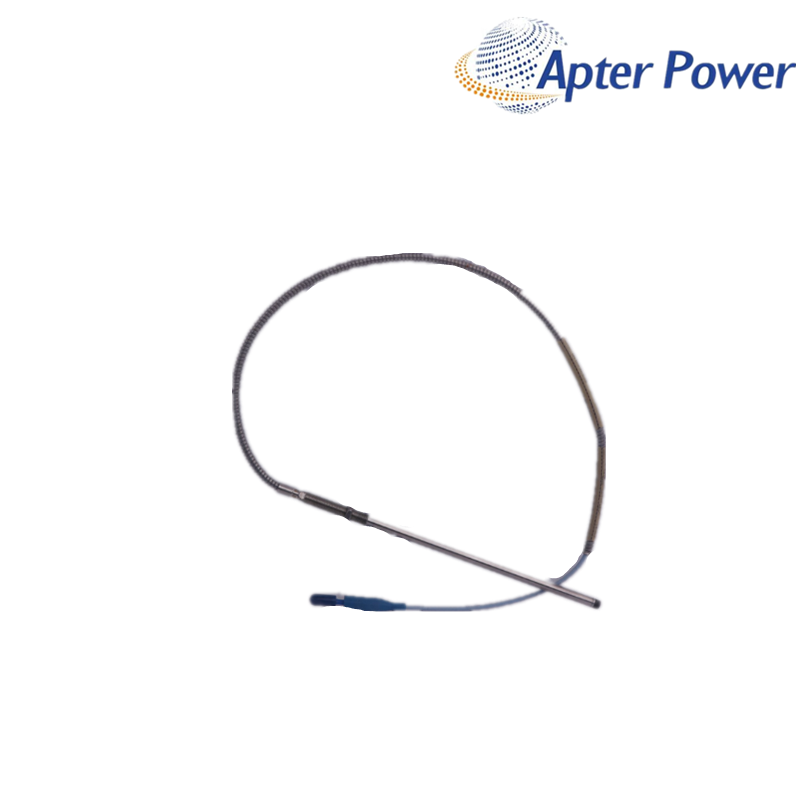

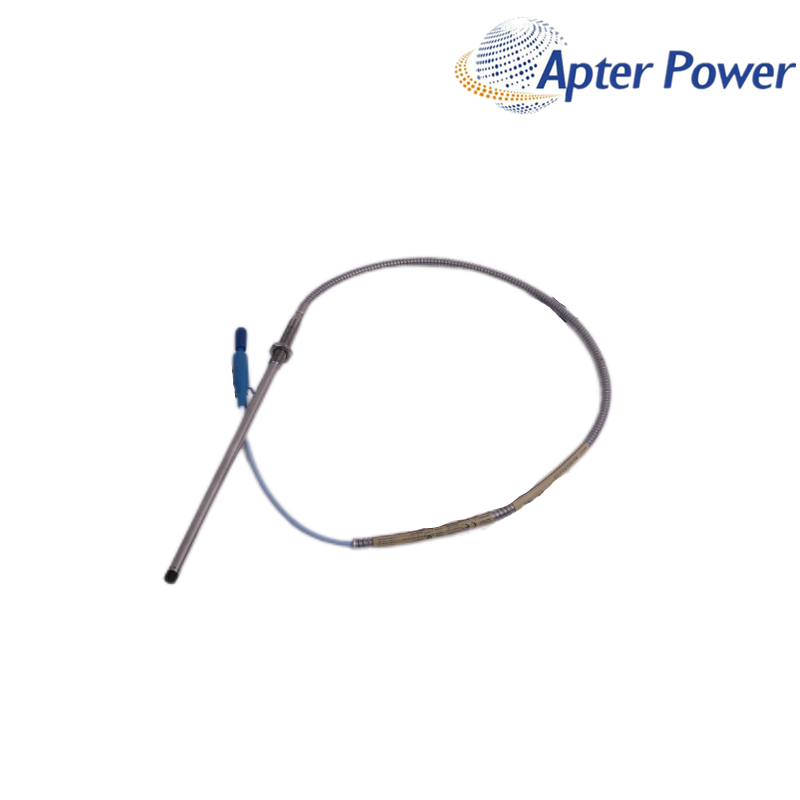

3300 XL 8 mm Proximity ProbePrice:
AskSend the full probe and Proximitor labels, mounting drawing, target details, required system length, quantity and destination. We support current, discontinued and difficult-to-source industrial parts.
330104-19-25-10-11-05 combines the longest metric case option in this batch with armor, FluidLoc cable and a protected ClickLoc connection. The 190 mm unthreaded reach and 250 mm case are intended for a defined machine geometry, not for selection by thread size alone.
330104-19-25-10-11-05 changes the space needed behind the bracket because the connector protector and cable exit need a straight, supported service zone. This matters when a housing wall, conduit entry or existing clamp sits close to the probe body and could load the protected joint.
330104-19-25-10-11-05 also carries the CSA, ATEX and IECEx ordering option, giving compliance teams a clear item to compare with the delivered marking and project conditions. Mechanical fit, approval scope and cable protection therefore need to be closed as three separate decisions before release.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL 8 mm Proximity Probe |
| Ordering family | 330104 |
| Mounting thread | M10 × 1 |
| Probe construction | Armored probe |
| Unthreaded length | 190 mm |
| Overall case length | 250 mm |
| Total length | 1.0 m |
| Connector and cable option | Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable |
| Agency approval option | CSA, ATEX and IECEx approvals |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
FluidLoc protected connection is a primary decision point for this configuration.
250 mm case clearance is a primary decision point for this configuration.
Approval-marking review is a primary decision point for this configuration.
Use the delivered approval marking and applicable installation conditions for the project review; the ordering suffix alone does not complete the hazardous-area assessment.
Allow a straight, supported section for the FluidLoc cable and connector protector, with enough space to disconnect the probe without twisting the armor.
Compare the machine drawing, target, complete probe code, cable plan and Proximitor label. Stop before installation if the mounting geometry or total system length cannot be confirmed.
Match the delivered CSA, ATEX or IECEx marking and its installation conditions to the project zone, temperature and enclosure requirements. Stop approval if the marking or conditions are not available for the supplied unit.
Not automatically. The 250 mm case and connector protector require rear withdrawal and straight-cable clearance; compare both dimensions with the housing drawing before ordering.
Keep the protected ClickLoc joint clean, aligned and free of bending or pulling loads. Support the armored cable so the protector is not forced against the housing or conduit entry.
An incorrect gap, target condition, connector seating or total electrical length must be resolved before monitor settings are changed. Continuing with an unexplained reading can hide a mechanical or connection error.
No. Select the official extension-cable length and construction that complete the total length required by the chosen Proximitor Sensor, including the correct FluidLoc connection arrangement.
Send the full code, approval requirement, bracket and housing drawings, installed Proximitor label, connector photographs, quantity and destination. This lets the long case, FluidLoc option and protected joint be checked together.
Exact-model review for new original industrial automation parts.
Complete nameplate and system details help us check the required configuration before quotation.
Our team assists with delivery coordination, incoming identity checks and post-purchase questions.
Purchase protection
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Need warranty support for 330104-19-25-10-11-05? Send the order reference, full nameplate photograph and a clear description of the issue.
Product names and trademarks remain the property of their respective owners. Apter is an independent supplier.
Document access
No verified model-specific English PDF is currently linked to this page. Send the complete model and installed-system details so the applicable manufacturer document can be checked before procurement, installation or compliance decisions.
