Installed fit
Long-case bracket reach is a primary decision point for this configuration.
Item NO.:
330104-15-23-10-02-00Order(MOQ):
1Goods Stock:
41Payment:
T/TLead Time：
In stockWeight:
0.3KGDimension:
30.5x33x4.5cmDescription:
3300 XL 8 mm Proximity ProbePrice:
AskSend the full probe and Proximitor labels, mounting drawing, target details, required system length, quantity and destination. We support current, discontinued and difficult-to-source industrial parts.

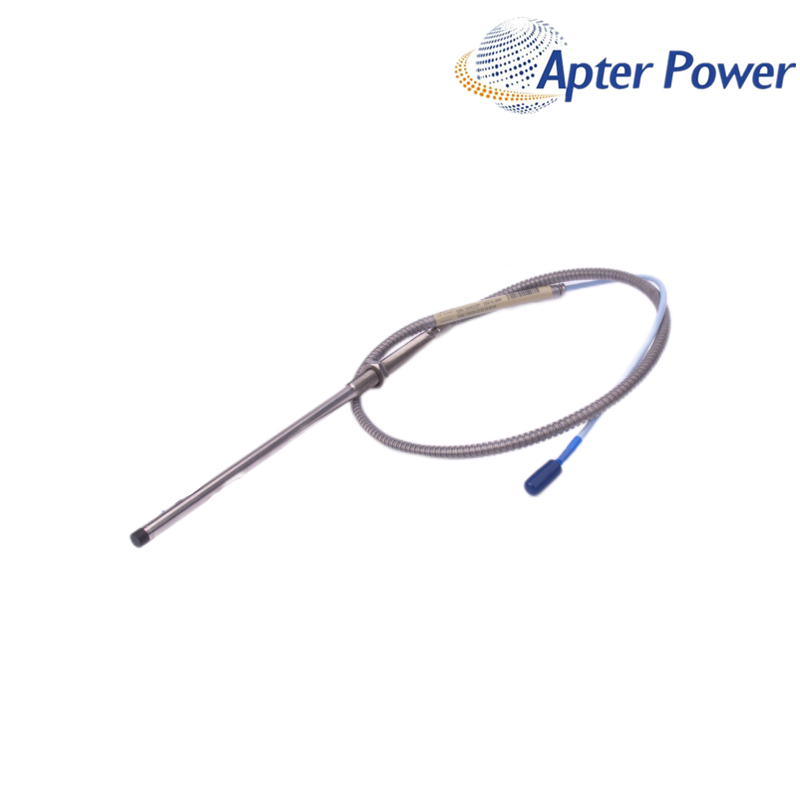

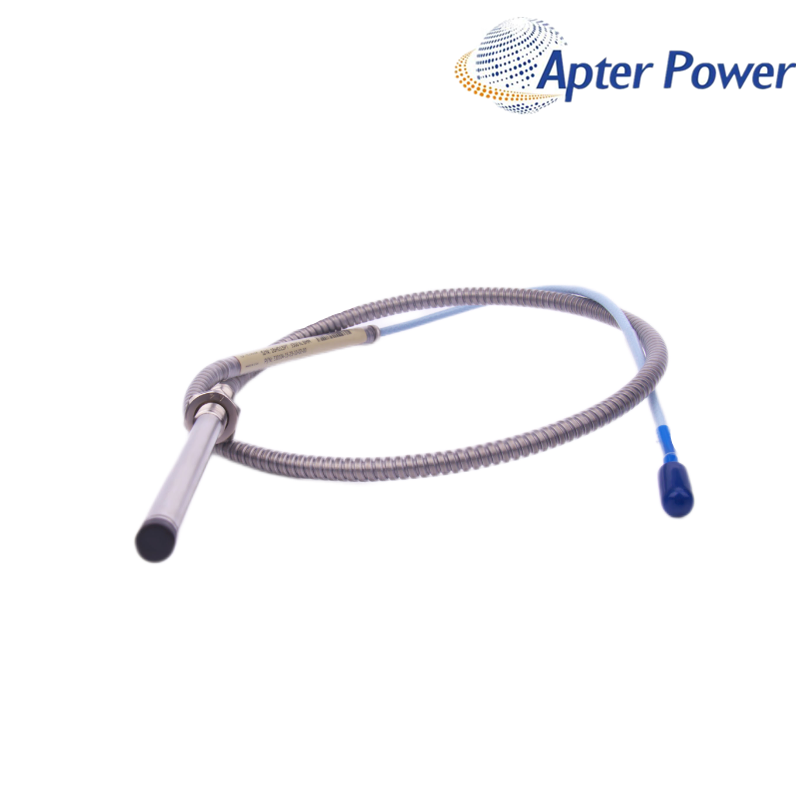

330104-15-23-10-02-00 addresses long-reach installations in the 3300 XL 8 mm system with an armored M10 × 1 body, a 150 mm unthreaded section and a 230 mm overall case. Those dimensions make it a deliberate mechanical choice rather than a generic 330104 replacement.
330104-15-23-10-02-00 moves the service decision to the machine drawing: bracket depth, target position and withdrawal space must accommodate the extended body. Its one-metre lead and armored construction also affect where the ClickLoc joint can be supported and accessed during maintenance.
330104-15-23-10-02-00 becomes a valid measurement-chain component only when the installed Proximitor Sensor and any required extension cable produce the specified system length. For a shutdown purchase, the value lies in matching the long geometry and complete electrical chain before the housing is opened.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL 8 mm Proximity Probe |
| Ordering family | 330104 |
| Mounting thread | M10 × 1 |
| Probe construction | Armored probe |
| Unthreaded length | 150 mm |
| Overall case length | 230 mm |
| Total length | 1.0 m |
| Connector and cable option | Miniature coaxial ClickLoc connector, standard cable |
| Agency approval option | Not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Long-case bracket reach is a primary decision point for this configuration.
Armored lead routing is a primary decision point for this configuration.
One-metre system completion is a primary decision point for this configuration.
Use the turbine or machine drawing to confirm thread engagement, target reach and withdrawal clearance for the 230 mm case before the outage.
If the reading moves after replacement, restore the original gap and inspect the ClickLoc seating, target condition and cable routing before changing monitor settings.
Compare the machine drawing, target, complete probe code, cable plan and Proximitor label. Stop before installation if the mounting geometry or total system length cannot be confirmed.
Only if the bracket drawing provides the required reach, thread engagement and withdrawal space for the 230 mm case. Stop the replacement if the target face or rear clearance cannot be matched.
Support the armor independently and keep the ClickLoc joint out of bends, pulling loads and pinch points. The armor protects the cable, but it does not make the connector a structural anchor.
A changed probe gap, disturbed target surface, incompletely seated ClickLoc connection or mismatched system length can move the reading. Restore the mechanical gap and connection first; do not compensate by changing monitor scaling.
Use only the extension-cable length that completes the manufacturer-supported total system length for the selected Proximitor Sensor. Do not add an arbitrary coaxial cable or treat connector fit as proof of compatibility.
Check bend space, armor support, connector access and the complete probe-to-Proximitor path. Replace the routing plan if it would force the long case or armored lead against hot, moving or sharp surfaces.
Provide the complete code, installed Proximitor label, bracket drawing, target reach, required quantity and clear photographs of both connectors. Those details separate the long armored configuration from shorter 330104 options.
