Selection
- Match the complete part number, 130 mm unthreaded length, 200 mm case length and armored M10 x 1 geometry.
- Confirm that the installed system uses a 5 m Proximitor Sensor before selecting this 5 m integral-lead probe.
Item NO.:
330104-13-20-50-02-00Order(MOQ):
1Goods Stock:
26Payment:
T/TLead Time：
In stockWeight:
0.08KGDimension:
24.5x21x3.6cmDescription:
Proximity ProbesPrice:

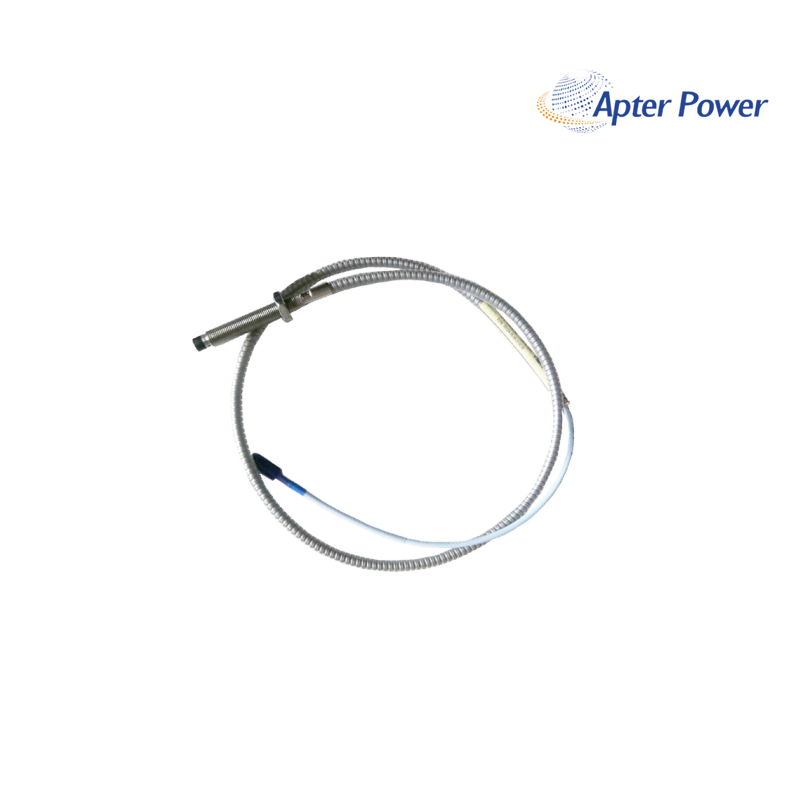

Ask330104-13-20-50-02-00 is a standard-mount, M10 x 1 armored probe for a matched Bently Nevada 3300 XL 8 mm proximity transducer system. Its ordering code specifies 130 mm of unthreaded length and a 200 mm overall case length.
330104-13-20-50-02-00 is a standard-mount, M10 x 1 armored probe for a matched Bently Nevada 3300 XL 8 mm proximity transducer system. Its ordering code specifies 130 mm of unthreaded length and a 200 mm overall case length.
330104-13-20-50-02-00 has a 5.0 m integral lead and a miniature ClickLoc coaxial connector on standard cable without a connector protector. Code 00 means that an agency approval option is not required for this configuration.
330104-13-20-50-02-00 must be checked against the installed machine geometry and the complete electrical chain. The 5 m lead belongs with a 5 m Proximitor Sensor, and the target, probe gap and channel configuration remain part of system acceptance.
It is appropriate only when the bracket and machine geometry accept a 130 mm unthreaded section and a 200 mm overall case. The M10 x 1 thread, insertion depth and target clearance should be measured from the installed arrangement.
The 200 mm case must place the tip at the required target location without forcing excessive thread engagement. For the M10 x 1 case, the official limit is 15 mm of engaged thread.
Not as a simple length addition. Its integral lead is already 5.0 m and is intended for a 5 m Proximitor Sensor, so an extra extension cable would change the documented system-length architecture.
The armored lead still needs a minimum 25.4 mm bend radius, and the ClickLoc connection should not carry pulling or side load. A supported route helps preserve connector seating and cable continuity.
Compare the installed depth, target surface, probe gap and case seating with the previous accepted condition. These mechanical differences should be resolved before attributing the change to the electrical channel.
A useful record includes the 130 mm unthreaded reach, 200 mm case, M10 x 1 mount, 5 m Proximitor length, ClickLoc connection and target material. That combination prevents a same-family but wrong-geometry order.
The supplied product is covered for 12 months under ApterPLC sales terms. Keep the complete product label, original packaging and transaction record so the exact unit can be identified quickly if support is needed.
Use this selected official Bently Nevada document to review the ordering structure, configuration boundaries, interfaces, installation details and technical limits that apply to 330104-13-20-50-02-00.
|
