PROBEPrice:
AskAn armored M10 x 1 probe with a 100 mm unthreaded section, 200 mm case, 1.0 m standard lead and multiple approvals.

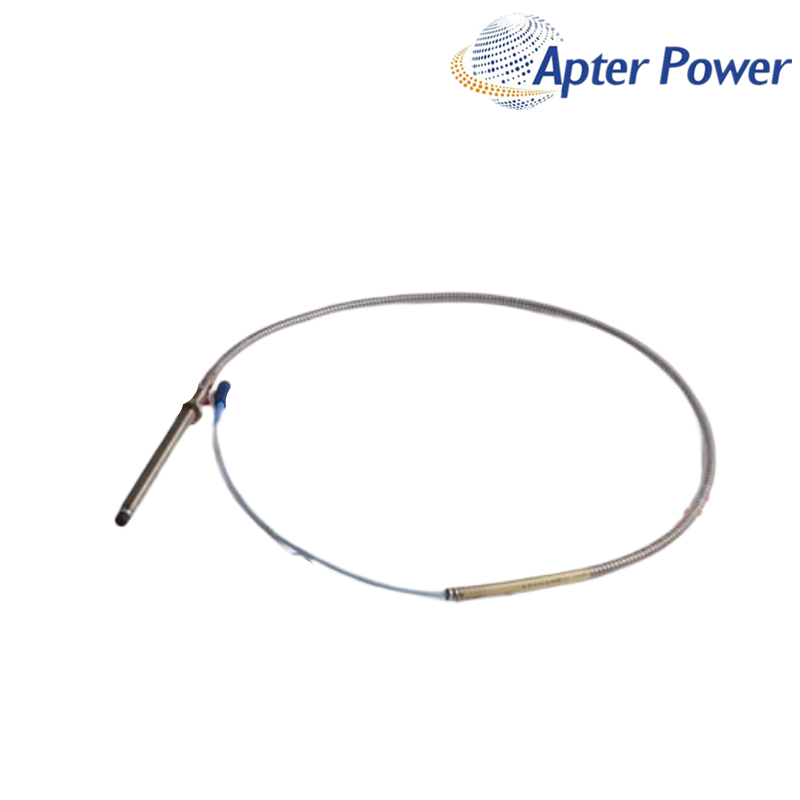

330104-10-20-10-02-05 combines a 100 mm unthreaded section with a 200 mm M10 x 1 case. The long smooth reach lets the sensing end pass through a deep bracket or housing before the mounting threads engage.
The 1.0 m armored lead on 330104-10-20-10-02-05 uses the standard miniature ClickLoc cable arrangement without a connector protector. The extension cable must complete the total electrical length specified by the connected 3300 XL Proximitor Sensor.
Option 05 is the multiple-approval execution for 330104-10-20-10-02-05. The long mechanical geometry, armored route and applicable certificates should remain together in the purchase record because each changes a different part of the installation decision.
The mounting threads begin after the 100 mm smooth passage.
The 200 mm case needs straight service clearance for removal.
Option 05 should remain associated with the supplied approval package.
The 100 mm unthreaded section of 330104-10-20-10-02-05 places the thread start halfway along its 200 mm case. This is a deliberate long-reach geometry; a full-thread probe of the same overall length can mount differently and position the sensing tip incorrectly.
| MODEL-RELEVANT TECHNICAL DATA | |
|---|---|
| Manufacturer | Bently Nevada |
| Product family | 3300 XL 8 mm proximity transducer system |
| Component | Armored long-reach proximity probe |
| Probe thread | M10 x 1 |
| Unthreaded length | 100 mm |
| Overall case length | 200 mm |
| Total lead length | 1.0 m |
| Connector / cable | Miniature ClickLoc; standard cable |
| Cable protection | Flexible stainless-steel armor |
| Agency option | 05 - multiple approvals |
| SUPPLY & LOGISTICS | |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
The first 100 mm is smooth, so the bracket must allow that section to pass before the M10 x 1 threads can engage.
Plan for the 200 mm case plus connector and armored-lead handling space so the probe can be withdrawn without bending.
No. Option 02 is the standard ClickLoc cable arrangement without a protector.
Use a cable length that combines with the 1.0 m probe lead to equal the connected Proximitor Sensor requirement.
It is the published multiple-approval execution; the supplied certificate set should be matched to the installation.
Record bracket depth, smooth-section clearance, thread engagement, target position, cable route and removal space.
Bracket depth, target position, withdrawal space and the armored-lead route determine whether this geometry suits the installed machine.
Customers may type the same model with different spacing, punctuation or brand wording.
These frequently confused searches are not interchangeable with 330104-10-20-10-02-05. Confirm the complete nameplate before quotation.
