M10 × 1, armored
Item NO.:
330104-07-12-10-02-CNOrder(MOQ):
1Goods Stock:
12Payment:
T/TLead Time：
In stockWeight:
1.16KGDimension:
2x18.7x12.8cmDescription:
3300 XL 8 MM ARMORED PROXIMITY PROBEPrice:
Ask
Metric armored probe for matched shaft-vibration and position measurement systems.

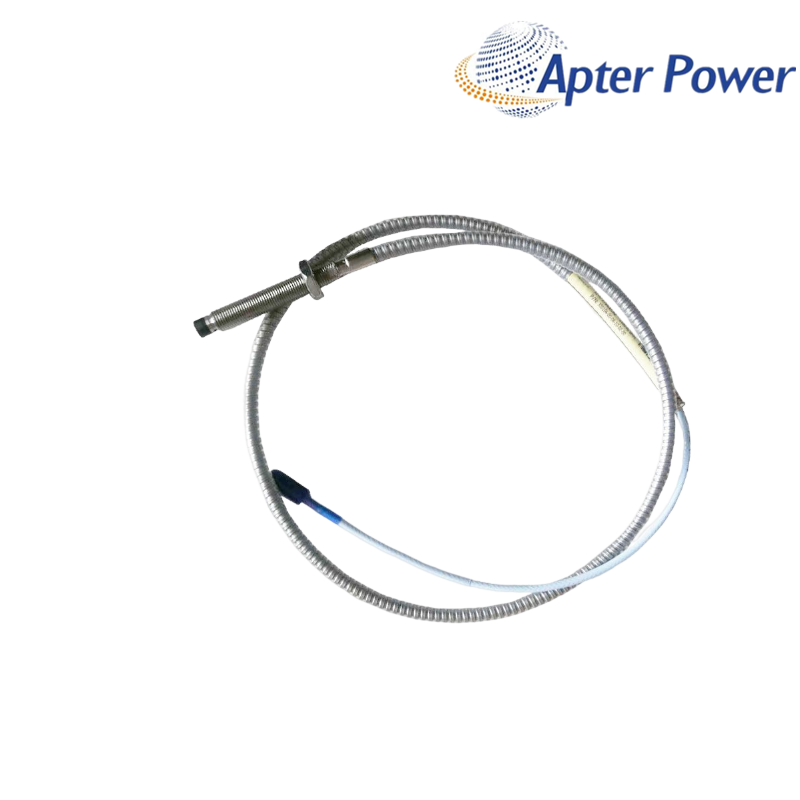

Bently Nevada 330104-07-12-10-02-CN belongs to the 3300 XL 8 mm Proximity Transducer System. Metric armored probe for matched shaft-vibration and position measurement systems.
M10 × 1, armored
70 mm unthreaded
120 mm case
1.0 m total lead
Standard cable
Verify complete label
| Case thread | M10 × 1 |
|---|---|
| Cable armor | Stainless-steel armor |
| Unthreaded length | 70 mm |
| Overall case length | 120 mm |
| Total lead length | 1.0 m |
| Connector / cable | Miniature coaxial ClickLoc; standard cable |
| Linear range | 2.0 mm (80 mil) family range |
| Sensitivity | 7.87 V/mm (200 mV/mil) nominal |
| Probe operating temperature | -51 to +177 °C |
| Minimum bend radius | 25.4 mm |
| Approval suffix | CN — confirm from nameplate and supplied documents |
| Current backend stock | 12 |
| Current backend weight | 1.16KG |
| Current backend dimensions | 2x18.7x12.8cm |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Capture the installed identity and mechanical context before disconnection.
Compare the exact family, length, mounting and connector details.
Review the receiving system, scale and commissioning response.
Include every order-code segment, manufacturer nameplate and approval marking.
Show the connected probe, cable, sensor, transmitter, rack module and receiving input as applicable.
Current backend stock, packed weight and dimensions remain unchanged until new warehouse evidence is supplied.
Verify the M10 × 1 thread, 70 mm unthreaded length and 120 mm case length against the installed bracket and target position before removal.
Use the stainless-steel armor for mechanical protection without forcing tight bends. Maintain at least the 25.4 mm bend radius and keep the connector free of side load.
Confirm the 3300 XL 8 mm matched chain and total electrical length, inspect the ClickLoc connection, then verify probe gap and channel baseline under the plant procedure.
Do not select by thread or appearance alone. Compare armor, 70 mm unthreaded length, 120 mm case, 1.0 m lead, cable option and the complete approval suffix.
Send the complete nameplate and request the offered approval or regional document set. The public ordering table confirms the mechanical code but does not decode CN.
Complete-label comparison before quotation.
Support for maintenance and project spares.
Quotation, delivery and after-sales communication.
Coverage begins on the shipment date unless the confirmed quotation states otherwise. Scope and available remedy follow the confirmed quotation and sales agreement.
Keep the product label and complete order reference.
Add connector or terminal photos and associated signal-chain labels.
Describe the observed symptom and operating context clearly.
Baker Hughes 3300 XL 8 mm Datasheet 141194 provides the family specifications, ordering table and installation context used for this review.
Exact-version note: 70 mm unthreaded · 120 mm case · 1.0 m lead · standard ClickLoc cable · CN suffix is label-controlled
