The 60 mm smooth section must pass through the bracket before thread engagement begins.
Item NO.:
330104-06-14-10-02-00Order(MOQ):
1Goods Stock:
13Payment:
T/TLead Time：
In stockWeight:
0.75KGDimension:
2.6x25.2x24.1cmDescription:
PROXIMITY TRANSDUCERPrice:

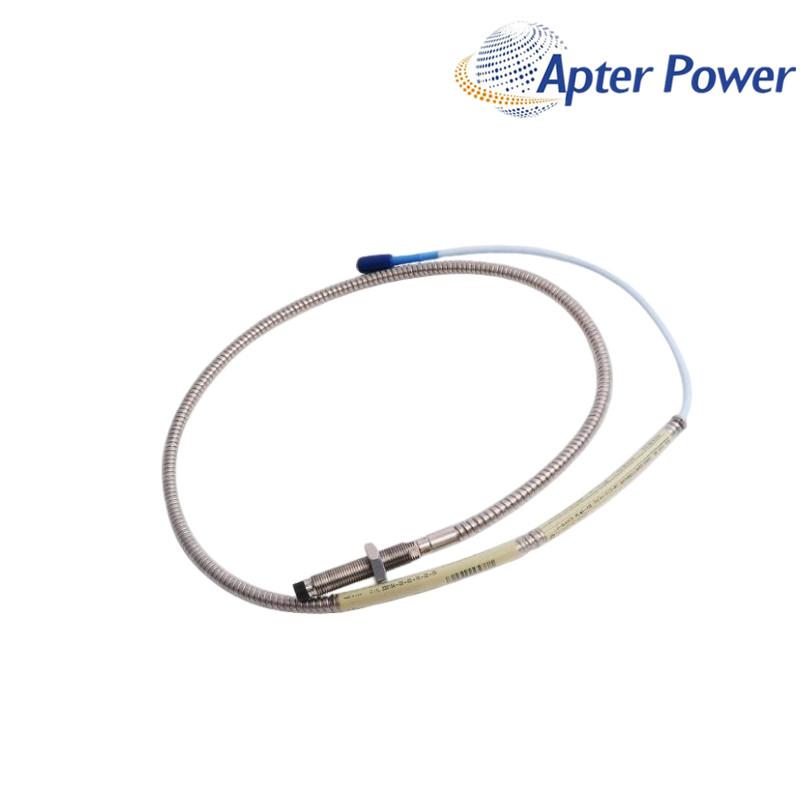

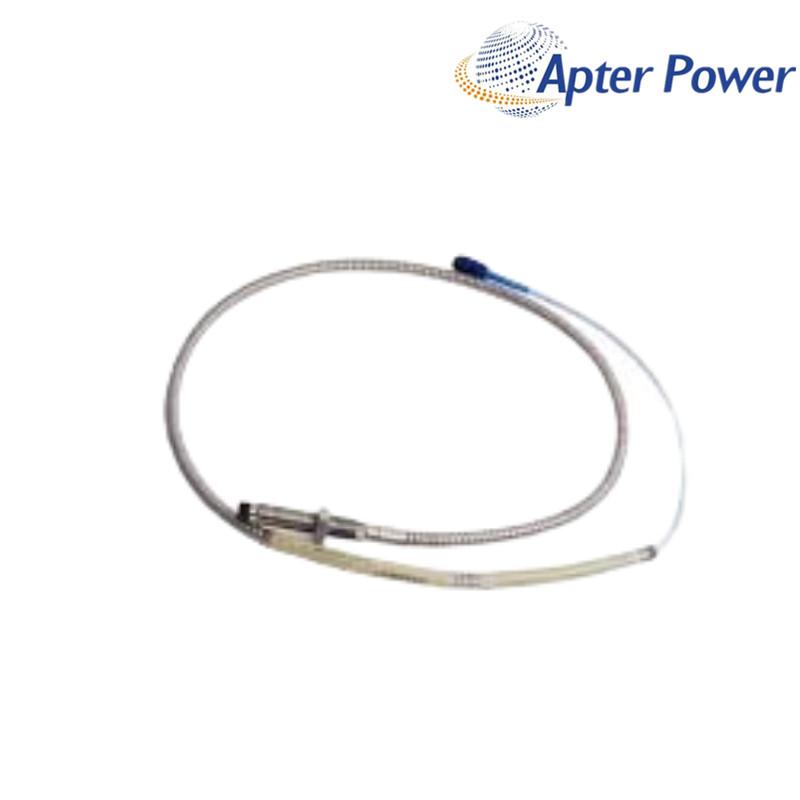

AskAn armored M10 × 1 probe with a 60 mm smooth section, 140 mm case and 1.0 m lead.
330104-06-14-10-02-00 combines the armored 330104 probe construction with an M10 × 1 case. The 06 field gives a 60 mm unthreaded section and the 14 field gives a 140 mm overall case length.
The 1.0 m lead is part of the calibrated 3300 XL 8 mm signal chain. Option 02 supplies the standard miniature ClickLoc connection without a connector protector, so the installed extension cable must complete the required system length.
The final 00 is the published no-approval-required option. The long smooth section, usable thread engagement and withdrawal path are the key mechanical checks for this exact configuration.
The 60 mm smooth section must pass through the bracket before thread engagement begins.
The 1.0 m probe lead counts toward the total system length required by the sensor.
Check that the 140 mm case can be installed and withdrawn without interference.
| Manufacturer | Bently Nevada |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Probe construction | Armored metric probe |
| Thread | M10 × 1 |
| Unthreaded length | 60 mm |
| Overall case length | 140 mm |
| Total lead length | 1.0 m |
| Connector / cable option | Standard ClickLoc; no connector protector |
| Approval option | 00 — not required |
| Matched-system linear range | 2.0 mm (80 mils) |
| Nominal average scale factor | 7.87 V/mm (200 mV/mil) |
| Matched-system frequency response | 0 to 10 kHz, +0/-3 dB |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 303 or 304 stainless steel |
| Probe cable | 75 Ω triaxial; FEP insulated |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
It delays where thread engagement can begin and changes the sensing-tip position in the bracket.
The published case code 14 identifies a 140 mm overall case length.
Choose the cable that combines with the 1.0 m lead to meet the Proximitor Sensor system length.
No. Option 02 is the standard ClickLoc connection without a protector.
Show the full label, smooth section, bracket depth, cable route and connected sensor label.
Share the exact nameplate, mounting or route dimensions, connected component labels and approval documents. ApterPLC can then prepare a model-focused quotation without treating a similar connector or family name as proof of interchangeability.
ApterPLC provides a one-year warranty on this item, giving buyers a clear support path after delivery.
